1-794066-0
| Manufacturer | |
| Description | Conn Wire to Board PIN 12 POS 4.14mm Solder ST Thru-Hole .163" Centerline, 600 V, 9.5 A max. CONN HDR 12POS STR DUAL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 9.5A Headers & Wire Housings HEADER 12 POS TIN DUAL ROW Conn Power PIN 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port Conn Power PIN 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 124.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, THT, 4.14MM, 12WAY MINI-UNIVM-N-LHDRS,12PMINIUMNLHDRW/DHSNLF Pin header Pitch4.14 mm Poles 2 x 3 straight MATE-N-LOK Mini Universal, 1-794066-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 12P MINI UMNL HDR W/DH SN LF |
| Category |
Business
| Tradename | MATE-N-LOK | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
Electrical
| Voltage Rating | 600 V ac | Switch Function | Latched |
| Current Rating (Max) | 9.5A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | White | Pitch | 4.14 mm |
| Height | 14.25 mm | Weight | 0.02 |
| Diameter | Not Required mm | Packaging | Bulk |
| Row Spacing | 0.163" (4.14mm) | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Nickel | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon |
| Primary Material | InterconnectSystem | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 12 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 12 |
| Contact Finish Thickness | 150µin (3.81µm) | 1st Connector Mounting Type | :PCB |
Product Info
| Type | Wire to Board | Gender | PIN |
| Series | MATE-N-LOK | Features | Board Lock |
| CAD Drawing | 3D CAD Model | Manufacturer | MATE-N-LOK |
| Product Type | Headers | Number of Ports | 1 Port |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
770581-1
te connectivity / amp
Conn Housing M 12 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 12POS MINI UNIV-MATE Male Compact Power Connector Cable Mount,9.5A 600V ac/dc Pin & Socket Connectors 12P MINI UMNL PLUG Conn Housing M 12 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 124.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 12WAY Connector,SoftShell;12;600VAC;Plug;Double-Row;Nylon;Plug;White Pin housing Pitch4.14 mm Poles 2 x 6 Double row / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 770581-1, TE Connectivity TE Connectivity 线对线连接器 公, 电缆安装安装, 9.5A 600 V 交流/直流, -55 → +105 °C 12P MINI UMNL PLUG HSG
794198-1
te connectivity / amp

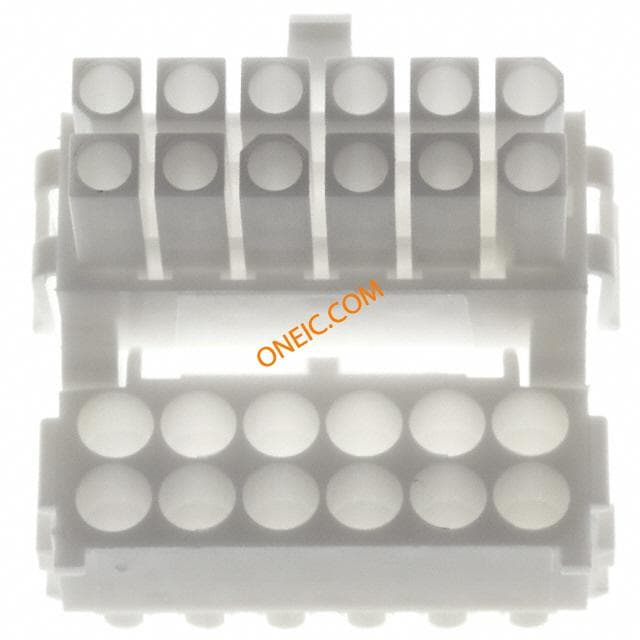

Conn Housing PL 12 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 12POS MINI UNIV-MATE 2 Housing,plug,mini Mate-n-lok,2 row,12Way Pin & Socket Connectors 12P MINI UMNL2 PLUG Conn Housing PL 12 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 124.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, 2ROW, 12WAY Housing,plug,miniMate-n-lok,2row,12Way TE Connectivity Mini-Universal MATE-N-LOK II 系列 2 行 4.14mm 节距 12 路 直 公 压接连接器外壳 12P MINI UMNL2 PLUG HSG DBLROW
