1-644875-0
| Manufacturer | |
| Description | Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 10POS R/A .100 TIN 10P MTA100 HDR ASSY F/L,SP BND 10P MTA100 HDR ASSY F/L,SP BND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Standard Pack | 1 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 250 | Voltage - Rated AC | 250 |
| Connector Impedance | 焊接 | Current Rating (Max) | 5 |
Mechanical
| Color | Natural | Pitch | 2.54 mm |
| Height | 10.03 mm [ .395 in ] | Length | 25.4 mm [ 1 in ] |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Termination | Solder |
| Contact Type | Male Pin | 2nd Connector | With |
| Contact Shape | Square | Housing Color | Natural |
| Mounting Type | Right Angle | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Contact Timing | Without |
| Fastening Type | Friction Lock | Mounting Style | 带有 |
| Number of Rows | 1 | Plating - Body | Tin |
| Rotation Angle | 34° | Shell Material | 摩擦锁 |
| Connector Usage | Header | Insert Material | 铜合金 |
| Locking Feature | Friction Lock | Contact Material | Copper Alloy |
| Housing Material | 聚酯 - GF | Mounting Feature | Without |
| Package Quantity | 1 | Panel Mount Type | Without |
| Termination Style | 插针 | Mating Orientation | Without |
| Number of Contacts | 10 | Termination Finish | 不带 |
| Number of Positions | 10 | Backshell Interrupts | Without |
| Compatible Shell Size | MTA .100 连接器组件 | Contact Length - Post | 电源 |
| Mounting Hole Diameter | 不带 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 2.54 [0.100] | Contact Length - Mating | 0.295" (7.49mm) |
| Termination Post Length | 7.49 mm [ .295 in ] | Contact Finish Thickness | 3.81 µm [ 150 µin ] |
| Small Diameter Recovered | No | Static Discharge Shielding | 不带 |
| Actuator Length, Right Angle | Front | Jacket (Insulation) Thickness | 1.27 µm, 50 µin |
Product Info
| Type | Wire to Board | Gender | HDR |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Printed Circuit Board |
| Number of Positions Loaded | All | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Similar Parts
4-644577-0
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers 10P MTA100 CONN ASSY BLK LF Headers & Wire Housings 10P MTA100 CONN ASSY BLK LF

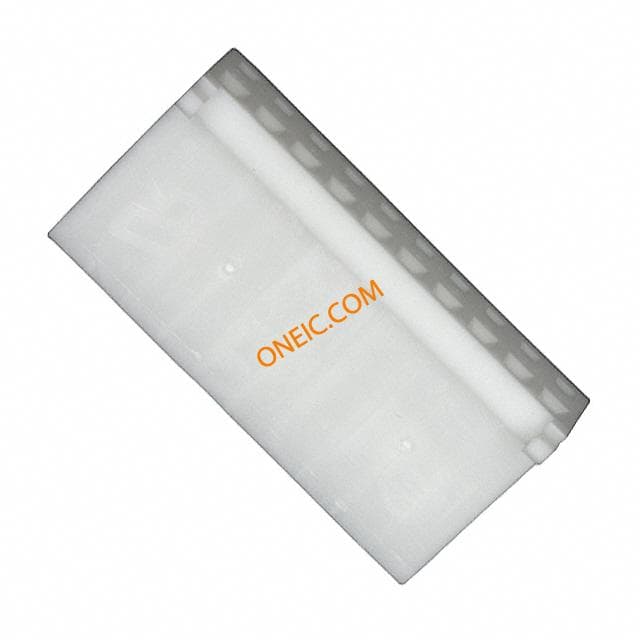

1-1375820-0
