1-640456-3
| Manufacturer | |
| Description | Conn Wire to Board HDR 13 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 13POS .100 TIN Headers & Wire Housings MTA 100 F/L ST 13P Conn Wire to Board HDR 13 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 13Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP FrictionLockHeaderwithPolarizedNotches,StraightPost,13pos. 13P MTA100 HDR ASSY F/L SQ STR |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL File Number | E28476 |
| Approval Agency | CSA,UL | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | Switch Function | Friction Lock |
| Voltage - Supply | 250 | Contact Resistance | 6 mohm |
| Voltage - Rated AC | 250 | Connector Impedance | 焊接 |
| Current Rating (Max) | 5 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 5.72 mm |
| Pitch | 2.54 mm | Height | 10.03 mm |
| Length | 33.02 mm [ 1.3 in ] | Packaging | Bulk |
| Shrouding | No | Body Color | 自然 |
| Termination | Solder | Contact Form | Male Pin |
| Contact Type | Male Pin | Length - Pin | 0.14" |
| Polarization | Polarizing Slot | 2nd Connector | With |
| Contact Shape | Square | Housing Color | White |
| Mounting Type | Vertical | Angle of Throw | Straight |
| Connector Type | Header, Unshrouded | Contact Finish | Tin |
| Contact Timing | Without | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Plating - Body | Tin | Shell Material | 摩擦锁 |
| Connector Usage | Header | Insert Material | 铜合金 |
| Locking Feature | Friction Lock | Contact Material | Copper Alloy |
| Housing Material | Polyester | Length - Overall | 33.02 mm |
| Mounting Feature | Without | Package Quantity | 1 |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Size / Dimension | 0.64 [.025] | Pin Hole Diameter | 0.1" |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Height Above Board | 0.295" (7.49mm) | Mating Orientation | With |
| Number of Contacts | 13 | Termination Finish | 不带 |
| Number of Positions | 13 | Backshell Interrupts | Without |
| Compatible Shell Size | MTA .100 连接器组件 | Contact Length - Post | 3.56 mm [ .14 in ] |
| Mounting Hole Diameter | 0.04" | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 同轴 | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Material - Post | Copper Alloy | Surface Mount Land Size | Without |
| Termination Post Length | 3.56 [0.140] | Contact Finish Thickness | 3.81 µm [ 150 µin ] |
| Small Diameter Recovered | No | Static Discharge Shielding | 不带 |
| Number of Positions/Bay/Row | All | Jacket (Insulation) Thickness | 1.27 µm, 50 µin |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-100 | Features | PolarizedNotches |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Printed Circuit Board |
| Output Configuration | Through Hole | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55C to 105C | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Documents & Media
Similar Parts
1-644083-3
te connectivity / amp
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 22AWG MTA100 Headers & Wire Housings 13P MTA100 CONN ASSY POL TAB Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 13Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY POL TAB
4-640443-3
te connectivity / amp
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 28AWG MTA100 Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY GRN
1-640622-3
te connectivity / amp
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings OBSOLETE MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 26AWG MTA100
4-644313-3
te connectivity / amp
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 26AWG MTA100 Headers & Wire Housings 13P ASSY BLK Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY BLK LF
4-644577-3
te connectivity / amp
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 26AWG MTA100 Headers & Wire Housings 13P ASSY BLK Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY BLK LF
4-643816-3
te connectivity / amp
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 28AWG MTA100 Headers & Wire Housings 13P MTA100 CONN ASSY POL RIB Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Housing13 PositionsPreloadedHousing Gender = ReceptacleContact Gender = ReceptacleSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY POL RIB
1-644312-3
te connectivity / amp
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RECEPT 13POS 24AWG MTA100 Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 13Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application
1-644576-3
te connectivity / amp
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RECEPT 13POS 24AWG MTA100
4-644574-3
te connectivity / amp
Conn IDC Connector RCP 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 24AWG MTA100 Headers & Wire Housings 13P ASSY BLK Conn IDC Connector RCP 13 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY BLK LF
4-644575-3
te connectivity / amp
Conn IDC Connector RCP 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 22AWG MTA100 Headers & Wire Housings 13P ASSY BLK Conn IDC Connector RCP 13 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY BLK LF
4-644083-3
te connectivity / amp
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 22AWG MTA100 Headers & Wire Housings 13P MTA100 CONN ASSY POL TAB MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 13Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY POL TAB
4-644312-3
te connectivity / amp
Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS 24AWG MTA100 Headers & Wire Housings 13P ASSY BLK Conn IDC Connector F 13 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13P MTA100 CONN ASSY BLK LF

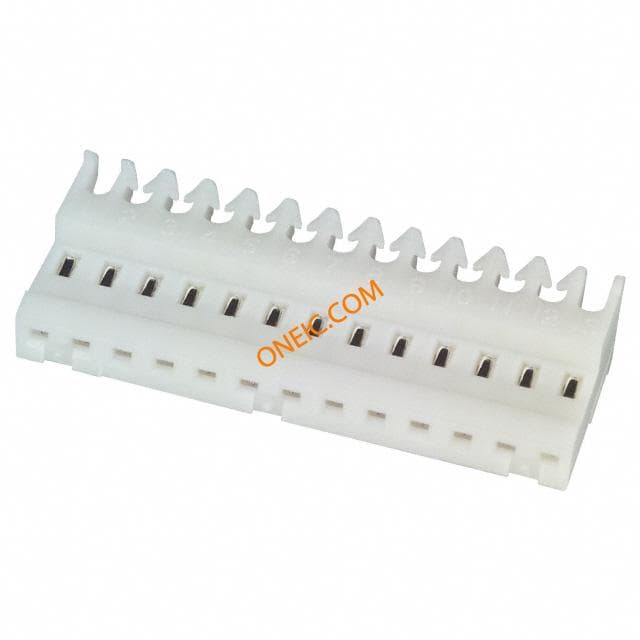

4-640621-3
