1-5102156-1
| Manufacturer | |
| Description | Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 60POS .100 GOLD Conn Ejector Header HDR 60 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 60P VERT |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 | Resistance - Input | 1000 – 5000 |
| Connector Impedance | 弹出锁闩 | Current Rating (Max) | 1/Contact A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 8.53 mm |
| Pitch | 2.54 mm | Height | 13.94 mm |
| Length | 95.5 mm [ 3.76 in ] | Base Type | 不带 |
| Packaging | Bulk | Shrouding | Yes |
| Body Color | 黑色 | End - Size | 3.81 mm [ .15 in ] |
| Lead Style | 直角 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Polarization | Center, Dual Polarizing Bar, Military | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Universal Ejection Pin Headers |
| Contact Finish | Gold Over Palladium Nickel|Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Shell Material | 4 面 | Actuation Force | 不带 |
| Board Thickness | 3.18 [0.125] | Insert Material | 磷青铜 |
| Profile (W x H) | Standard | Housing Material | Thermoplastic |
| Length - Overall | 95.5 mm | Package Quantity | 30 |
| Panel Mount Type | 通孔 | Size / Dimension | 0.64 [.025] |
| Termination Style | 插针 | Diameter - Outside | .64 mm [ .025 in ] |
| Mating Orientation | With | Number of Contacts | 60 |
| Number of Positions | 60 | Compatible Shell Size | AMP 锁闩母端 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Center Contact Material | 2.54 x 2.54 [.100 x .100] | Contact Finish - Mating | 锡 |
| Contact Length - Mating | 0.240" (6.10mm) | Termination Post Length | 3.94 [0.155] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Ejector Header | Gender | HDR |
| Polarity | 带有 | Product Type | 连接器 |
| Other Specifications | Without | Number of Positions Loaded | All |
Environmental
| Temperature Rating | Standard | Operating Temperature | -65C to 105C |
| Thermal Resistance of Package | 3.18 mm [ .125 in ] | ||
Similar Parts
746383-1
te connectivity / amp

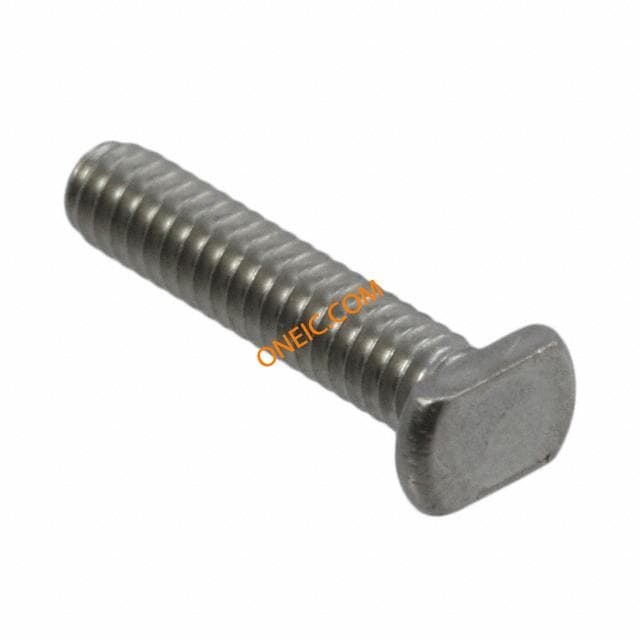

Connector Accessories Mounting Bolt Accessories (AMP-LATCH) CONN MOUNTING SCREW Headers & Wire Housings A/L MT SCR Connector Accessories Mounting Bolt Product Highlights:Mounting BoltSearch Keywords:ribbon cable connector system, hardware, Mounting Header Screw A/L MT SCREW
1-1658622-1
te connectivity / amp

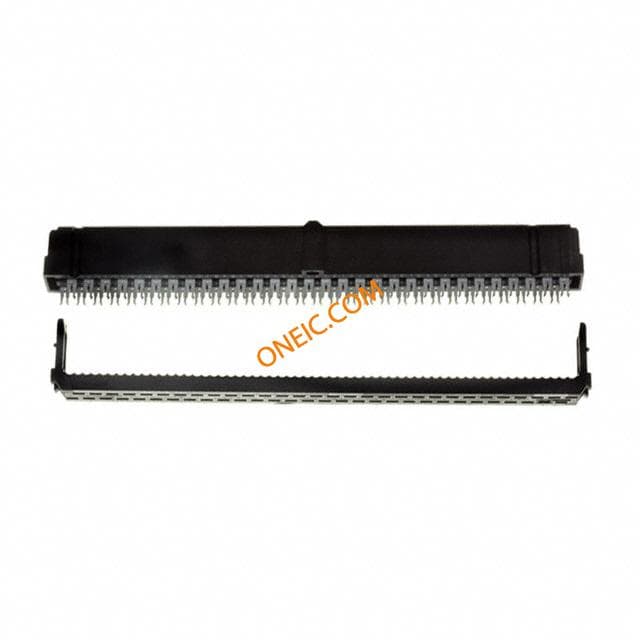

Conn IDC Connector RCP 60 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 60POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 60P Headers & Wire Housings .1CL IDC REC 2X30P C&M 30AU Conn IDC Connector RCP 60 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVO60 PositionsReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 60POS, 2.54MM Connector,Receptacle;Novo;60;Gold(30);Tin-Lead;0.100in.x0.100in. 60 NOVO MIL/CTR 30DP,LEAD FREE
1-1658621-1
te connectivity / amp

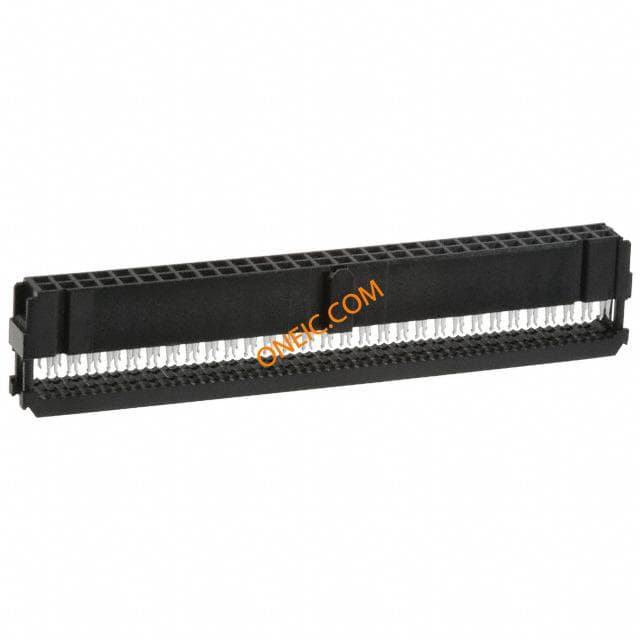

Conn IDC Connector F 60 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 60POS W/POL 15 GOLD AMP-LATCH Novo IDC Receptacle 60P Connector; Receptacle; Novo; 60; Gold (15); Tin-Lead; 0.100 in. x 0.100 in. Conn IDC Connector F 60 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 60ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board Connector,Receptacle;Novo;60;Gold(15);Tin-Lead;0.100in.x0.100in. 60 NOVO MIL/CTR 15DP,LEAD FREE
