1-487937-6
| Manufacturer | |
| Description | 016 HOUSING FFC 50CL DR LATCH .050 X .100 AMPMODU System 50 CONN RCPT 16POS.050 DUAL W/LATCH Board to Board & Mezzanine Connectors 016 HSG 50CL DR LTCH .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 16Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU |
| Category |
Business
| Standard Pack | 1,000 | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | 1,000 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 100V | Voltage - Supply | 100 |
| Resistance - Input | 5000 | Voltage - Clamping | 300 |
| Connector Impedance | 锁闩, 锁闩 | Voltage - Breakdown | 300 |
| Current Rating (Max) | 1.5A | Insulation Resistance | 5,000 |
Mechanical
| Color | Black | Pitch | 0.050" (1.27mm) |
| Lock Type | 带有 | Packaging | Bulk |
| Body Color | 黑色 | Cable Type | Flexible Flat Conductor Cable |
| 2nd Connector | With | Edge Contacts | No |
| Housing Color | Black | Mounting Type | 极化 |
| Connector Type | Housing for Female Contacts | Number of Rows | Dual |
| Connector Usage | Receptacle | Insertion Force | Normal |
| Locking Feature | Latch | Housing Material | Thermoplastic |
| Package Quantity | 800 | Panel Mount Type | 不带 |
| Termination Style | 插座 | FFC, FCB Thickness | 0.05-0.08mm |
| Number of Contacts | 16 | Number of Positions | 16 |
| Mounting Hole Diameter | 带有 | Center Contact Material | 1.27 [0.050] |
Product Info
| Note | Contacts Not Provided | Features | Latch Lock |
| Product Type | Housing | Flat Flex Type | FFC |
Environmental
| Temperature Range | -55 â +105 | Operating Temperature | -55°C ~ 105°C |
Documents & Media
Similar Parts

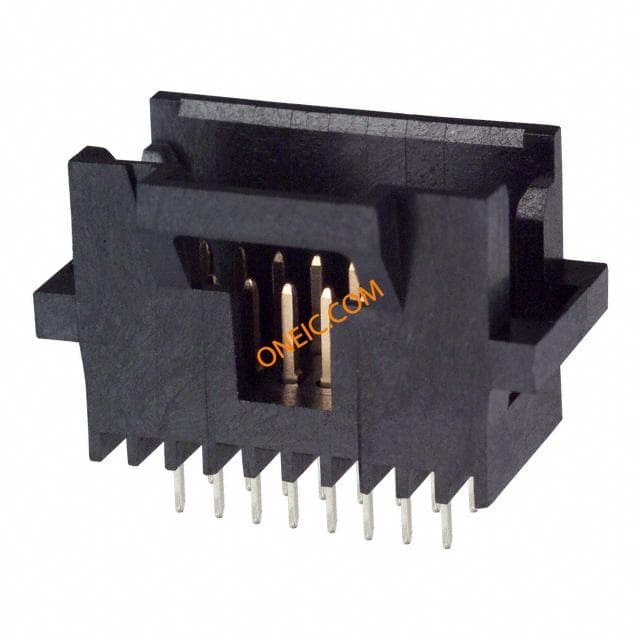

1-104068-0
