Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Red | Depth | 27.43 mm |
| Pitch | 6.35 mm | Width | 20.32 |
| Height | 27.43 mm | Length | 26.67 |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 红色 | Wire Gauge | 10-30 AWG |
| Row Spacing | 0.250" (6.35mm) | Contact Type | Male or Female |
| Housing Color | Red | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Without |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 3 | Package / Case | Plug |
| Height (Inches) | 27.43 | Housing Material | Polyamide (PA) |
| Package Quantity | 1 | Termination Style | Wire |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 12 |
| Contact Termination | Crimp | Number of Positions | 12 |
| Compatible Shell Size | 适当的通用 MATE-N-LOK 母端或公端 | Contact Layout, Typical | 矩阵 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Product Type | Housings |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55C to 105C |
Documents & Media
Online Document
Similar Parts
641974-1
te connectivity / amp
$10.4108
Details

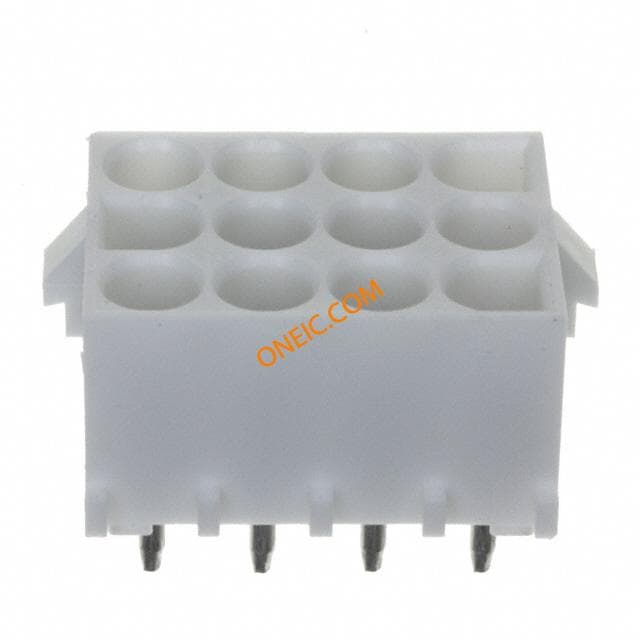

350836-4
te connectivity / amp
$37.6720
Details
643428-1
te connectivity / amp
$11.9000
Details
350737-1
te connectivity / amp
$8.5000
Details

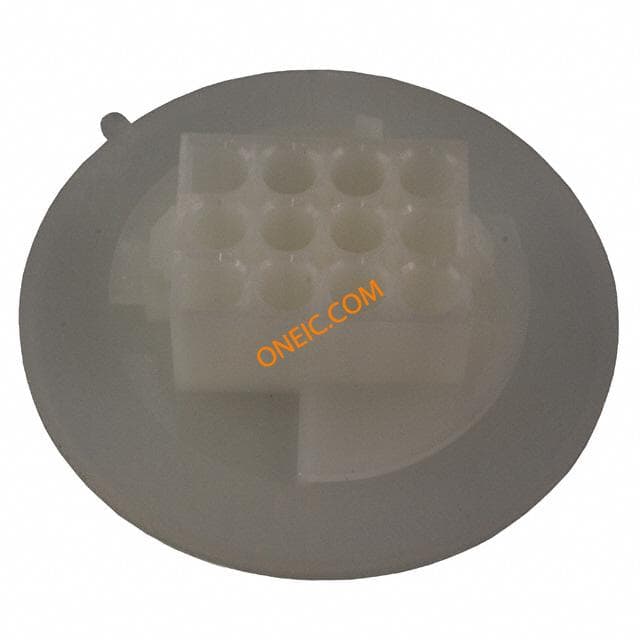

794716-1
te connectivity / amp
$4.5009
Details

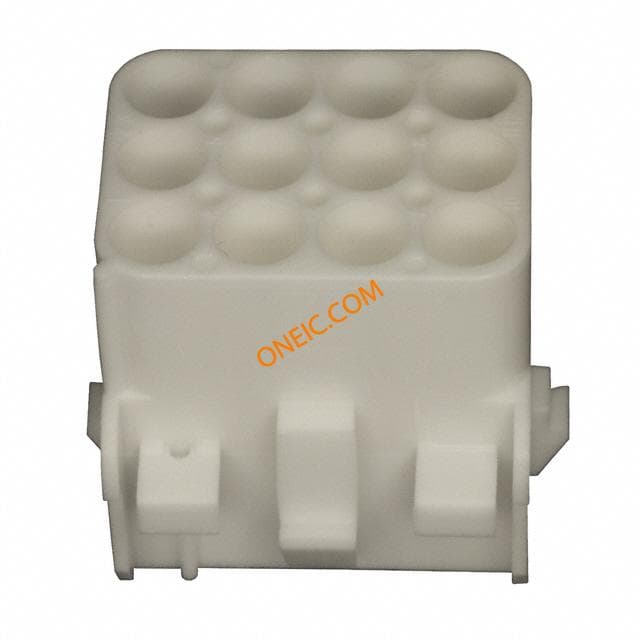

350783-1
te connectivity / amp
$1.7136
Details
2-480709-0
te connectivity / amp
$5.4400
Details

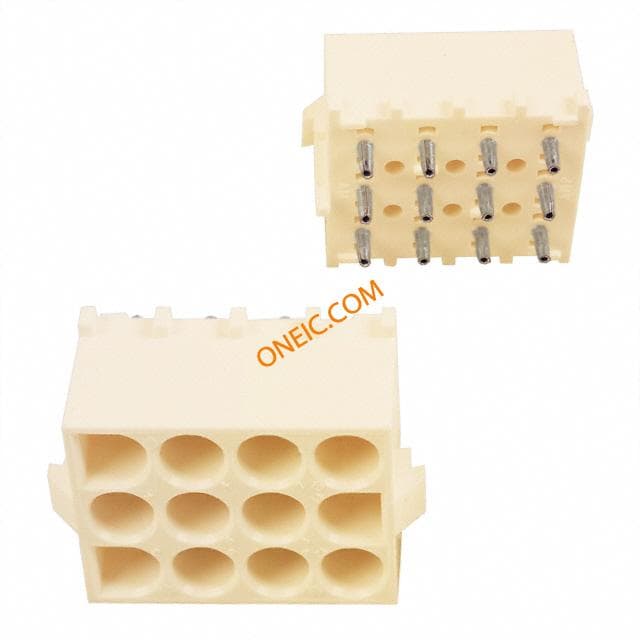

350764-5
