1-480708-0
| Manufacturer | |
| Description | Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 12POS 94V-2 UNI-MATE Pin & Socket Connectors PLUG HOUSE 12 POS Conn Housing PL 12 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR HOUSING, PLUG, 12 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;12;Plug;Nylon;Natural;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:12; 600V Crimp housing Pitch6.35 mm Poles 12 Multi row / Free hanging/cable mount MATE-N-LOK Universal, 1-480708-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 3 行 6.35mm 节距 12 路 直 公 压接连接器外壳 12P UMNL PLUG HSG NATL |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Material Flammability Rating | :UL94V-2 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 19 A |
| Voltage - Input (Min) | 600VAC | Voltage - Supply (Min) | 600VAC |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Natural | Depth | 27.43 mm |
| Pitch | 6.35 mm | Height | 27.43 mm |
| Weight | 0.006 | Material | :Nylon |
| Packaging | Loose Piece | Wire Gauge | 10-30 AWG |
| Row Spacing | 0.250" (6.35mm) | Contact Type | Male or Female |
| Pitch - Post | 6.35mm | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 3 | Housing Material | Nylon |
| Package Quantity | 1 | Connector - Cable | plug |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | 1st Connector Mounting Feature | 3x4 |
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Series | Universal Mate-N-Lok | DELETED | Compliant |
| Product Type | Receptacle Housings | Adapter Series | Universal MATE-N-LOK |
| Number of Units | 1 | For Use With/Related Products | :Universal MATE-N-LOK Connectors |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
641974-1
te connectivity / amp

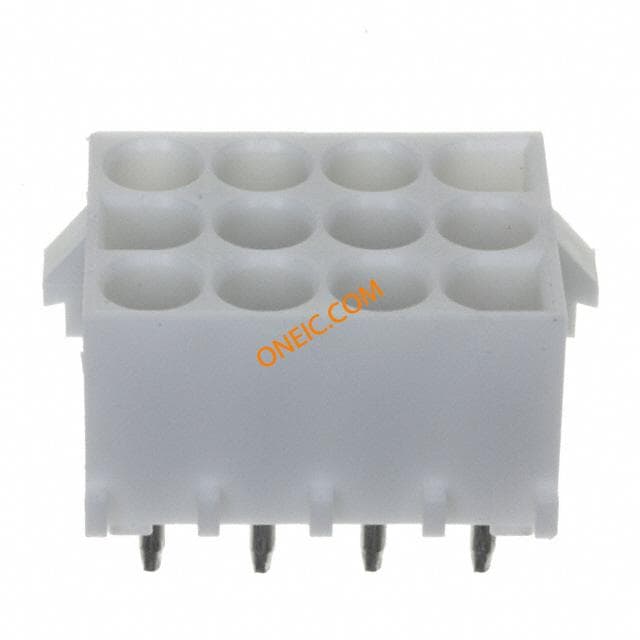

Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Power to the Board 12P PIN HDR ASSY .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Conn Power HDR 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK Product LineRow-to-Row Spacing = 6.35 mmMatrix Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Plug;12Pos;UnivMATE-N-LOK;White 12P UMNL PIN HDR ASSY 94VO
350836-4
te connectivity / amp

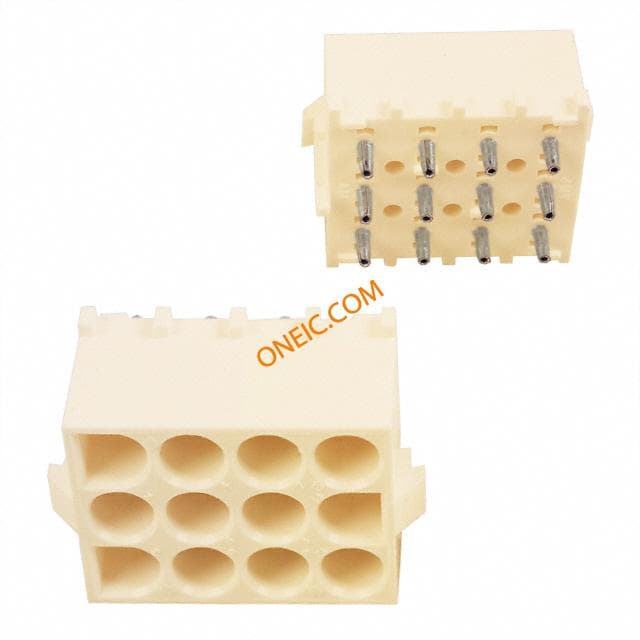

Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 GOLD Pin & Socket Connectors 12P HDR ASSY PC 94V0 .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL HDR ASSY PC 94VO LF
350991-4
te connectivity / amp

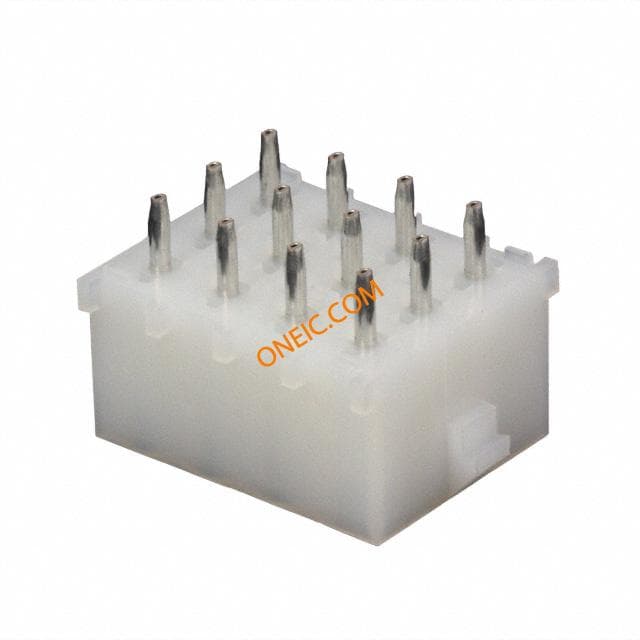

Conn Mate N Lock RCP 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT UMNL TIN Pin & Socket Connectors 12P HEADER ASSY Conn Mate N Lock RCP 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHeaderHeader Gender = ReceptaclePreloadedSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL HDR ASSY LNG/TL
643428-1
te connectivity / amp
Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm 12 Way 3 Row Straight PCB Socket Through Hole Power Pin & Socket Connectors HEADER ASSY 12 POS Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP SOCKETHEADER12WAYPCB TE Connectivity Universal MATE-N-LOK 系列 3行 12路 直 6.35mm节距 通孔 印刷电路板插座, 功率 12P UMNL HDR ASSY POL 94VO
794716-1
te connectivity / amp

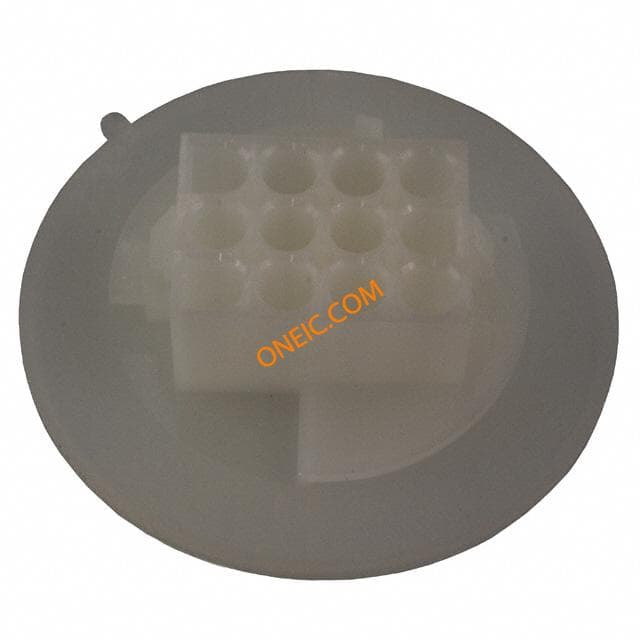

Conn Housing RCP 12 POS 6.35mm Crimp ST Panel Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN CAP RCPT 12POS UMNL FLANGE Power to the Board FLANGED CAP HSG 12P UL94V-2 Housing;UniversalMATE-N-LOK;12;19;600;Receptacle(Cap);Nylon;Natural 12P UMNL CAP HSG NATL,PAN MNT
