1-480426-0
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 5.08mm Crimp ST Individual Conn Housing RCP 4 POS 5.08mm Crimp ST Box .200" Centerline, 250 V, 13 A max. CONN RECEPT/CAP 4 POS MATE-N-LOK Housing,rcpt,free hanging,5.08mm,4way Power to the Board PIN PANEL 4 CIRCUITS Conn Housing RCP 4 POS 5.08mm Crimp ST Box Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PIN HOUSING, 4WAY Connector,SoftShell;CommercialMATE-N-LOK;4;Nylon;0.084;Receptacle(Cap) Plug; wire-board; male; w/o terminals; 5.08mm; PIN:4; UL94V-2; 250V Pin housing 5.08 mm Poles 1 x 4 MATE-N-LOK Commercial, 1-480426-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 1 行 5.08mm 节距 4 路 直 母 PCB 壳体 04P CMNL CAP HSG F/H NATL |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | :CSA, UL | RoHSELV Compliance | Always was RoHS compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Voltage - Working | :250V | Contact Resistance | :4mohm |
| Dielectric Strength | :1500V | Current Rating (Max) | 13 A |
| Insulation Resistance | :500Mohm | Voltage - Input (Min) | 250VAC |
| Voltage - Supply (Min) | 250VAC | Connector - Voltage Input | Commercial MATE-N-LOK |
Mechanical
| Color | Natural | Depth | 23.62mm |
| Pitch | 5.08 mm | Width | 8.38mm |
| Height | 8.38 mm | Length | 25.65mm |
| Weight | 0.01 | Material | :Nylon |
| Lock Type | Detent Lock | Packaging | Box |
| Wire Gauge | 14-30 | Weight (g): | 10.95 |
| Contact Type | Male Pin | Pitch - Post | 5.08 [.200] |
| Body Material | polyamide | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Friction Lock | Mounting Style | Panel Mount, Free Hanging |
| Number of Rows | 1 | Package / Case | Receptacle (Cap) |
| Locking Feature | :2 Lever | Material - Body | :Nylon (Polyamide) |
| Housing Material | Nylon | Length - Overall | 25.65 mm |
| Package Quantity | One Piece Housing | Connector - Cable | plug |
| Termination Style | Wire | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Clear | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| Contact Layout, Typical | In-Line | Contact Finish Thickness | 2.13 [0.084] |
| Wire Gauge or Range - AWG | 30-14 | 1st Connector Mounting Feature | 1x4 |
Product Info
| Spg | 350 | Name | 塑壳 |
| Note | Housing accepts double wire applications where individual insulation diameters | Type | Housing |
| Unit | PCS | Gender | RCP |
| Series | MATE-N-LOK | Quantity | 4500.0 |
| CAD Drawing | 3D CAD Model | Product Type | Housing |
| Adapter Series | Commercial MATE-N-LOK | Number of Units | 1 |
| Number of Circuits | 4 | Manufacturing Country | 中国 |
| Equipment Part Numbers | 1-480426-0.pdf | Minimum Order Quantity | 1 |
| For Use With/Related Products | Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | :105°C |
Documents & Media
Similar Parts

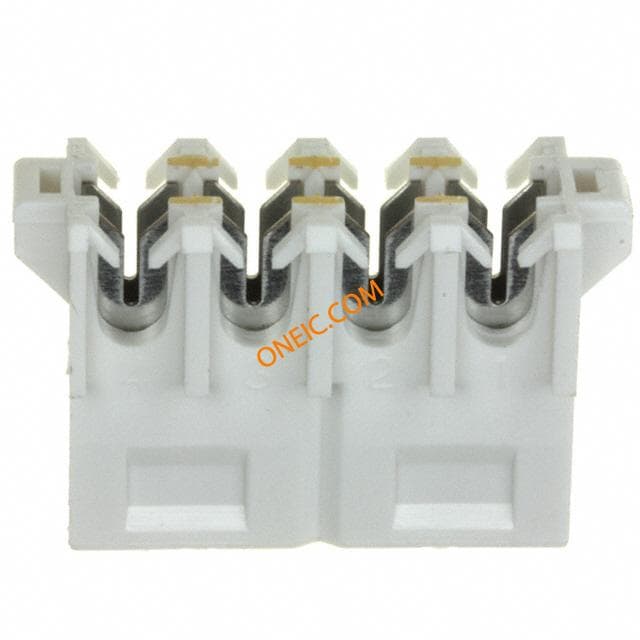

794036-2
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 20AWG Pin & Socket Connectors 4P PLUG ASSY IDC YELLOW Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 20AWG YEL V0
770156-4
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 20AWG Power to the Board 4 CKT IDC YELLOW Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 20AWG YEL V2
1-480424-9
te connectivity / amp
Conn Housing PL 4 POS 5.08mm Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4 POS BLK MATE-N-LOK Pin & Socket Connectors 04P PLUG HSG F/H BLK Conn Housing PL 4 POS 5.08mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingHousing Type = PlugAccepts Contact Type = PinIn-Line Contact Layout5.08 mm CenterlineSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL PLUG HSG F/H BLK

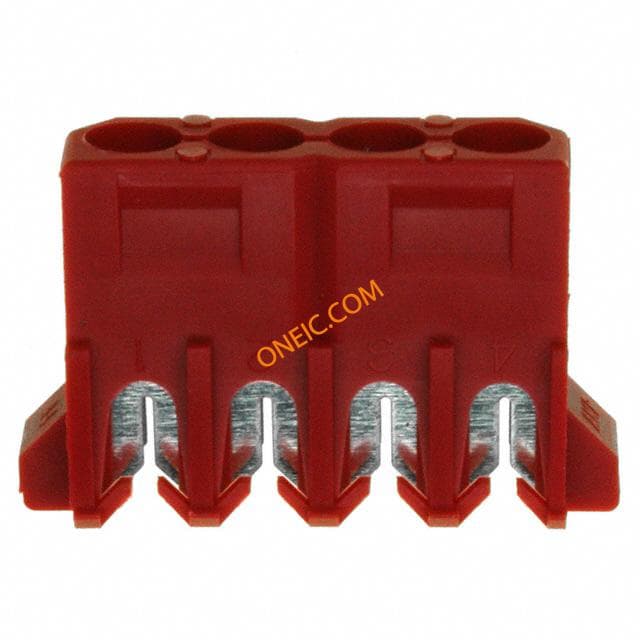

770156-2
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 22AWG Power to the Board 4 CKT IDC RED Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;4;0.084in.;0.095in.;Nylon;0.200in. 4P CMNL IDC PLUG 22AWG RED V2
794036-3
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 22AWG Pin & Socket Connectors 4P PLUG CONN IDC 22AWG Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04PCMNLIDCPLUGCONN22AWG 4P CMNL IDC PLUG 22AWG RED V0
1-480424-0
te connectivity / amp
Conn Wire to Board PL 4 POS 5.08mm Solder ST Thru-Hole Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4 POS MATE-N-LOK Power to the Board 4 CKT HOUSING Conn Wire to Board PL 4 POS 5.08mm Solder ST Thru-Hole Loose Piece Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, NYLON Connector;CommercialMATE-N-LOK;Plug;4;Nylon;13A(Max.);250VAC;0.2in. Plug; wire-board; female; w/o terminals; 5.08mm; PIN:4; UL94V-2 Socket housing 5.08 mm Poles 1 x 4 MATE-N-LOK Commercial, 1-480424-0, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 1 行 4 路 直 公 面板安装 PCB 壳体 04P CMNL PLUG HSG F/H NATL
350079-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG TIN CRIMP Power to the Board PIN CONTACT 30-22 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 30-22 AWG Pin Contact MNL PIN 30-22 PTPBR
794287-1
te connectivity / amp

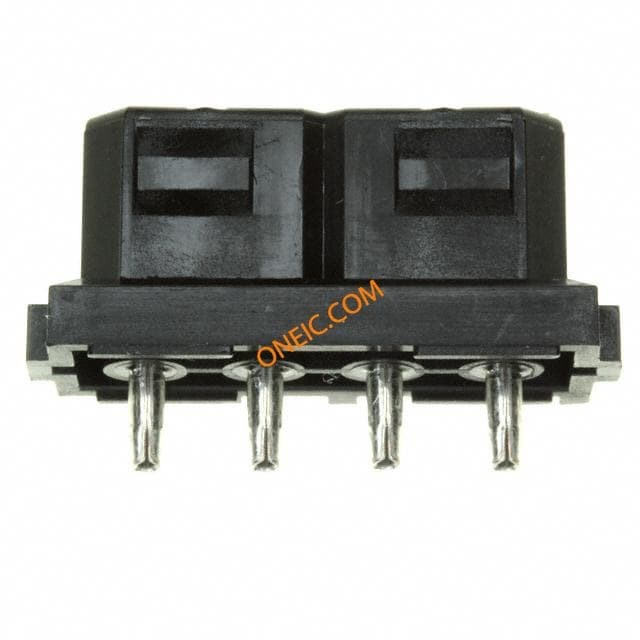

Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER SOCKET VERT 4POS TIN Power to the Board HDR SKT 1X04C VRT V2 HTMP Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MATE-N-LOKHEADERASY,04PCMNLHDRASSYBLKHT MATE-N-LOK 4 Position Through-Hole Single Row Straight Pin Header 04P CMNL HDR ASSY BLK HT
3-480425-0
te connectivity / amp
Conn Housing PL 4 POS 5.08mm ST Loose Piece .200" Centerline, 250 V, 13 A max. CONN PLUG 4POS MATE-N-LOK NAT Pin & Socket Connectors 04P CMNL PLG HSG (125 C) 04P CMNL PLG HSG (125 C) 04P CMNL PLG HSG (125 C) Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP

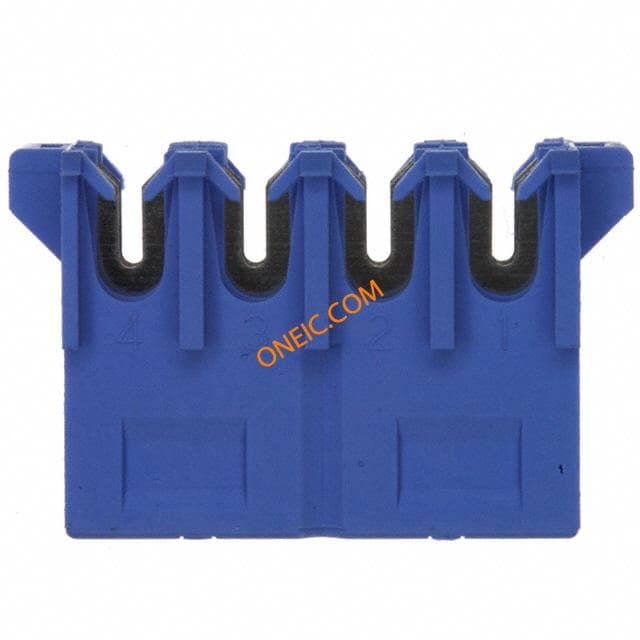

794036-4
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-0 16AWG Pin & Socket Connectors 04P CMNL IDC PLUG CO Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 4P CMNL IDC PLUG 16AWG BLU V0

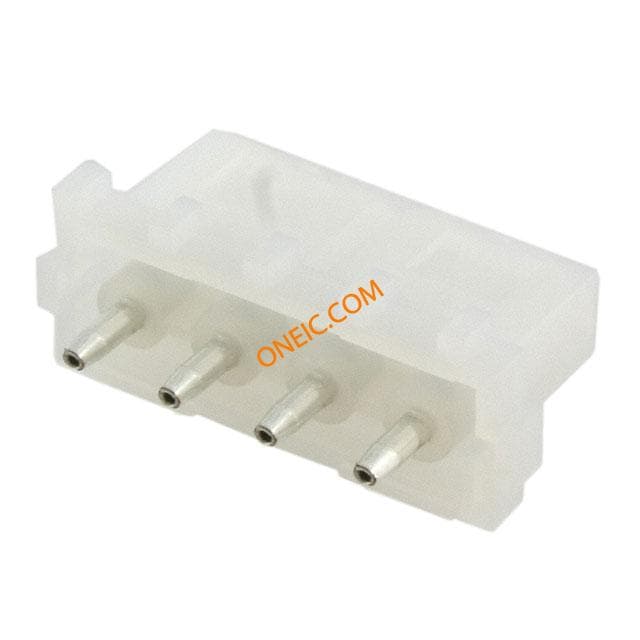

770997-1
te connectivity / amp
Conn Wire to Board SKT 4 POS 5.08mm Solder ST Thru-Hole .200" Centerline, 250 V, 13 A max. PC BOARD VERTICAL SOCKET HEADERS TE Connectivity MATE-N-LOK Series 5.08mm 4 Way 1 Row Straight PCB Socket Through Hole Wire to Board Pin & Socket Connectors SOCKET HDR ASSEM 4P Conn Wire to Board SKT 4 POS 5.08mm Solder ST Thru-Hole Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, SOCKET, VERTICAL, 4WAY MATE-N-LOKHEADERASY,04PCMNLSOKHDRASSY TE Connectivity Commercial MATE-N-LOK 系列 4路 直 5.08mm节距 通孔 印刷电路板插座, 线对板 04P CMNL SOK HDR ASSY

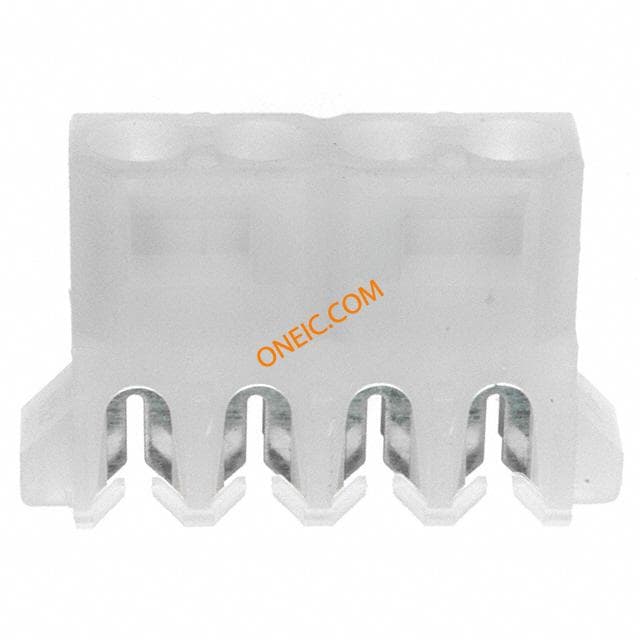

770156-3
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 18AWG Housing FH IDC 4 way Rec CMNL Power to the Board 4 CKT IDC ORANGE Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Connector,SoftShell;250VAC;13A;4;0.084in.;0.095in.;Nylon;0.200in. TE Connectivity Commercial MATE-N-LOK 系列 4路 5.08mm节距 直角 公 IDC 连接器 , 电缆安装 4P CMNL IDC PLUG 18AWG ORG V2
61174-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG GOLD CRIMP Power to the Board 30-22 CONTACT PIN Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP MNLPINL/P CMNL PIN L/P AUNIBR

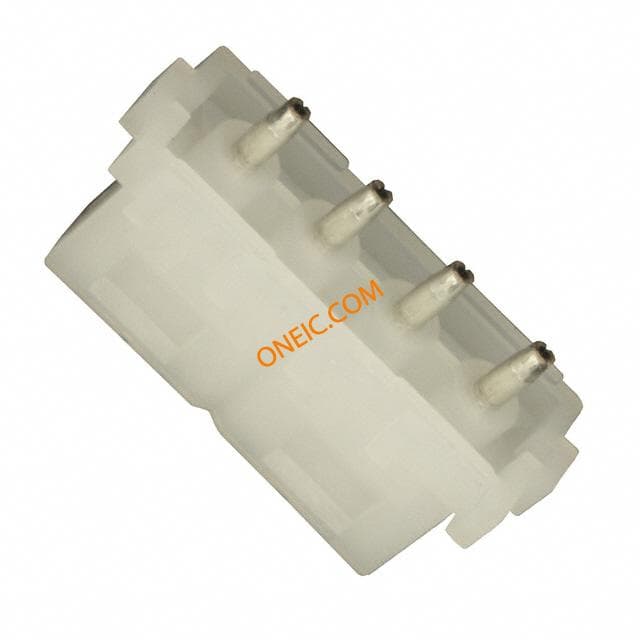

794285-1
te connectivity / amp
Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER VERT 4POS C-MNL TIN Pin & Socket Connectors HDR SKT 1X04C VRT V2 Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Conn Power SKT 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, THT, 5.08MM, 4WAY PLUG & SOCKET CONN, HEADER, 4POS, 4.95MM 04P CMNL SOK HDR ASSY
61118-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Power to the Board CMNL PIN 20-14 BR PIN 20-14 AWG BR .200" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG CRIMP TERM 61118-2 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 20-14 BR
350079-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors MNL PIN 30-22 .0126 .200" Centerline, 250 V, 13 A max. CONN PIN 22-30AWG GOLD CRIMP 350079-5 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmPackaging Method = StripContact Type = PinWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 30-22 AUBR
61118-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN PIN 14-20AWG GOLD CRIMP Power to the Board MNL PIN S/F 20-14 .0 5000 61118-5 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactContact Gender = PinCrimp Contact Termination TypeApplies To WireCrimp Termination MethodSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PIN 20-14 AUNIBR
350558-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Power to the Board MNL PIN 20-14 .0126 .200" Centerline, 250 V, 13 A max. CONN PIN 16-18AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP
770156-5
te connectivity / amp
Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount .200" Centerline, 250 V, 13 A max. CONN IDC PLUG 4POS 94V-2 16AWG Power to the Board IDC PLG 1X04C 16G V2 BLU Conn IDC Connector PL 4 POS 5.08mm IDT RA Cable Mount Product Highlights:IDC ConnectorContact Diameter = 2.13 mmNumber of Circuits = 45.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 04P CMNL IDC PLUG 16 AWG BLU V

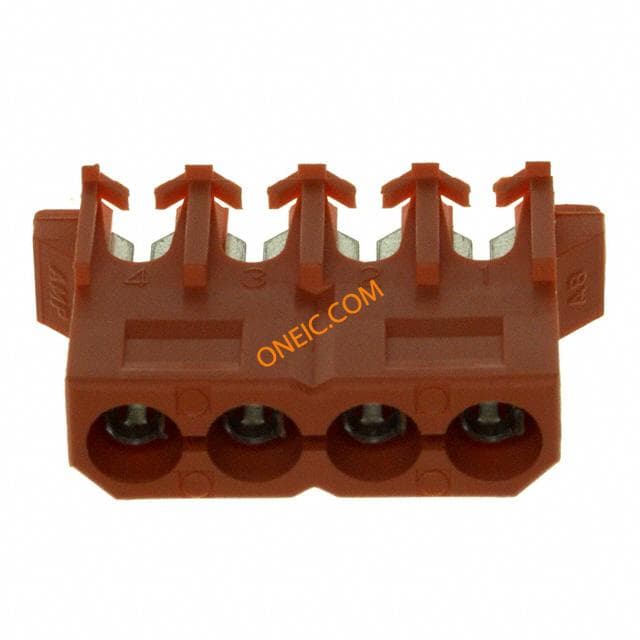

794036-1
