1-480303-2
| Manufacturer | |
| Description | Conn Housing PL 3 POS 5.08mm Crimp ST Box .200" Centerline, 250 V, 13 A max. CONN PLUG HSNG 3POS .200 RED Power to the Board 03P PLUG HSG F/H RED Conn Housing PL 3 POS 5.08mm Crimp ST Box Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 03P CMNL PLUG HSG F/H RED |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 已认证, 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR16455 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-2 |
| Approval Agency Marking | 否 | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage - Supply | 250 | Frequency - Center | 带有 |
| Current Rating (Max) | 13/Contact A | Voltage - Supply (Min) | 250VAC |
| Connector - Voltage Input | Commercial MATE-N-LOK | ||
Mechanical
| Color | Red | Depth | 21.59 mm |
| Pitch | 5.08 mm | Height | 7.37 mm |
| Sealed | Not Sealed | Lock Type | Detent Lock |
| Packaging | Bulk | Body Color | 红色 |
| Wire Gauge | 14-30 AWG | Contact Type | Female Socket |
| Housing Color | Red | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Without |
| Fastening Type | Detent Lock | Number of Rows | 1 |
| Package / Case | Plug | Housing Material | Nylon |
| Length - Overall | 21.08 mm | Package Quantity | One Piece Housing |
| Panel Mount Type | 不带 | Termination Style | 插座 |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | Compatible Shell Size | 插针（盖帽）护套 |
| Center Contact Material | 5.08 [.200] | Contact Layout, Typical | In-Line |
| Contact Finish Thickness | 2.13 [0.084] | ||
Product Info
| Note | Housing accepts double wire applications where individual insulation diameters | Type | Housing |
| Gender | PL | Product Type | Housing |
| Number of Circuits | 3 | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | ||
Documents & Media
Similar Parts
1586514-2
te connectivity / amp
Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN VERT 3POS GOLD Power to the Board 3P HDR ASSY PC NATL Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 03P CMNL HDR ASSY PC NATL LF
350210-1
te connectivity / amp
Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port 03P CENTERLINE BOARD HEADER .200" Centerline, 250 V, 13 A max. CONN HEADER 3 POS TIN PCB MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board CONN PCM 3 POS TIN Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, 3WAY Connector,Shell;CommercialMATE-N-LOK;Pin;3;13;250VAC;Nylon;Natural Pin header, straight Pitch5.08 mm Poles 1 x 3 MATE-N-LOK Commercial, 350210-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 3路 直 PCB 针座, 焊接端接, 13A , 通孔 03P CMNL HDR ASSY PC NATL
350210-2
te connectivity / amp
Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 3 POS GOLD PCB 03P CMNL HDR ASSY PC NATL
350542-1
te connectivity / amp
Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEAD 3CIRC PCB TIN Pin & Socket Connectors 03P CMNL HDR ASSY LO Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONNECTOR 03P CMNL HDR ASSY LONG NATL
61320-1
te connectivity / amp

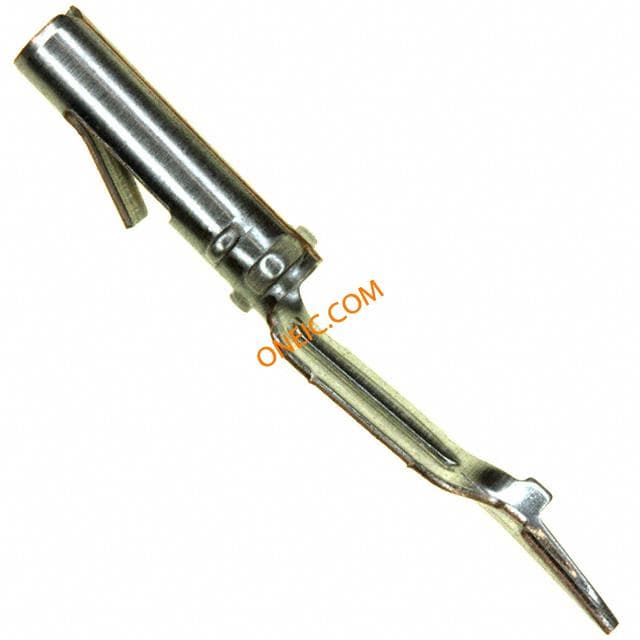

Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET TIN PCB MATE-N-LOK Power to the Board MATE-N-LOCK SOCKET Contact SKT Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag Product Highlights:ContactContact Diameter = 2.13 mmMount = Printed Circuit BoardLoose PieceContact Type = Printed Circuit Board SocketSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin Printed Circuit Board Tab Socket Contact CMNL PCB SOK PTPHBZ
350073-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .200" Centerline, 250 V, 13 A max. CONN SOCKET M-N-L PCB Power to the Board PCB CONTACT SOCKET .200" Centerline, 250 V, 13 A max. Product Highlights:ContactContact Diameter = 2.13 mmMount = Printed Circuit BoardPackaging Method = Loose PieceContact Type = Printed Circuit Board SocketSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL PCB SOK PTPPHBZ
350541-1
te connectivity / amp
Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 3POS VERT .200 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board CONN PCM 3 POS TIN Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 3POS, 4.95MM Connector,Shell;CommercialMATE-N-LOK;Pin;3;13;250VAC;Nylon;Natural 03P CMNL HDR ASSY SHORT NATL
1586532-2
te connectivity / amp
Conn Power PIN 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN VERT 3POS GOLD Headers & Wire Housings HDR PIN 1X03C VRT V2 Conn Power PIN 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 03P CMNL HDR ASSY SHORT LF
350541-2
te connectivity / amp
Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 3POS VERT .200 AU Pin & Socket Connectors HDR 3P VERT .200 AU Conn Power HDR 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 03P CMNL HDR ASSY SHORT NATL
643488-1
te connectivity / amp

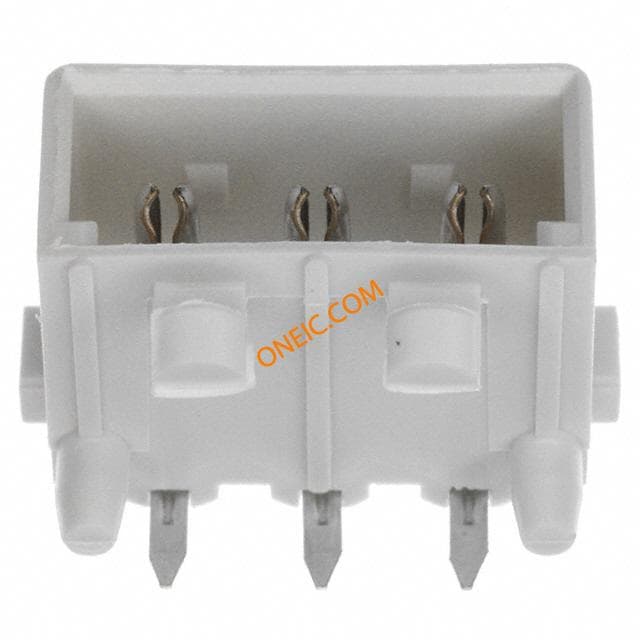

Conn Power HDR 3 POS 5.08mm Solder RA Thru-Hole 3 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER PIN RT/ANG 3POS TIN Power to the Board 3P R/A HDR ASSY Conn Power HDR 3 POS 5.08mm Solder RA Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 35.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 3POS, 4.95MM HEADERASSEMBLY,SOFTSHELL,MATE-N-LOK,3POSITION,PIN,NYLON,NATURAL 03P CMNL HDR ASSY R/A
