1-480285-0
| Manufacturer | |
| Description | Conn Housing PL 10 POS 4.95mm ST Individual .200" Centerline, 250 V, 13 A max. CONN PLUG 10 POS MATE-N-LOK Housing, FH, 10 way, Mate-n-Lok, Rec Mate-n-lok,housing,plug,10w skt contact Power to the Board 10 POS SKT HOUSING Conn Housing PL 10 POS 4.95mm ST Individual Product Highlights:HousingContact Diameter = 2.13 mmNumber of Circuits = 104.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONNECTOR PLUG & SOCKET Connector;CommercialMATE-N-LOK;Plug;10;Nylon;13A(Max.);250VAC;AMP TE Connectivity Commercial MATE-N-LOK 系列 2 行 4.95mm 节距 10 路 直 公 PCB 壳体 10P CMNL PLUG HSG M/M NATL |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | Always was RoHS compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Current Rating (Max) | 13 A | Connector - Voltage Input | Commercial MATE-N-LOK |
Mechanical
| Color | Natural | Depth | 21.59mm |
| Pitch | 4.95 mm | Width | 18.42mm |
| Weight | 0.018 | Lock Type | Positive Lock |
| Packaging | Bulk | Wire Gauge | 14-30 AWG |
| Row Spacing | 0.360" (9.14mm) | Contact Type | Female Socket |
| Pitch - Post | 4.95 x 9.14 [.195 x .360] | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 2 |
| Package / Case | Plug | Housing Material | Nylon |
| Package Quantity | One Piece Housing | Termination Style | Wire |
| 1st Contact Gender | Pin (Male) | Color - Connectors | :Nature |
| Number of Contacts | 10 | Contact Termination | Crimp |
| Number of Positions | 10 | Contact Layout, Typical | Double-Row |
| Contact Finish Thickness | 2.13 [0.084] | Wire Gauge or Range - AWG | 30-14 |
Product Info
| Note | Housing accepts double wire applications where individual insulation diameters | Type | Housing |
| Gender | PL | Series | MATE-N-LOK |
| Product Type | Housing | Number of Circuits | 10 |
| For Use With/Related Products | 5.08 mm Centerline Soft Shell Pin & Socket Connector | ||
Documents & Media
Similar Parts
61117-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Pin & Socket Connectors SOK 20-14 BR .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20 AWG CRIMP 61117-2 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Commercial Mate-N-Lok Pre-Tin 20-14 AWG Discrete Wire Crimp Socket Contact CMNL SOK 20-14 BR

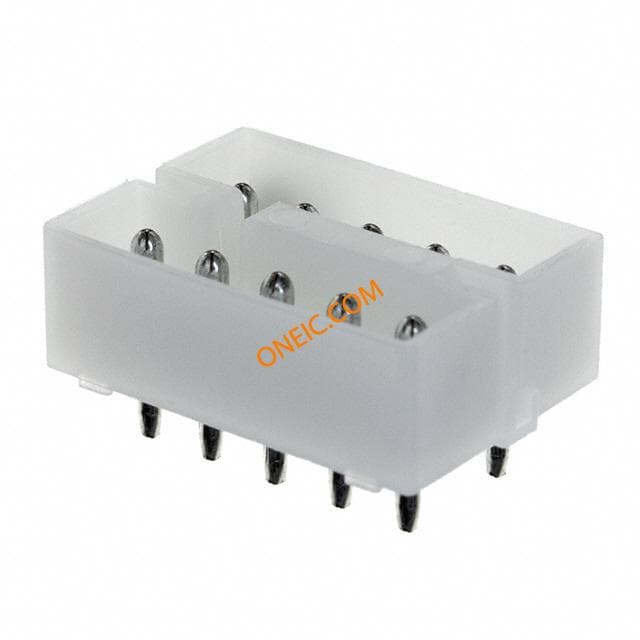

350219-1
te connectivity / amp
Conn Power HDR 10 POS 4.95mm Solder ST Thru-Hole 10 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 10POS VERT DUAL TIN Power to the Board CONN PCM 10 POS TIN Conn Power HDR 10 POS 4.95mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 104.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP 10P CMNL HDR ASSY PC NATL
61314-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG 61314-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 24-18 AUBR
61173-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Power to the Board SOCKET CONTACT 30-22 .200" Centerline, 250 V, 13 A max. CONN SOCKET 22-30AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmLoose PieceContact Type = SocketWire Range = 0.05-0.40² [30-22] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CMNL SOK 30-22 PTPHBZ L/P
1-380991-0
te connectivity / amp
Conn Power PIN 10 POS 4.95mm Solder ST Thru-Hole 10 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 10 POS TIN PCB MATE-N-LOK 10 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board CONN PCM 10 POS TIN Conn Power PIN 10 POS 4.95mm Solder ST Thru-Hole 10 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 104.95 x 9.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 10POS 4.95MM Connector,Shell;CommercialMATE-N-LOK;Pin;10;13;250VAC;Nylon;Natural TE Connectivity Commercial MATE-N-LOK 系列 4.95mm节距 10路 直 PCB 针座, 焊接端接, 13A , 通孔 10P CMNL HDR ASSY NATL
61314-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 24-18AWG M-N-L TIN Contact Crimp socket 24-18AWG Mate-n-Lok Power to the Board SOCKET 22-18 AWG Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,MATE-N-LOK,2.13MM,24-18AWG,BRASS TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀锡触点 CMNL SOK 24-18 TPBR
61117-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .200" Centerline, 250 V, 13 A max. CONN SOCKET 14-20AWG MNL Mate-n-lok socket contact,0.50-2.00mm² Pin & Socket Connectors CMNL SOK 20-14 AUBR 61117-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Diameter = 2.13 mmStripContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP Contact,Socket,20-14AWG,2.13mm null TE Connectivity Commercial MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 CMNL SOK 20-14 AUBR

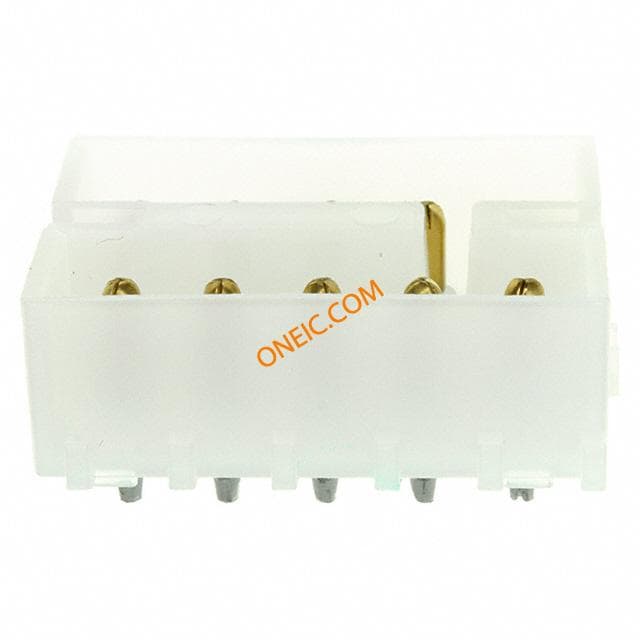

2-1586544-0
