1-480270-0
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Voltage - Working | :250V | Contact Resistance | :4mohm |
| Dielectric Strength | :1500V | Current Rating (Max) | 13 A |
| Insulation Resistance | :500Mohm | Voltage - Supply (Min) | 250VAC |
| Connector - Voltage Input | Commercial MATE-N-LOK | ||
Mechanical
| Color | Natural | Depth | 21.59 mm |
| Pitch | 4.95 mm | Height | 15.49 mm |
| Weight | 0.004 | Material | :Nylon |
| Lock Type | Positive Lock | Packaging | Bulk |
| Row Spacing | 0.360" (9.14mm) | Contact Type | Female Socket |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 2 |
| Package / Case | Plug | Housing Material | Nylon |
| Length - Overall | 18.42 mm | Package Quantity | One Piece Housing |
| Termination Style | Wire | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Clear | Number of Contacts | 6 |
| Contact Termination | Crimp | Number of Positions | 6 |
| Center Contact Material | 4.95 x 9.14 [.195 x .360] | Contact Layout, Typical | Double-Row |
| Contact Finish Thickness | 2.13 [0.084] | Wire Gauge or Range - AWG | 30-14 |
Product Info
| Note | Housing accepts double wire applications where individual insulation diameters | Type | Housing |
| Gender | PL | Series | :Mate-N-Lok |
| Product Type | Housing | Number of Circuits | 6 |
| For Use With/Related Products | :Commercial MATE-N-LOK Connectors | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | :105°C |
Documents & Media
Online Document
Similar Parts

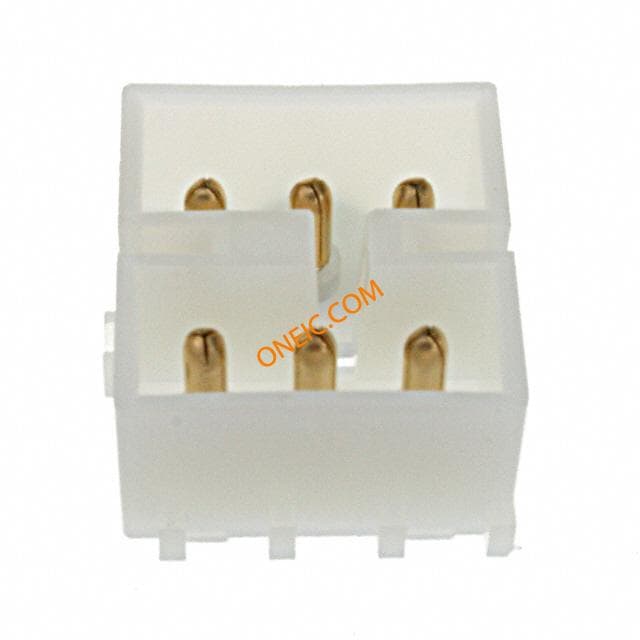

2-380999-0
te connectivity / amp
$85.0299
Details
61117-2
te connectivity / amp
$0.6298
Details
1-480340-0
te connectivity / amp
$3.3932
Details

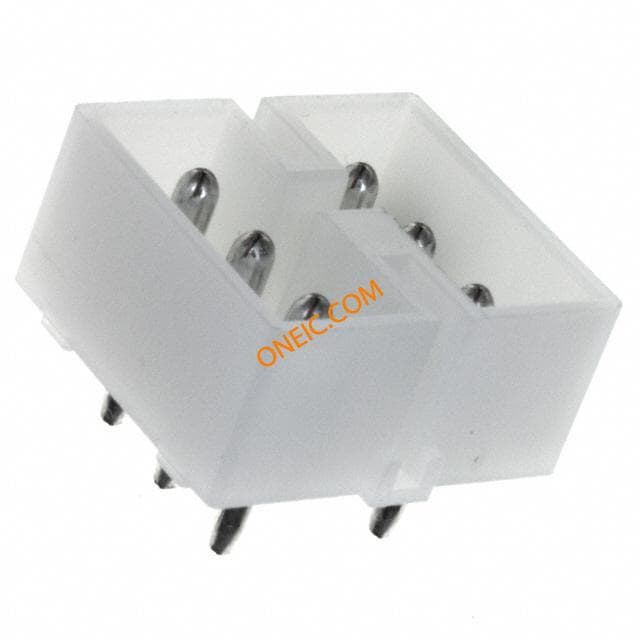

350425-1
te connectivity / amp
$2.7200
Details
61314-5
te connectivity / amp
$6.3240
Details
61173-4
te connectivity / amp
$1.0948
Details
61314-7
te connectivity / amp
$4.4711
Details
1-380999-0
te connectivity / amp
$6.7320
Details
61117-6
te connectivity / amp
$33.6056
Details
1-480271-0
te connectivity / amp
$4.0052
Details
60617-5
te connectivity / amp
$6.7320
Details
1586526-2
te connectivity / amp
Details

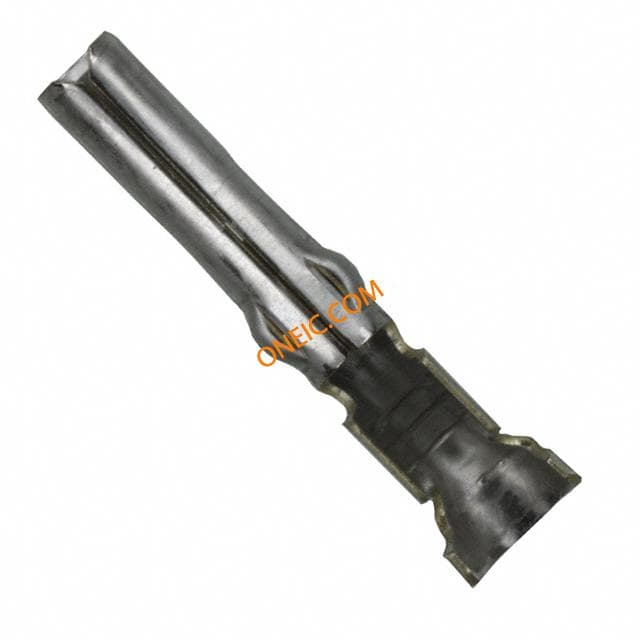

61117-1
te connectivity / amp
$0.2482
Details
60617-1
te connectivity / amp
$1.2954
Details

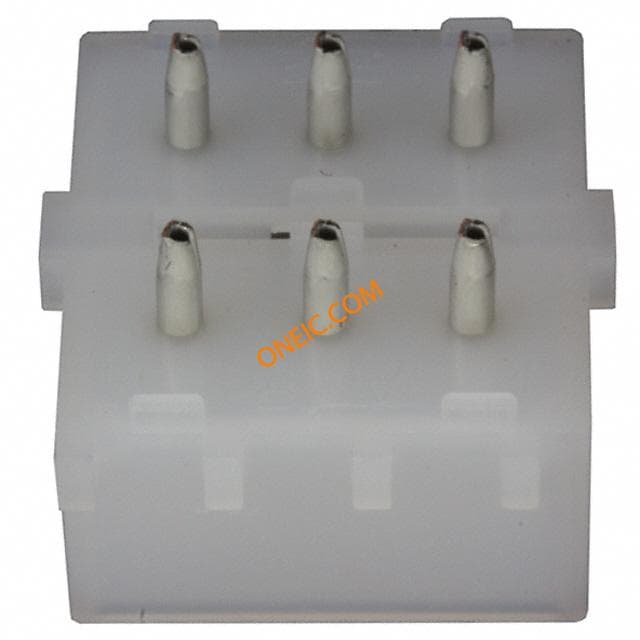

2-1586546-0
te connectivity / amp
$23.2764
Details

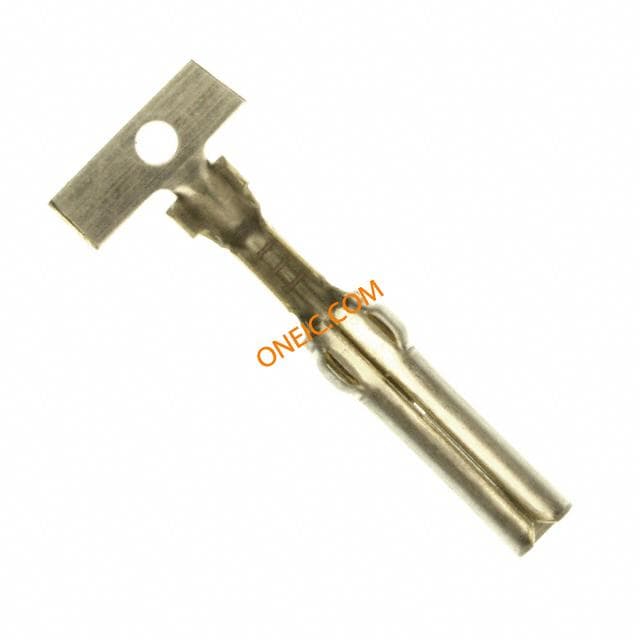

350078-1
te connectivity / amp
$0.4896
Details

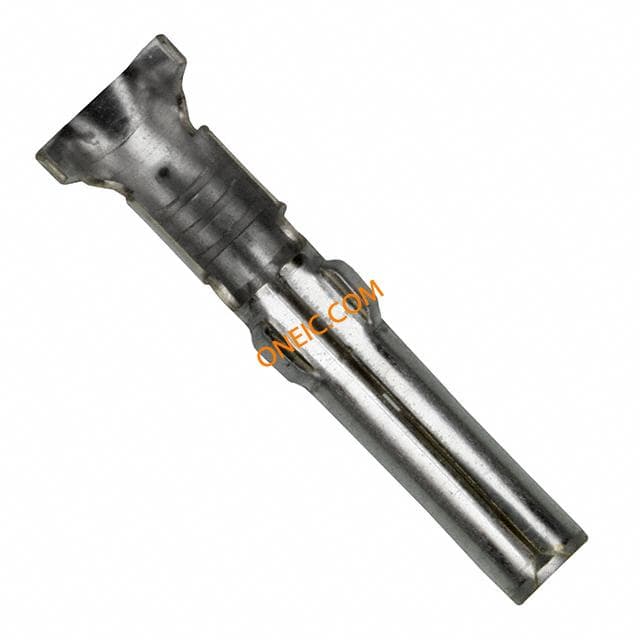

350557-1
