1-440129-1
| Manufacturer | |
| Description | Conn Housing RCP 11 POS 2mm Crimp ST Cable Mount Bag High Performance Interconnects (HPI) CONN RCPT HOUSING 11POS 2.00MM Headers & Wire Housings 11 POS RECPT 2.0mm Conn Housing RCP 11 POS 2mm Crimp ST Cable Mount Bag Product Highlights:2.00 mm CenterlineReceptacleNumber of Positions = 11Housing Color = NaturalNumber of Rows = SingleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0mm,HSG,11pos |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 VAC | Resistance - Input | 1000 |
| Connector Impedance | 压接 | Current Rating (Max) | 3 |
| Voltage - Protection Rating (VPR) | 1000 VAC | ||
Mechanical
| Color | Natural | Pitch | 2 mm |
| Width | .272 in, 6.9 mm | Height | 4.5 mm [ .177 in ] |
| Length | 23.9 mm [ .9409 in ] | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 自然 |
| Wire Gauge | 30 – 24 | Contact Type | Female Socket |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Receptacle | Mounting Style | Wire |
| Number of Rows | 1 | Insert Material | 铜合金 |
| Locking Feature | 带有 | Housing Material | Nylon 66 |
| Package Quantity | 1000 | Panel Mount Type | 不带 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 11 | Contact Termination | Crimp |
| Insulation Diameter | .9 – 1.5 mm [ .0354 – .059 in ] | Number of Positions | 11 |
| Compatible Shell Size | 440054-x- 440205-x- 1775470-x- 440055-x- 1734827-x- 1775469-x | Mounting Hole Diameter | 带有 |
| Center Contact Material | 2.00 [0.079] | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | HPI |
| Sealable | 否 | Product Type | Receptacle |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -25 – 85 °C [ -13 – 185 °F ] |
Documents & Media
Similar Parts
1-440054-1
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2mm Solder ST Thru-Hole Bag High Performance Interconnects (HPI) CONN HEADER 11POS 2MM VERT T/H Headers & Wire Housings 11 POS HDR VERT 2.0mm Conn Shrouded Header HDR 11 POS 2mm Solder ST Thru-Hole Bag Product Highlights:2.00 mm CenterlineHeaderNumber of Positions = 11Housing Color = NaturalVertical Mount AngleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0mm,HDR,11pos,Vertical
1-440055-1
te connectivity / amp
Conn High Performance Interconnect HDR 11 POS 2mm Solder RA Thru-Hole High Performance Interconnects (HPI) CONN HEADER 11POS R/A 2MM T/H Headers & Wire Housings 11 POS HDR R/A 2.0mm 2.0mm,HDR,11pos,R/A 2.0mm,HDR,11pos,R/A Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal
1735801-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG TIN Headers & Wire Housings 2mm CRIMP SOCKET 24-30 AWG Contact SKT Crimp ST Cable Mount Reel Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal Contact,Socket,250VAC/250VDC;30-24AWG CONN SOCKET 24-30AWG 2.0mm,Crimp,Contact
1-1734827-1
te connectivity / amp
Conn High Performance Interconnect HDR 11 POS 2mm Solder RA SMD Reel Headers & Wire Housings 11 POS HDR R/A SMT 2.0mm CONN HEADER 11POS 2MM R/A SMD Headers & Wire Housings 11 POS HDR R/A SMT Conn High Performance Interconnect HDR 11 POS 2mm Solder RA SMD Reel Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0 WTB HDR .5 SQ RA SMT 11P

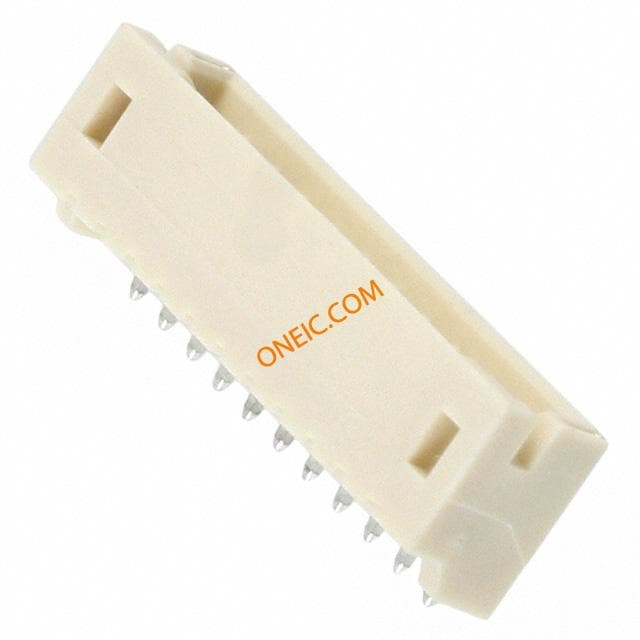

1-1775469-1
TE Connectivity / AMP
Headers & Wire Housings 11 POS HDR R/A SMT 2.0mm CONN HEADER 11POS 2MM R/A SMD HPI CONN., 2.0mm, R/A, SMT, 11P, 80u"

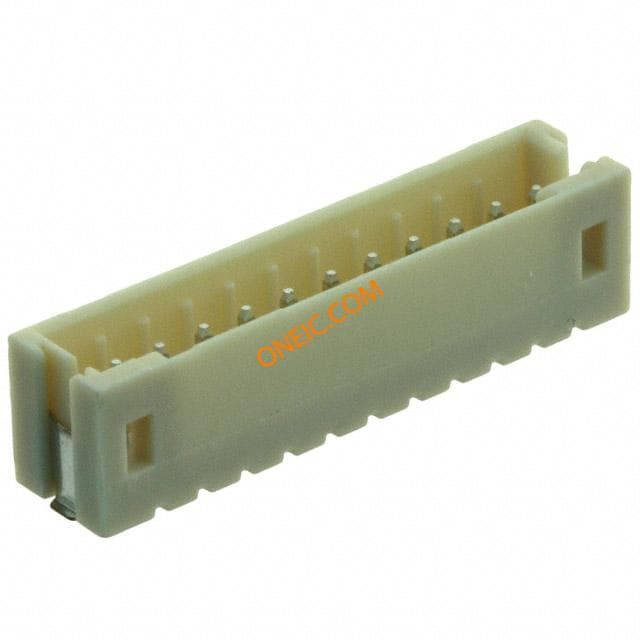

1-1775470-1
