1-406541-5
| Manufacturer | |
| Description | Conn RJ-45 F 8 POS 2.04mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 5 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 8P8C SHIELDED Cat5 RJ45 PCB R/A shielded modular jack Modular Connectors / Ethernet Connectors R/A 8POS T/H BLACK Conn RJ-45 F 8 POS 2.04mm Solder RA Thru-Hole 8 Terminal 1 Port Tray Cat 5 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ45Number of Positions = 8Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO MODULAR, JACK, THT, R/A, RJ45, 8P8C MJ,INV,1X1,0PNLG,.100IN,ST,SN MJ,INV,1X1,0PNL G,.100"ST,SN |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | Trays |
| Factory Pack Quantity | 441 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| LED | Without | Current Rating (Max) | 1.5/Contact A |
| Voltage - Supply (Min) | 150VAC | Connector - Voltage Input | :Cat5 |
Mechanical
| Color | Black | Depth | 15.75 mm |
| Pitch | 2.04 mm | Height | 14.54 mm |
| Weight | 0.02 | LED Color | Does Not Contain LED |
| Packaging | Tray | Shielding | Shielded |
| Orientation | 90° Angle (Right) | Shield Type | Yes |
| Termination | Solder | Housing Color | Black |
| Inverted Jack | Yes | Mounting Type | Through Hole |
| Shell Plating | Satin Nickel | Tab Direction | Up |
| Connector Type | -3.43 [-0.135] | Contact Finish | Matte Tin over Nickel |
| Flange Feature | No | Grounding Type | PCB Ground |
| Mounting Style | Thru Hole | Number of Rows | 1 |
| Board Thickness | 1.57 [0.062] | Height (Inches) | 13.34 [0.525] |
| Profile (W x H) | Standard | Shield Material | Copper Alloy |
| Contact Material | Phosphor Bronze | Housing Material | High Temperature Thermoplastic |
| Length - Overall | 17.27 mm | Package Quantity | Tray |
| Panel Mount Type | With | Primary Material | Modular |
| Termination Style | Solder | Number of Contacts | 8 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 8 |
| Cable Length - Unexposed | 2.54 [0.100] | Contact Finish Thickness | 50µin (1.27µm) |
| Number of Positions/Bay/Row | 5 | ||
Product Info
| Note | Recommended applications: Fast Ethernet, 10Base-T Ethernet, and 10/100 Base-T E | Type | RJ-45 |
| Gender | F | Series | :- |
| Features | Board Guide | Port Style | Single |
| USOC Codes | RJ45 | Coded, Keyed | No |
| Product Type | Jack | Category Number | Cat 5 |
| Number of Ports | 1 | Jack Configuration | 1 x 1 |
| RF Family/Standard | 406541 | Performance Category | Cat 5 |
| Number of Positions Loaded | 8 | Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
Environmental
| Ratings | Cat5 | Operating Temperature | -40°C ~ 85°C |
Documents & Media
PDF Document
Online Document
Similar Parts
2040008-1
te connectivity / amp

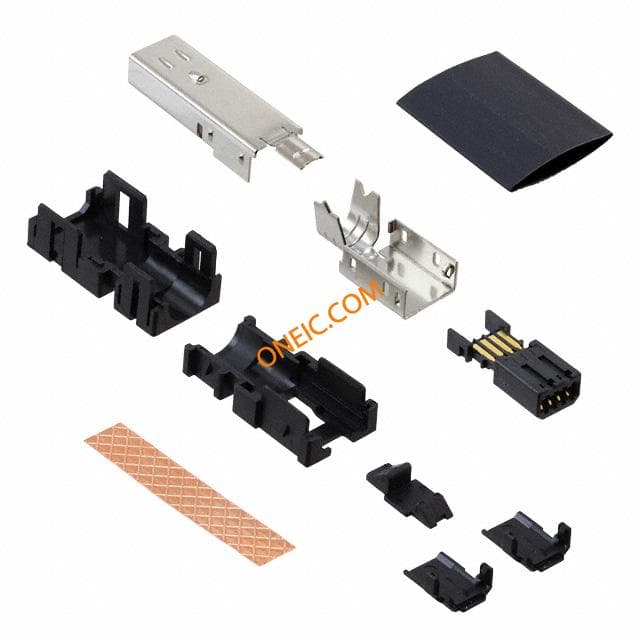

Conn Modular Plug PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e CONN MOD PLUG 8P8C SHIELDED TE Connectivity 8 Way Straight PCB Socket Cable Mount Modular Plug I/O Connectors 8P MINI I/O PLUG KIT TYPE II Conn Modular Plug PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e Search Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, MINI I/O CONNECTOR, PLUG, 8POS, SOLDER PLUG KIT, MINI-I/O, BLACK, TYPE II 8WRJ45PLUGMINII/O 8 Position Shielded Modular Plug For Round Stranded Cable TE Connectivity 8路 直 电缆安装 印刷电路板插座, 模块化插头 INDUSTRIAL MINI I/O PLUG KIT D2
