1-350848-2
| Manufacturer | |
| Description | Conn Power SKT 12 POS 6.35mm ST Cable Mount 12 Terminal 1 Port Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN TEST PLUG 12POS UNIV M-N-L Power to the Board 12P PLUG TEST 94VO .250" Centerline, 600 V, 19 - 36 A max Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL PLUG TEST ASSY 94VO |
| Category |
Business
| Standard Pack | 1 | Product Category | Power to the Board |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 是 |
Electrical
| Voltage - Supply | 600 | Current Rating (Max) | 5 |
Mechanical
| Color | Natural | Pitch | 6.35 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Wire Type | Discrete | Row Spacing | 0.250" (6.35mm) |
| Contact Type | Male Pin | Mounting Type | Cable Mount |
| Connector Type | Plug | Contact Finish | Tin |
| Fastening Type | Latch Lock | Number of Pins | 12 |
| Number of Rows | 4 | Package / Case | Plug |
| Housing Material | 尼龙 | Package Quantity | 1 |
| Panel Mount Type | 不带 | Cable Termination | Crimp |
| Termination Style | 插针 | Number of Positions | 12 |
| Compatible Shell Size | 通用 MATE-N-LOK 插座 | Contact Finish - Mating | 预镀锡 |
| Contact Layout, Typical | 直插式 | ||
Product Info
| Type | Power | Gender | SKT |
| Product Type | 连接器组件 | Application Specifics | Power |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts

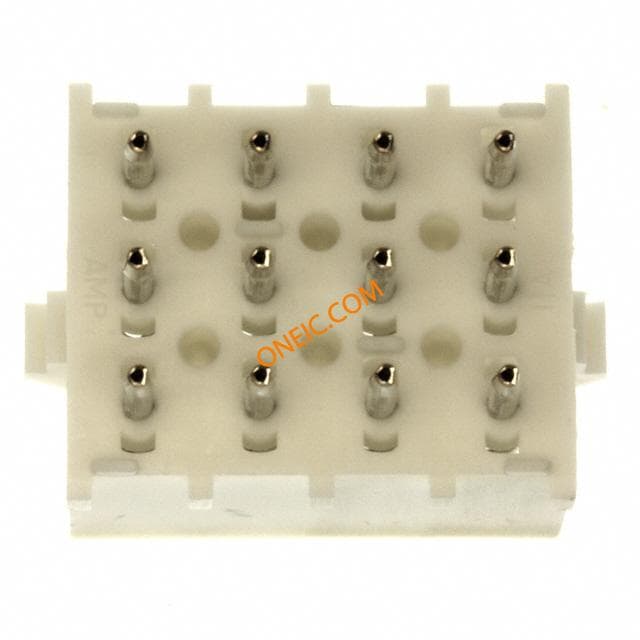

350836-1
te connectivity / amp
Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN Pin & Socket Connectors 12P HDR ASSY PC 94V0 Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 12P UMNL HDR ASSY PC 94VO
350829-1
te connectivity / amp
Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 12POS VERT .250 TIN MATE-N-LOK 12 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Pin & Socket Connectors 12P VERT. SKT HEADER Conn Power SKT 12 POS 6.35mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 12Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Socket;12Pos;UnivMATE-N-LOK;Vertical;White Socket; wire-wire/PCB; female; 6.35mm; PIN:12; 19A; UL94V-0; THT TE Connectivity Universal MATE-N-LOK 系列 12路 直 6.35mm节距 通孔 公 印刷电路板插座, 功率 12P UMNL HDR ASSY PC 94VO

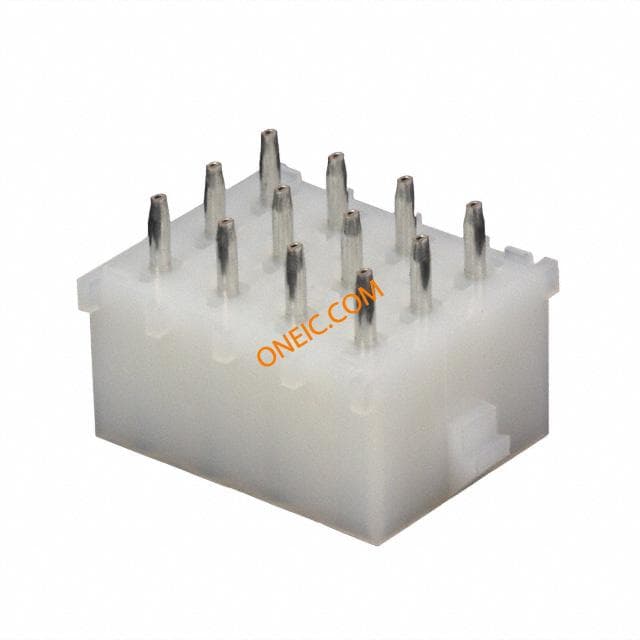

350991-4
