1-215882-0
| Manufacturer | |
| Description | Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Loose Piece Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 POLAR GOLD Ribbon cable conn.rcpt.10way,2.54mm,grey Headers & Wire Housings 10 WAY GREY MK II RECP Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector Type = Mark IINumber of Positions = 10ReceptacleMating Polarization Method = CenterWith Mating Polarization SOCKET, IDC, CLASS 1, 10WAY Ribboncableconn.rcpt.10way,2.54mm,grey Plug; IDC; female; PIN:10; for ribbon cable; 1.27mm Multipole socket DIN 41651 10P, 1-215882-0, TE Connectivity TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 10 WAY GREY MK II RECP |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1120 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Switch Function | Unlatched |
Mechanical
| Color | Gray | Pitch | 2.54 mm |
| Weight | 0.002 | Packaging | Bulk |
| Wire Type | Ribbon Cable | Cable Exit | Without |
| Wire Gauge | 28 AWG, Stranded; 26-30 AWG, Solid | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Receptacle |
| Pitch - Post | 2.54 x 2.54 [.100 x .100] | Polarization | Center |
| 2nd Connector | Without | Housing Color | Gray |
| Mounting Type | No | Cable End Type | Without |
| Connector Type | Mark II | Contact Finish | Gold Over Nickel |
| Mounting Style | Wire | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic Polyester |
| Mounting Feature | Without | Package Quantity | Loose Piece |
| Primary Material | Receptacle | Cable Termination | IDC |
| Connector - Cable | plug | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 10 | Contact Termination | :IDC / IDT |
| Number of Positions | 10 | Contact Finish Thickness | 31.5µin (0.80µm) |
| 1st Connector Mounting Type | :Cable | 1st Connector Mounting Feature | 2x5 |
Product Info
| Spg | 140 | Type | IDC Connector |
| Gender | RCP | Series | AMP-LATCH |
| Features | Feed Through, Polarizing Key | Manufacturer | AMP-LATCH |
| Product Type | Receptacles / Sockets - Housings | Connection Type | Ribbon Cable |
| Number of Units | 1 | With Modem Control | Yes |
Documents & Media
Similar Parts

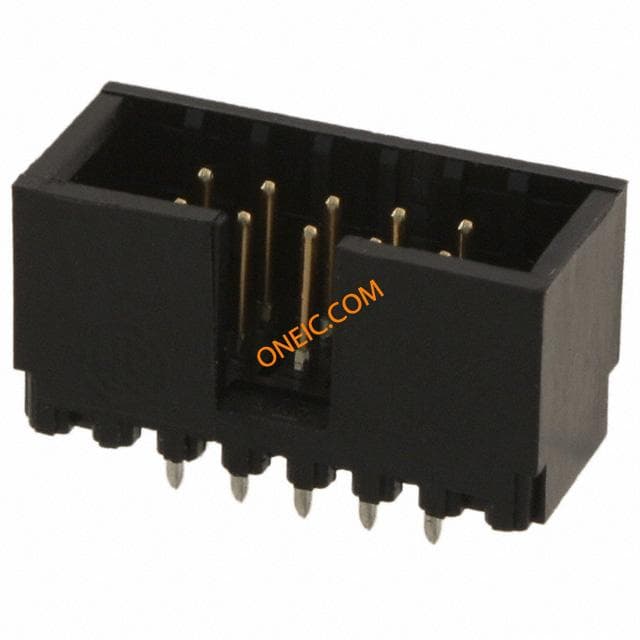

281271-1
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 10POS GOLD .100 HEADER, THT, VERTICAL, 2.54MM, 10WAY
1-111504-4
te connectivity / amp
Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 10POS UNIV I/O NO EARS TE Connectivity 1-111504 Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Headers & Wire Housings 10 UNIV I/O NO EARS LEAD FREE Conn Ejector Header PL 10 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 10PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, LATCHED, 10WAY RIBBONCONN.FEMALE,10WAY TE Connectivity AMP-LATCH 系列 2行 10路 2.54mm节距 电缆安装 公 印刷电路板管座 10 UNIV I/O, NO EARS,LEAD FREE
1-100103-0
te connectivity / amp
Connector Accessories 10 POS Strain Relief Nylon Bag Accessories (AMP-LATCH) CONN STRAIN RELIEF 10POS 10 way Strain relief,nylon,grey,mil-type Headers & Wire Housings 10P.A/L.STRAIN REL. Connector Accessories 10 POS Strain Relief Nylon Bag Product Highlights:Strain ReliefNumber of Positions = 10Search Keywords:ribbon cable connector system, hardware, STRAIN RELIEF, 10WAY 10wayStrainrelief,nylon,grey,mil-type Strain Relief Clip 10P, 1-100103-0, TE Connectivity TE Connectivity 10路 应力释放支架, 使用于 AMPLATCH 系列 10P.A/L.STRAIN REL.
1-111506-6
te connectivity / amp
Conn Ejector Header HDR 10 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 10POS UNIV I/O SLOT Headers & Wire Housings 010 UNIV I/O 30DP SLOT LTCH Conn Ejector Header HDR 10 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/O10 PositionsPlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, LATCHED, 10WAY 010 UNIV I/O 30DP SLOT LTCH
1-1634688-0
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole AMP-LATCH Novo Receptacle Connectors CONN HEADER 10POS .100 VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 10P BOX HEADER VERT Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX,STRAIGHT, 10WAY, 2.54MM 10way2rowverticalthroughholeheader Socket; IDC; male; PIN:10; straight; THT; gold plated; 2.54mm TE Connectivity AMP Latch 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A
191-2801-110
Amphenol Spectra-Strip
Flat Cables 28 AWG Ribbon .050 Zip 10 Cond 100" FLAT CABLE 10PTS AWG28 Planar/ribbon cable,1.27mm pitch,10 way Flat Cables 28 AWG Ribbon .050 Zip 10 Cond 100' Flat Cable 10Conductors 28AWG 30.48m Tinned Copper Gray/Red Edge 300V 1A RIBBON CABLE, 10WAY, PER M, 28AWG, 300V RIBBON CABLE, 10WAY, 30.5M, 28AWG, 300V cable, planar(flat), gray pvc insul w/1 red edge, 10 conductor, 28 awg stranded Cable: ribbon; 1.27mm; stranded; Cu; 10x28AWG; PVC; grey; 30,5m Ribbon Cable 1.27 mm 10xAWG 28, 191-2801-110, Amphenol Amphenol Spectra-Strip 系列 无屏蔽 带状电缆

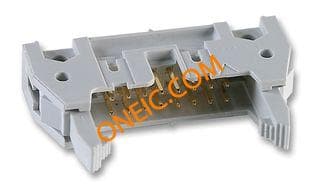

1-828588-0
TE Connectivity
TE Connectivity AMP LATCH Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination HEADER, STRAIGHT, 10WAY EJECTORHDR,10WAY,2.54MM

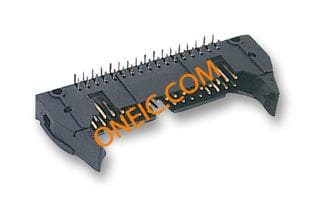

1-828584-0
