1-172165-2
| Manufacturer | |
| Description | Conn Housing PL 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG HOUSING 2POS .163" Mini Mate-n-lok cable plug housing 2-way Pin & Socket Connectors PLUG HSG 2P .163 Conn Housing PL 2 POS 4.2mm Crimp ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MiniMate-n-lokcableplughousing2-way 2CIR MINI U-M-N-L PLUG RED |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 是 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 600 | Frequency - Center | 带有 |
| Connector - Voltage Input | Mini-Universal MATE-N-LOK | ||
Mechanical
| Color | Red | Depth | 23.7mm |
| Pitch | 4.2 mm | Width | 10.8 |
| Length | 23.7 | Sealed | Not Sealed |
| Lock Type | Positive Lock | Packaging | Bulk |
| Body Color | 红色 | Contact Type | Male or Female |
| Pitch - Post | 4.14 [.163] | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | TinnedBrass |
| Fastening Type | Latch Lock | Mounting Style | CableMount |
| Number of Rows | 1 | Package / Case | Plug |
| Housing Material | Nylon | Package Quantity | One Piece Housing |
| Panel Mount Type | 不带 | Primary Material | Connector |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | Compatible Shell Size | 小型通用 MATE-N-LOK 插头护套 |
| Contact Layout, Typical | In-Line | Contact Finish Thickness | 0.99 [0.039] |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | MATE-N-LOK |
| Manufacturer | MATE-N-LOK | Product Type | Housing |
| Module/Board Type | No | Number of Circuits | 2 |
| Assembly Configuration | Without | For Use With/Related Products | Centerline Connector |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -20 – 105 °C [ -4 – 221 °F ] |
Documents & Media
Similar Parts
1-172157-9
te connectivity / amp
Conn Housing RCP 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT HOUSING 2POS .163" Pin & Socket Connectors RCPT HSG 2P .163 .163" Centerline, 600 V, 9.5 A max. Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 2CIR MINI U-M-N-L CAP BLCK
172328-1
te connectivity / amp
Conn Housing RCP 2 POS 4.14mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 2POS MINI-U M-N-L Female Compact Power Connector Socket,9.5A 600V ac/dc Power to the Board UNIV M-N-L HSG Conn Housing RCP 2 POS 4.14mm ST Loose Piece Conn Housing RCP 2 POS 4.14mm Crimp ST Cable Mount Bag Conn Housing RCP 2 POS 4.14mm Crimp ST Cable Mount Bag Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, RECEPTACLE, 2 WAY, NYLON, PANEL MINI-UM-N-LHSG,UNIVM-N-LHSG Plug/socket; wire-wire; male/female; w/o terminals; 4.14mm; PIN:2 Socket housing Pitch4.14 mm Poles 1 x 2 Single row / for panel mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172328-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9.5A 600 V 交流/直流, -20 → +105 °C MINI UNIVERSAL MATE-N-LOK CAP HOUSING 2P
770872-2
te connectivity / amp
Conn Power PIN 2 POS 4.14mm Solder ST Thru-Hole 2 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 2POS VERT .163 AU Pin & Socket Connectors 2P HEADER ASSY Conn Power PIN 2 POS 4.14mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 02P MINI UMNL HDR ASSY VO AU

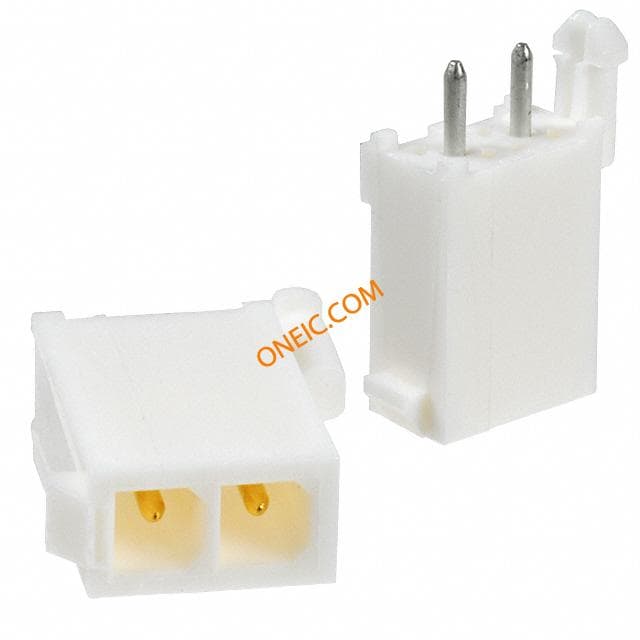

770166-2
