点击放大查看
1-1658527-9
| Manufacturer | |
| Description | Conn IDC Connector RCP 6 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 6POS .100 622 SERIES Conn IDC Connector RCP 6 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 6ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization 622-0641LF=FSKT IDC S 06 30AU |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Not applicable / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Mechanical
| Color | Blue | Pitch | 2.54 mm |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Body Color | 蓝色 | Cable Exit | With |
| Cable Type | 带状电缆 | Wire Gauge | 26-28 AWG, Stranded or Solid |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center & Military | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | No |
| Cable End Type | Without | Connector Type | 622 Series |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Thermoplastic |
| Mounting Feature | Without | Cable Termination | IDC |
| Mating Orientation | With | Number of Contacts | 6 |
| Number of Positions | 6 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | IDC Connector | Gender | RCP |
| Features | Feed Through; Polarizing Key, Strain Relief | Product Type | 连接器 |
| Connection Type | Ribbon Cable | ||
Similar Parts
2-1761603-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER IDC 6POS VERT BLUE TE Connectivity 2-1761603 Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC HDR 6P VERT BLUE LOW PRO Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 62.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, IDC, 2.54MM 6WAY HEADER,PIN,IDC,AMP-LATCH,6POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 6路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 6P VERT BLUE
2-1761606-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings IDC LOW PRO HDR 6P VERT LG LAT BLUE Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 6POS VERT GOLD TE Connectivity 2-1761606 Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 62.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, SHROUDEDHDR,MALE,6WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 6P VERT LG LAT
2-1761679-1
te connectivity / amp
Conn Ejector Header HDR 6 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER IDC 6POS VERT BLUE Headers & Wire Housings IDC LOW PRO HDR 6P VERT BLUE Conn Ejector Header HDR 6 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDC LOW PRO HDR 6P VERT BLUE

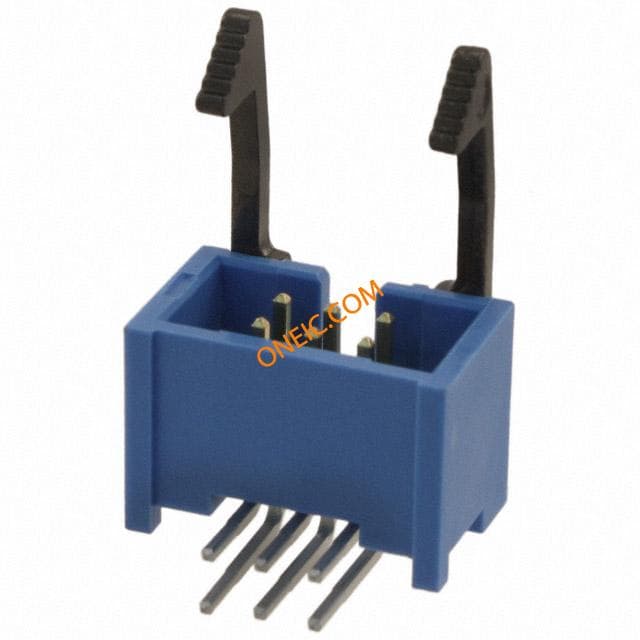

2-1761607-1
