1-1586041-4
| Manufacturer | |
| Description | Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 14POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 14P Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 14POS, 4.2MM HEADER,RIGHTANGLE,VAL-U-LOK,14POS,DUALROW,UL94V-2,W/OPEGS 14P VAL-U-LOK R/A HDR V2 |
| Category |
Business
| Other Names | A30620 | Product Category | Pin & Socket Connectors |
| Standard Package | Trays | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 9 A |
Mechanical
| Pitch | 4.2 mm | Weight | 0.00001 |
| Packaging | Bulk | Row Spacing | 0.165" (4.20mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon |
| Primary Material | InterconnectSystem | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 14 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 14 |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | PE | Manufacturer | VAL-U-LOK |
| Product Type | Pin Header | Number of Circuits | 14 |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
1-106527-4
te connectivity / amp
Conn Housing RCP 14 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action 14P DUAC REC HSG Pin & Socket Connectors RECPT 14P W/POS LOCK AMP-DUAC 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HousingAMP-DUACReceptacle0 Power Positions14 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power
1-794954-4
te connectivity / amp
Conn Housing RCP 14 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RECEPT 14POS FREE HANGING Housing FH 14 way Rec 4.20mm Val-u-Lok Pin & Socket Connectors RECEPTACLE HSG 14P Conn Housing RCP 14 POS 4.2mm Crimp ST Product Highlights:HousingReceptacle4.20 mm CenterlineNumber of Circuits = 14Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING RECEPTACLE,HOUSING,VAL-U-LOK,14POS,DUALROW,UL94V-2 TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 14 路 直 母 压接连接器外壳 14P RCPT VAL-U-LOK V2

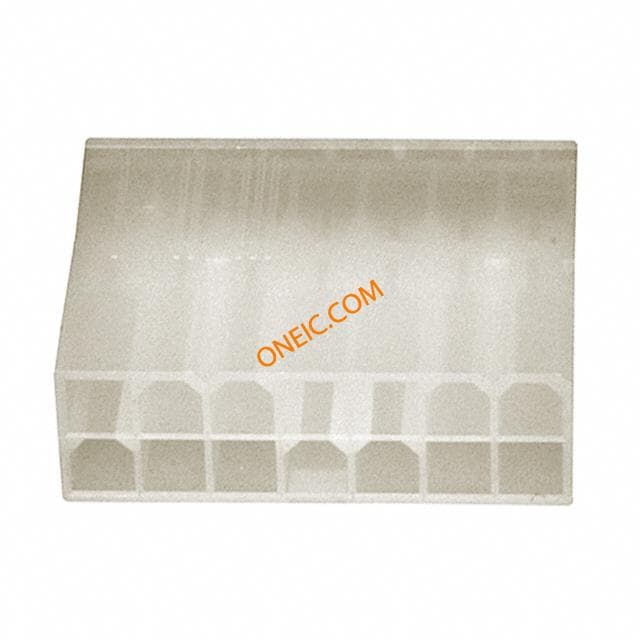

1-1586000-4
