1-1103636-1
| Manufacturer | |
| Description | Conn Heavy-Duty Rectangular PIN 10Signal/1Ground POS Screw ST Panel Mount Carton HTS Connectors and Accessories HE.10.STI.S HE 10 way screw terminal male insert Heavy Duty Power Connectors PIN INSERT 10+PE HE.10 SIZE 4 Conn Heavy-Duty Rectangular PIN 10Signal/1Ground POS Screw ST Panel Mount Carton Product Highlights:HE.10 SeriesInsertProduct Size = 4Contact Type = Screw TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, SCREW, 10WAY HE10wayscrewterminalmaleinsert Connector: HTS; male; HTS HE; PIN:10; 10+PE; size 4; 16A; 400V TE Connectivity HE 系列 10针 10P+E极 插头 大负荷电源连接器套件 |
| Category |
Business
| Lead Time | 73 Days | Subcategory | Connector Rectangular |
| Product Category | Heavy Duty Power Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA, DIN VDE 0110, DIN VDE 0627, SEV, UL |
| Tariff No | 85369010 | Approval Agency | :CSA, SEV, UL |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 400V | Current Rating (Max) | 16A |
Mechanical
| Size | 4 | Color | Gray |
| Weight | 0.076 | Material | thermoplastic |
| Boreholes | 57mm | Packaging | Carton |
| Termination | Screw | Mounting Type | Panel Mount |
| Connector Type | Insert | Contact Finish | Silver |
| Mounting Style | for cable | Number of Rows | :2 |
| Package / Case | size 4 | Insertion Force | Male |
| Contact Material | Brass | Housing Material | Polycarbonate (PC), Glass Filled |
| Package Quantity | 5 | Primary Material | Contact |
| Size / Dimension | see | Termination Style | Screw |
| 1st Contact Gender | :Pin | Diameter - Outside | 64mm |
| Number of Contacts | 10Signal/1Ground | Contact Termination | :Screw |
| Cross Section Shape | 0.5...2.5mm2 | Number of Positions | 10+Ground |
| Shell Size - Insert | :4 | Diameter - Small Outside | 27mm |
| Contact Material - Plating | silver plated | 1st Connector Mounting Type | :Panel |
| 1st Connector Mounting Feature | 10+PE | ||
Product Info
| Spg | 5 | Type | Heavy-Duty Rectangular |
| Gender | PL | Series | Han E |
| Pole Format | 10P+E | Manufacturer | HanESeries |
| Product Type | Inserts | Accessory Type | Contact |
| Adapter Series | HTS HE | Number of Units | 1 |
| Other Specifications | 33mm | For Use With/Related Products | Machined Crimp Contact |
Environmental
| NEMA Frame Size | :IP65 | Operating Temperature | -40°C ~ 125°C |
Documents & Media
Similar Parts
1-1102271-2
te connectivity / amp
Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece HTS Connectors and Accessories CONN HOUSING HB SERIES SIZE 4 Heavy Duty Power Connectors HB HOUSING SIZE 4 Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece Product Highlights:HB SeriesHousingProduct Size = 4Dimensions (L x H x W) = 93.0 x 28.5 x 43.5 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HB.10.AG-LB
2-1102283-2
te connectivity / amp
Connector Accessories Housing Die Cast Aluminum Black Finish Loose Piece HTS Connectors and Accessories CONN HOUSING SIZE 4 HB SIDE CLIP HTS Connectors and Accessories Product Highlights:HB SeriesHousingProduct Size = 4Dimensions (L x H x W) = 93.0 x 28.5 x 43.5 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HB-K.10.AGD-LB
1-1102283-2
te connectivity / amp
Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Connectors CONN HOUSING W/CVR SZ4 HB Heavy Duty Power Connectors HB.10.AGD-LB Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 Enclosure: for HTS connectors; HTS; size 4; with cover HB.10.AGD-LB
1-1102505-1
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum CONN HOOD TOP SZ4 PG29 HD HD.24.STO-VS.1.29.G
1106427-4
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Black Finish Loose Piece Heavy Duty Connectors CONN HOOD TOP SZ4 M25 EMV-K HD Connect, Hood EMV-K.10/24.STO.1.M25.G Heavy Duty Power Connectors Conn Acc Hood Type M25 Die Cast Alum Connector Accessories Hood Die Cast Aluminum Black Finish Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDCONNECT,HOODEMV-K.10/24.S TE Connectivity EMV-K 系列 电源连接器外壳 EMVK10/24.STO.1M25G
1106428-1
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Loose Piece Heavy Duty Connectors CONN HOOD CPLG SZ4 M25 HB
1106430-4
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece HTS Connectors and Accessories CONN HOOD HB.10.STS.1.M25.G HE Connector, Hood HB.10.STS.1.M25.G Heavy Duty Power Connectors HB HOOD SIZE 4 M25 Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDCONNECTOR,HOODHB.10.STS.1 TE Connectivity HB 系列 电源连接器外壳 HB.10.STS.1.M25.G
1106433-3
te connectivity / amp
HD.24.SG-LB.2.M32.G Heavy Duty Connectors CONN HOUSING SZ4 M32 HD Heavy Duty Power Connectors HD.24.SG-LB.2.M32.G Connector Accessories Rectangular Housing Die Cast Aluminum Silver Gray Loose Piece Connector Accessories Rectangular Housing Die Cast Aluminum Silver Gray Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650
2-1102276-8
te connectivity / amp
HBKZ10SG-ZVGR.2.16Z HTS Connectors and Accessories CONN HOUSING SZ4 PG16 HB-K Heavy Duty Power Connectors HBKZ10SG-ZVGR.2.16Z
1-1102276-2
te connectivity / amp
HB.10.SG-LB.2.16.Z CONN HOUSING SZ4 PG16 HB HB.10.SG-LB.2.16.Z Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650
1-1103637-1
te connectivity / amp
HE.10.BU.S HTS Connectors and Accessories HE 10 way screw terminal female insert Heavy Duty Power Connectors SKT INSERT 10+PE HE.10 SIZE 4 Conn Heavy-Duty Rectangular SKT 10Signal/1Ground POS Screw ST Panel Mount Carton Conn Heavy-Duty Rectangular SKT 10Signal/1Ground POS Screw ST Panel Mount Carton Product Highlights:HE.10 SeriesInsertProduct Size = 4Contact Type = Screw TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, SCREW, 10WAY HE10wayscrewterminalfemaleinsert Connector: HTS; female; HTS HE; PIN:10; 10+PE; size 4; 16A; 400V TE Connectivity HE 系列 10针 10P+E极 插座 大负荷电源连接器套件
1106430-2
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Connectors CONN HOOD TOP SZ4 M25 HB Heavy Duty Power Connectors HB.10STO-GR.1.M25.G Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HB.10STO-GR.1.M25.G
2-1102261-6
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Black Finish Loose Piece Heavy Duty Connectors CONN HOOD SIDE SZ4 PG16 HB-K Heavy Duty Power Connectors HB-K.10.STS.1.16.G HTS Connectors and Accessories HTS Connectors and Accessories Product Highlights:HB-K SeriesHoodProduct Size = 4Dimensions (L x H x W) = 73.0 x 50.0 x 43.0 mmLocking Device Type = Locking Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 CONN HOOD SIDE ENTRY SZ4 PG16 HB-K.10.STS.1.16.G
1-1102271-1
te connectivity / amp

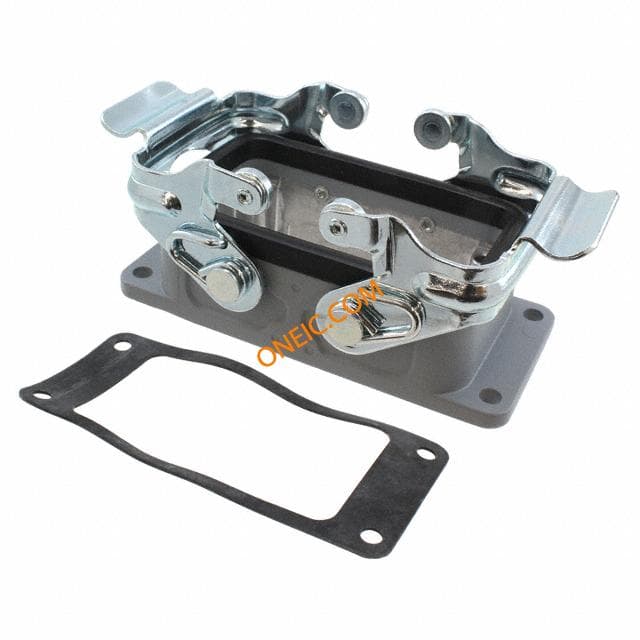

Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece HTS Connectors and Accessories HB.10.AG-VS HE 10 way through panel base,Size 4 Heavy Duty Power Connectors HB HOUSING SIZE 4 HE10waythroughpanelbase,Size4 Enclosure: for HTS connectors; HTS; size 4 TE Connectivity HE 系列 大负荷电源连接器套件
