1-1103402-1
| Manufacturer | |
| Description | Connector Accessories Male Insert 5 POS Screw Terminal Hard Silver Plated Loose Piece HTS Connectors and Accessories CONN INSERT PIN HA.4 SERIES HA 4 way screw terminal male insert,10A Heavy Duty Power Connectors PIN INSERT SZ 1 4+PE HA.4 Connector Accessories Male Insert 5 POS Screw Terminal Hard Silver Plated Loose Piece Product Highlights:HA.4 SeriesInsertProduct Size = 1Contact Type = Screw TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, SCREW, 4WAY HA4WAYSCREWTERMINALMALEI Connector: HTS; male; HTS HA; PIN:5; 4+PE; size 1; 10A; 250V TE Connectivity HA 系列 电源连接器插件 HA.4.Sti.S |
| Category |
Business
| Product Category | Heavy Duty Power Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA, DIN VDE 0110, DIN VDE 0627, SEV, UL |
| Tariff No | 85369010 | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 250V | Contact Resistance | 2.5mΩ |
| Current Rating (Max) | 10A | Insulation Resistance | 1000MΩ |
Mechanical
| Size | 1 | Color | Beige |
| Weight | 0.014 | Packaging | Bulk |
| Termination | :Screw | Mounting Type | screw terminal |
| Connector Type | Insert | Contact Finish | Silver |
| Mounting Style | for cable | Number of Rows | :2 |
| Package / Case | size 1 | Contact Material | Brass |
| Housing Material | Polycarbonate (PC) | Package Quantity | 10 |
| Primary Material | IndustrialRectangular | Size / Dimension | see |
| Termination Style | Screw | 1st Contact Gender | :Pin |
| Number of Contacts | :4 | Contact Termination | :Screw |
| Number of Positions | 4+Ground | Shell Size - Insert | :1 |
| Contact Layout, Typical | see | Wire Gauge or Range - mm2 | 0.5...2.5mm2 |
| Contact Material - Plating | silver plated | 1st Connector Mounting Feature | 4+PE |
Product Info
| Spg | 10 | Type | Insert |
| Gender | Male | Series | HA.4 |
| CAD Drawing | 3D CAD Model | Manufacturer | HTS |
| Product Type | Inserts | Adapter Series | HTS HA |
| Number of Units | 1 | RF Family/Standard | 1103402 |
Environmental
| NEMA Frame Size | :IP40, IP65 | Operating Temperature | -40°C ~ 125°C |
Documents & Media
Similar Parts
1-1102416-7
te connectivity / amp
Connector Accessories Hood Plastic CONN HOOD PG11 THREAD HD.7 SER Connector Accessories Hood Plastic Product Highlights:HD.7 SeriesHoodProduct Size = 1Dimensions (L x H x W) = 26.50 x 50.00 x 33.00 mmLocking Device Type = Side Clip at Housing Bottom
1106406-3
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Connectors CONN HOOD SIDE SZ1 M20 HA.3 HD Connector, Hood HA.3.STW.1.M20.G HA.3.STW.1.M20.Z HA.3.STW.1.M20.Z Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDCONNECTOR,HOODHA.3.STW.1.
1-1102101-7
te connectivity / amp

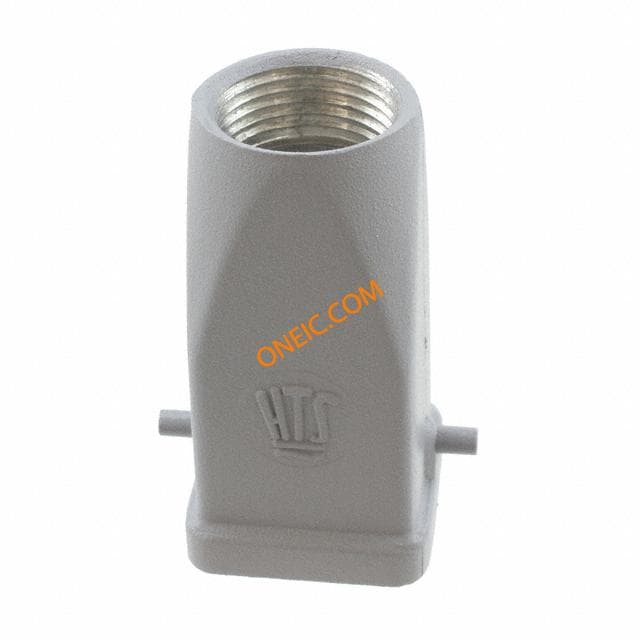

Connector Accessories Rectangular Hood Die Cast Zinc Alloy Silver Gray Finish Loose Piece HTS Connectors and Accessories CONN HOOD PG11 THREAD HA.3 SER Heavy Duty Power Connectors HOOD SZ 1 PG11 HA.3.STO.1.11.Z Connector Accessories Rectangular Hood Die Cast Zinc Alloy Silver Gray Finish Loose Piece Product Highlights:HA.3 SeriesHoodProduct Size = 1Dimensions (L x H x W) = 26.50 x 52.00 x 26.50 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HOOD, TOP ENTRY, SIZE 1, PG11, 1 LEVER Enclosure: for HTS connectors; HTS; size 1; Locking: for latch TE Connectivity 插座 电源连接器护罩 , 面板安装 HA.3.STO.1.11.Z
