1-104069-2
| Manufacturer | |
| Description | Conn Shrouded Header HDR 24 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER R/A .050 24POS 30AU Headers & Wire Housings RA DUAL HDR 24P 1012 24 SYSTEM 50 HDR DRRA SHRD |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 23 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Approved Countries | CSA LR7189, UL E28476 | RoHSELV Compliance | ELV compliant, 5 of 6 Compliant |
| Protection Features | With | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 30 VAC | Voltage - Supply | 30 |
| Voltage - Rated AC | 30 | Connector Impedance | 制动器闭锁 |
| Voltage - Breakdown | 500 | Current Rating (Max) | 1 |
| Insulation Resistance | 5,000 | Voltage - Protection Rating (VPR) | 500 V |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Base Type | 带有 | Packaging | Tube |
| Shrouding | Yes | Body Color | 黑色 |
| Row Spacing | 0.100" (2.54mm) | Stabilizers | Without |
| Termination | Solder | 2nd Connector | With |
| Contact Shape | Round | Housing Color | Black |
| Mounting Type | Hold Down Post | Connector Type | Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Thru Hole |
| Number of Rows | 2 | Shell Material | 2- 面 |
| Height (Inches) | 0.350" (8.89mm) | Insert Material | 铜合金 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Mounting Feature | 压具柱体 | Package Quantity | Tube |
| Panel Mount Type | 通孔 | Termination Style | Through Hole |
| Diameter - Outside | .381 mm [ .015 in ] | Number of Contacts | 24 |
| Termination Finish | Matte Tin-Lead | Number of Positions | 24 |
| Mounting Hole Diameter | 带有 | Contact Length - Mating | 0.125" (3.18mm) |
| Termination Post Length | 2.54 [0.100] | Contact Finish Thickness | 30µin (0.76µm) |
| Static Discharge Shielding | 不带 | Termination Finish Thickness | 150 – 250 |
Product Info
| Note | Note 1: Hold down posts located as shown for 16 through 100 position headers.; | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU System 50 |
| Key Type | 否 | Manufacturer | AMP |
| Product Type | Header Assembly | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature Range | -65 â +105 |
| Operating Temperature | -65 – 105 | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
Documents & Media
Similar Parts
2-487938-4
te connectivity / amp
Conn Housing RCP 24 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 24POS .050 DUAL ROW FFC & FPC Connectors 024 HOUSING 50CL DR .050 X .100 AMPMODU System 50 Product Highlights:HousingHousing Type = Housing - Receptacle24 PositionsNumber of Rows = DualWith Mating Connector LockSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 024 HOUSING FFC 50CL DR

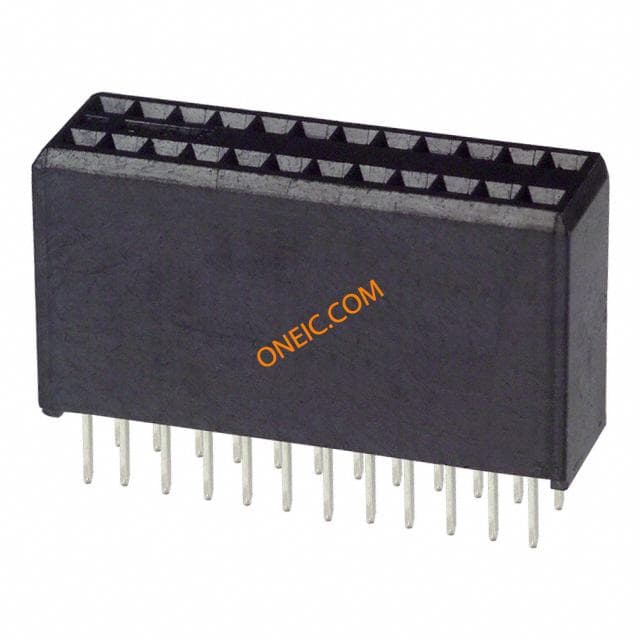

5-104078-9
