1-103670-6
| Manufacturer | |
| Description | Conn Shrouded Header HDR 17 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 17POS 15AU Headers & Wire Housings 17 MTE HDR SRST LATC 792 Conn Shrouded Header HDR 17 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 17 MTE HDR SRST LATCH W/HLDWN |
| Category |
Business
| Tradename | AMPMODU | Other Names | A28794 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Latched | Contact Resistance | 15 mΩ |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 600 V |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 13.59 mm [ .535 in ] | Length | 45.72 mm [ 1.8 in ] |
| Packaging | Tube | Body Color | 黑色 |
| Lead Style | 正方形 | Row Spacing | 2.54 mm |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Mounting Style | 带有 | Number of Rows | 1 |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Thermoplastic | Mounting Feature | 压具 |
| Package Quantity | 11 | Panel Mount Type | 垂直 |
| Termination Style | Through Hole | 1st Connector Type | 带罩 |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 17 |
| Termination Finish | 带有 | Contact Tail Length | 2.54 µm [ 100 µin ] |
| Number of Positions | 17 | Compatible Shell Size | 母端护套组件 |
| Contact Length - Post | 3.3 mm [ .13 in ] | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡铅 | Contact Length - Mating | 0.230" (5.84mm) |
| Termination Post Length | 5.84 mm [ .23 in ] | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU MTE |
| Pattern Type | 否 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | Thermal Resistance of Package | .69 mm [ .027 – .08 in ] |
Documents & Media
Similar Parts
1-104257-6
te connectivity / amp

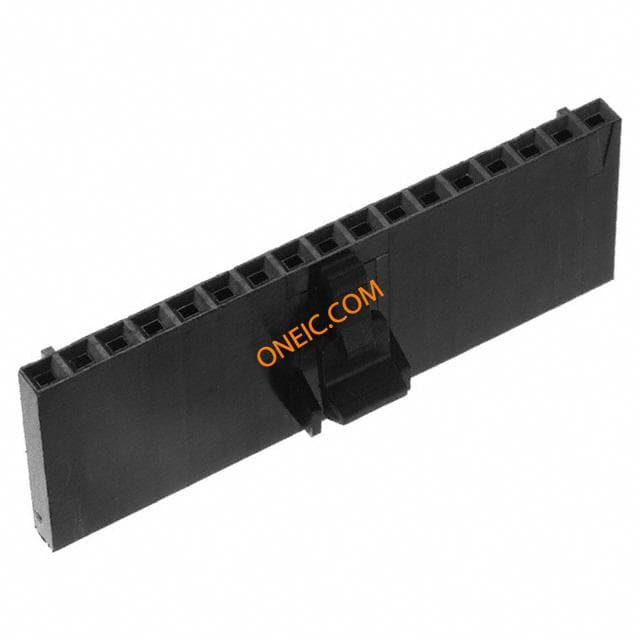

Conn Housing RCP 17 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 17POS .1" POL UNLOAD Headers & Wire Housings 17 RCPT HSG SR LATCH .100 Conn Housing RCP 17 POS 2.54mm Crimp ST Product Highlights:HousingNot PreloadedNumber of Positions = 17Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 17 路 直 母 电缆安装 PCB 连接器外壳 17 MTE RCPT HSG SR LATCH .100
