1-103653-5
| Manufacturer | |
| Description | Conn Housing PL 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 16POS .1" POL UNLOAD Headers & Wire Housings 16 SHRD PIN HSG SR LATCH Conn Housing PL 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 MTE SHRD PIN HSG SR LATCH |
| Category |
Business
| Tradename | AMPMODU | Other Names | A28757 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Switch Function | Detent Latching | Voltage - Supply | 250 VAC |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3/Contact A |
| Voltage - Protection Rating (VPR) | 600 VACrms | ||
Mechanical
| Color | Black | Depth | 24.13 mm |
| Pitch | 2.54 mm | Height | 6.6 mm |
| Length | 43.05 mm [ 1.69 in ] | Lock Type | 带有 |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | 22-30 AWG | Row Spacing | 2.54 mm |
| Contact Type | Male Pin | Polarization | Latched |
| 2nd Connector | With | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Crimp, Insulation Displacement Crimp (IDC) |
| Number of Rows | 1 | Package / Case | Pin |
| Insert Material | 磷青铜 | Locking Feature | Detent Latching |
| Housing Material | Thermoplastic | Length - Overall | 45.59 mm |
| Package Quantity | 1 | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Mating Orientation | With |
| Number of Contacts | 16 | Contact Termination | Crimp |
| Number of Positions | 16 | Compatible Shell Size | 公端 |
| Mounting Hole Diameter | 带有 | Center Contact Material | 2.54 [.100] |
| Contact Layout, Typical | 同轴 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | MTE |
| Preloaded | No | Coded, Keyed | No |
| Product Type | Housing | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -65C to 105C |
Documents & Media
Similar Parts
104505-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP Headers & Wire Housings MTE PIN 22-26AWG 104505-6 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 22-26 AWG PLTD
104505-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 26-22 AWG TIN Headers & Wire Housings PIN 26-22 AWG TIN 104505-8 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 22-26 AWG PLTD
5-104506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 28-32 AWG TIN Headers & Wire Housings MTE PIN LP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN LP
6-103900-5
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 16 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 16MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-104257-5
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 16POS .1" POL UNLOAD AMPMODU MTE IDC Receptacle housing 16P Headers & Wire Housings 16 MTE RCPT HSG SR L Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 16Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR,HOUSING,RECEPTACLE,MTE,AMPMODU,16POSITION,LATCH AMPMODU Single Row 2.54 mm Pitch Not Preloaded Receptacle Housing 16 MTE RCPT HSG SR LATCH .100

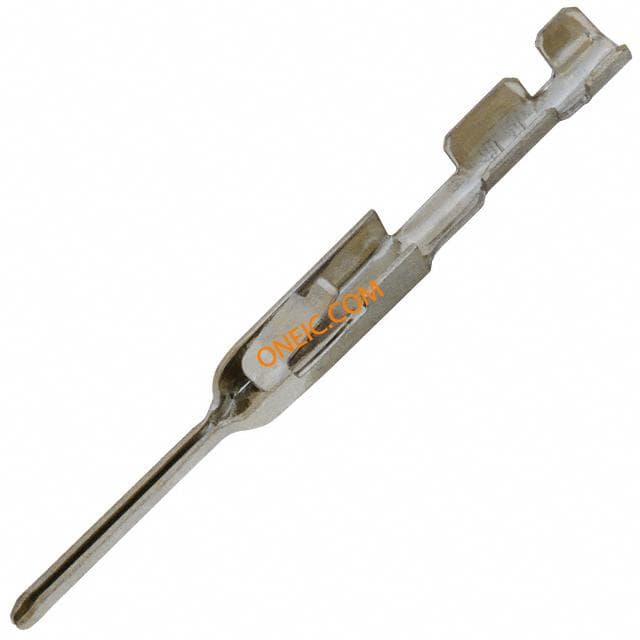

104505-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPINLP AMPMODU 50 Tin Over Nickel 26-22 AWG Crimp Pin IDC Contact MTE PIN LP
6-103645-5
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 16 MTE RCPT SR LATCH .100CL Headers & Wire Housings 16 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Individual Product Highlights:HousingPreloadedNumber of Positions = 16Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-103648-5
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 UNLOADED Headers & Wire Housings RCPT 16P .100 UNLOAD .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 16路 2.54mm节距 母 IDC 连接器 , 电缆安装 16 MTE RCPT HSG SR RIB .100CL
104505-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 15GOLD CRIMP Headers & Wire Housings PIN 26-22 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPINLP MTE PIN LP
5-104506-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 28-32AWG 15GOLD CRIMP Headers & Wire Housings PIN 32-28 AWG 5-104506-5 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU Contact;Pin;MTE(IDC);PhosphorBronze;32-28AWG;300VAC;3A(Contact) MTE PIN LP
104506-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 32-28 AWG GOLD Headers & Wire Housings PIN 32-28 AWG GOLD Contacts-AMPMODU Machine Applied Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 28-32 AWG PLTD
5-104505-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP MTE Contact,pin,0.12-0.40mm² Headers & Wire Housings PIN 26-22 PHBZ/AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPIN22-26AWGPLTD TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀金镀镍触点 MTE PIN 22-26 AWG PLTD
5-104505-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact male crimp 26-22AWG AmpModu Headers & Wire Housings PIN 26-22 PHBZ/SN Conn Contact PIN 1 POS Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT, SOCKET, 26-22AWG, CRIMP Contactmalecrimp26-22AWGAmpModu TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MTE PIN 22-26 AWG PLTD
5-104505-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact male crimp 26-22AWG AmpModu Headers & Wire Housings PIN 26-22 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT, PIN, 26-22AWG, CRIMP AMPMODUPinContact,MTE(IDC)Series,26-22AWG TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀金镀镍触点 MTE PIN LP
5-104506-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Terminals MTE PIN 28-32 AWG Contacts-AMPMODU Machine Applied CONN PIN 28-32AWG GOLD CRIMP Contacts-AMPMODU Machine Applied Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE (IDC) AMPMODU 32 to 28 AWG Pin Wire Crimp Snap-In MTE PIN 28-32 AWG PLTD
6-103734-5
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 16 MTE RCPT SR LATCH .100CL Headers & Wire Housings 16 MTE RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
6-103644-5
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 16 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Individual Product Highlights:HousingPreloadedNumber of Positions = 16Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-104506-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 28-32AWG GOLD CRIMP Headers & Wire Housings MTE PIN 32-28 5-104506-6 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 28-32 AWG PLTD
104505-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Headers & Wire Housings MTE PIN 22-26 AWG MTE PIN 22-26 AWG PLTD

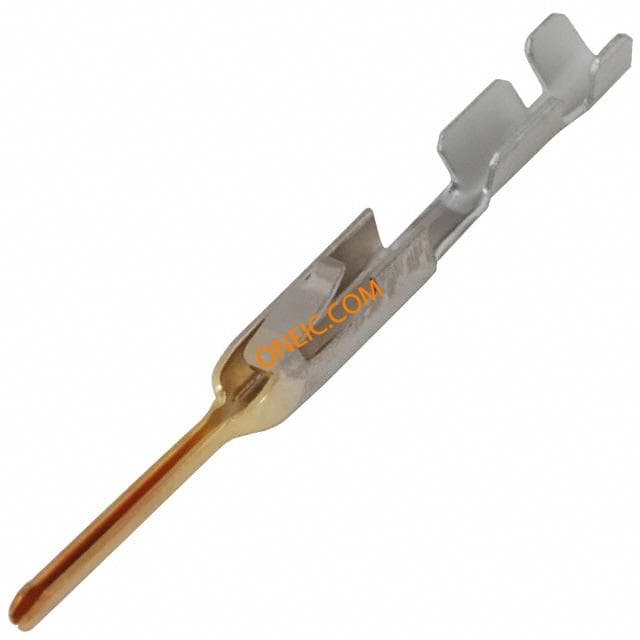

5-104505-5
