点击放大查看
1-103648-2
| Manufacturer | |
| Description | Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 13POS .100 UNLOADED Headers & Wire Housings RCPT 13P .100 UNLOAD 13 MTE RCPT HSG SR RIB .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 VAC | Connector Impedance | 刺破式压接 (IDC), 压接 |
| Current Rating (Max) | 3 | Voltage - Protection Rating (VPR) | 600 VACrms |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 2.24 mm [ .098 in ] | Length | 32.96 mm [ 1.3 in ] |
| Lock Type | 不带 | Packaging | Bulk |
| Body Color | 黑色 | Wire Gauge | 22-30 AWG |
| Row Spacing | 2.54 mm | Contact Type | Female Socket |
| Polarization | Ribbed | 2nd Connector | Without |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Crimp, Insulation Displacement Crimp (IDC) | Mounting Style | Wire |
| Number of Rows | 1 | Package / Case | Receptacle |
| Insert Material | 磷青铜 | Housing Material | Thermoplastic |
| Package Quantity | 1 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 13 | Contact Termination | Crimp |
| Number of Positions | 13 | Compatible Shell Size | 公端 |
| Mounting Hole Diameter | 带有 | Center Contact Material | 2.54 [.100] |
| Contact Layout, Typical | 同轴 | ||
Product Info
| Note | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | Type | Housing |
| Gender | RCP | Series | MTE |
| Preloaded | No | Coded, Keyed | No |
| Product Type | Housing | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -65 – 105 |
Documents & Media
Similar Parts
1-103639-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 13POS PCB TIN Headers & Wire Housings 13MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 13Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE HDR SRST LATCH .100CL
1-103669-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 13POS PCB TIN Headers & Wire Housings 13 MTE HDR SRST LATC .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 13Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE HDR SRST LATCH W/HLDWN
1-104503-2
te connectivity / amp
Conn Housing PL 13 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 13POS .100 UNLOAD .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 13Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE PIN HSG SR RIB .100CL
1-103653-2
te connectivity / amp
Conn Housing PL 13 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts 13 MTE SHRD PIN HSG SR LATCH Headers & Wire Housings 13 MTE SHRD PIN HSG SR LATCH .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 13Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 13 路 直 公 电缆安装 PCB 连接器外壳
6-103634-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 13POS T/H TIN Headers & Wire Housings 13 MTE HDR SRRA LTCH .100CL LF .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE HDR SRRA LTCH.100CL LF
1-104479-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG TIN CRIMP Headers & Wire Housings CONTACT TIN 24-20AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .64 - 1.52 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 24-20AWG, CRIMP CONTACT,RECEPTACLE,AMPMODU,SHORTPOINT,24-20AWG AMPMODU Tin 24-20 AWG Crimp Socket Contact SHORT POINT RECP CONT LP
6-103669-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 13POS PCB TIN Headers & Wire Housings HDR PIN 1X13C VRT THRU HOLE Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 13Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE HDR SRST LATCH W/HLDWN
104479-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 20-24AWG 30AU CRIMP Headers & Wire Housings SHORT POINT CONTACT 60000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .64 - 1.52 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE SHORT POINT CONT 30 DPLX STMPD
6-103904-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 13POS 30AU Headers & Wire Housings 13 MTE HDR SRRA LATCH W/HLDWN 13 MTE HDR SRRA LATCH W/HLDWN 13 MTE HDR SRRA LATCH W/HLDWN Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
6-103639-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 13POS PCB TIN Headers & Wire Housings 13 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 13Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE HDR SRST LATCH .100CL
1-103634-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 13POS PCB TIN Headers & Wire Housings 13 MTE HDR SRRA LATCH .100CL 13 MTE HDR SRRA LATCH .100CL 13 MTE HDR SRRA LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-103670-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 13POS 15AU Headers & Wire Housings 13 MTE HDR SRST LATCH W/HLDWN Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 13Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE HDR SRST LATCH W/HLDWN
1-103638-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 13POS T/H GOLD Headers & Wire Housings 13 MTE HDR SRST LATC 608 1-103638-2 Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 13Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE HDR SRST LATCH .100CL
1-104481-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 28-32AWG 30AU CRIMP AMPMODU Socket Contact 32-28 AWG Headers & Wire Housings CONTACT GLD 32-28AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = .64 - 1.52 mmWire Range = 0.03-0.09² [32-28] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 32-28AWG, CRIMP Contact;Socket;ShortPoint;CopperAlloyC7025;32-28AWG;300VAC;750V TE Connectivity AMPMODU Short Point 系列 母 压接接线端子, 压接, 镀金触点 SHORT POINT RECP CONT LP
6-104909-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 13POS 15AU Headers & Wire Housings 13MTE HDR SRST LATCH W/HLDWN .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 13Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE HDR SRST LATCH W/HLDWN
6-104910-2
te connectivity / amp
Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 13POS GOLD Headers & Wire Housings 13 MTE HDR SRST LATCH .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 13Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 13 MTE HDR SRST LATCH .100CL
6-103660-2
te connectivity / amp
Conn IDC Connector RCP 13 POS 2.54mm IDT ST Cable Mount Individual .100 AMPMODU Headers, Housings & Contacts 13 MTE SHRD PIN SR LATCH .100 Headers & Wire Housings 13 MTE SHRD PIN SR LATCH .100 .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 13Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

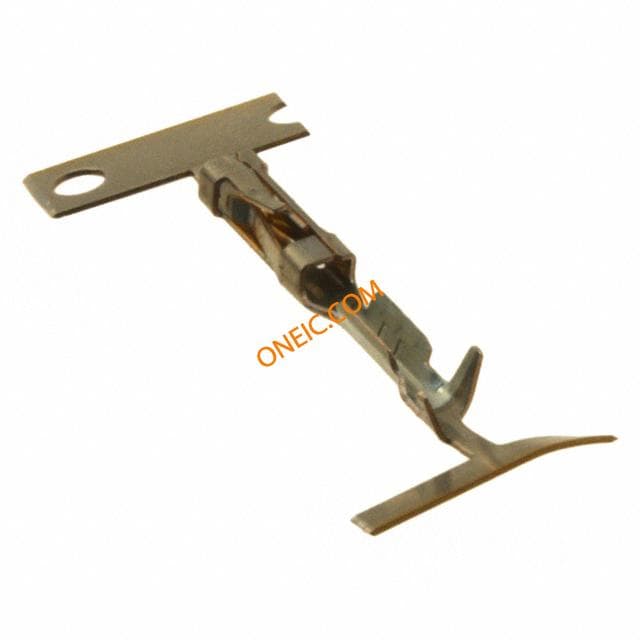

1-104481-0
