1-102619-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 30POS 15AU Headers & Wire Housings ACTION PIN VERT 30P dual .150 end Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 30Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 30 MODII HDR DRST SHRD .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 96 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 750 V | Switch Function | Detent Windows |
| Connector Impedance | 制动器窗口 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 750 Vrms |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 不带 | Lock Type | 带有 |
| Packaging | Tray | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | 否 |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Detent Lock |
| Mounting Style | 标准 | Number of Rows | 2 |
| Shell Material | 4- 面 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Package Quantity | 96 | Panel Mount Type | 通孔 |
| Termination Style | Through Hole | 1st Connector Type | 带罩 |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 30 | Termination Finish | 带有 |
| Number of Positions | 30 | Length - Post (Mating) | 8.08 mm |
| Mounting Hole Diameter | 带有 | Contact Length - Mating | 0.318" (8.08mm) |
| Termination Post Length | 3.18 mm | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 不带 | Shell Size, Connector Layout | 3.81 mm [ .15 in ] |
| 1st Connector Mounting Feature | 否 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Ingress Protection | 带罩 |
| Operating Temperature | - 55 C to + 105 C | Operating Temperature - Junction | 否 |
Similar Parts
2-87456-6
te connectivity / amp

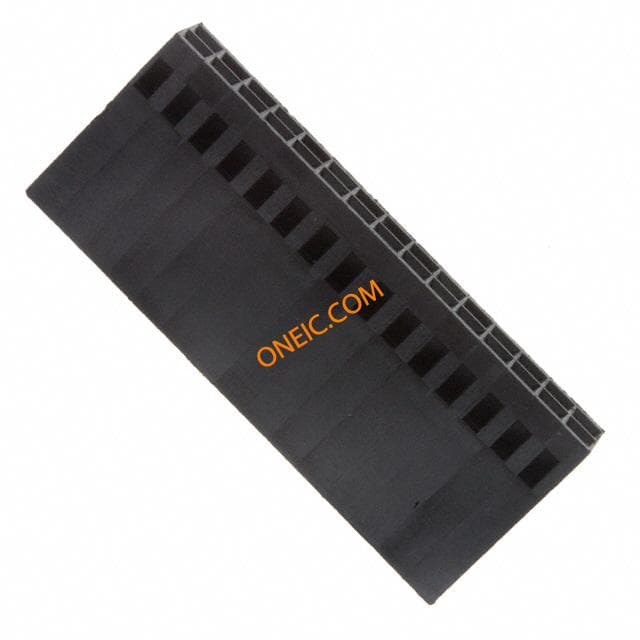

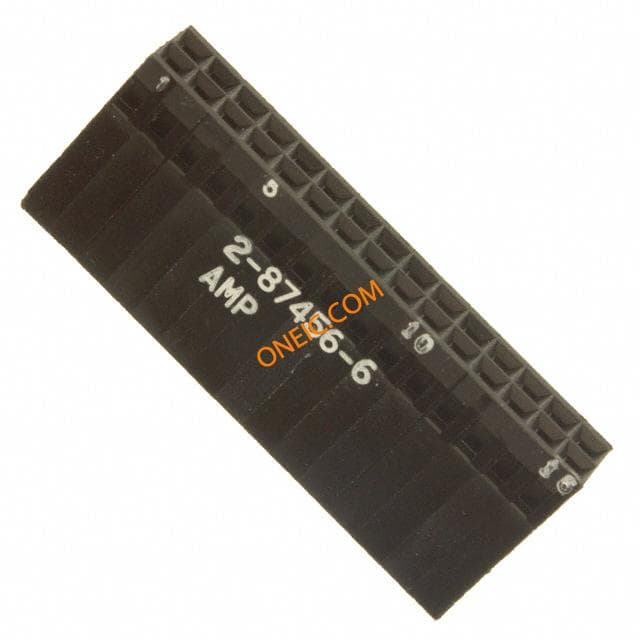

Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 30POS .100 DUAL ROW Headers & Wire Housings HSG 2X15C F/H Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 30Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 30POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;30;250VAC;3A;750V 30 MODIV HSG DR MRKD .100CL
2-87456-5
te connectivity / amp
Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 30POS .100 DUAL ROW Headers & Wire Housings MOD IV HSG DUAL 30P Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 30Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 30POS, 2.54MM CONNECTOR,HOUSING,RECEPTACLE,MODIV,30POSITION,DUALROW 30 MODIV HSG COMP DR .100CL
2-87631-6
te connectivity / amp

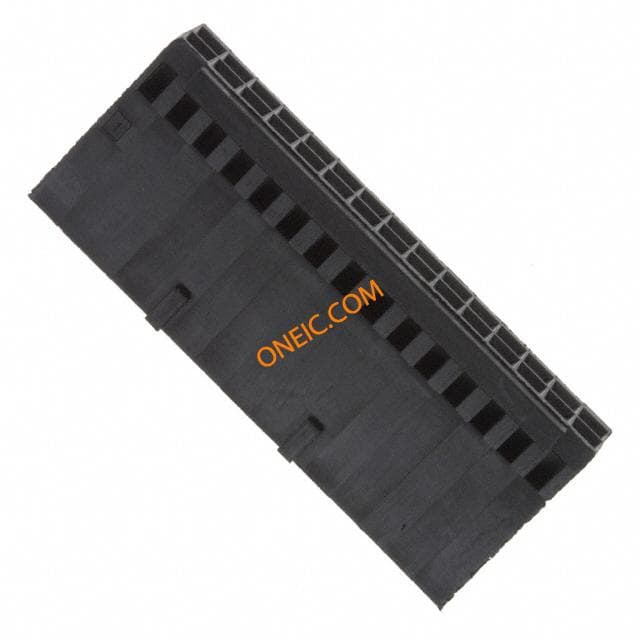

Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 30POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 30 POS Conn Housing RCP 20 POS 2.54mm ST Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 30Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 2.54MM, 30WAY CONNECTOR,HOUSING,RECEPTACLE,MODIV,30POSITION,DUALROW,MARKED AMPMODU 30 Position Dual Row 2.54 mm Pitch Crimp Receptacle Housing Connector 30 MODIV HSG DR MRKD .100 POL
87733-6
te connectivity / amp
Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings HSG 2X15C F/H POL .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 30POS .100 POL W/STR 87733-6 Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 30 MODIV HSG W/STR RLF DR MRKD
2-87631-5
te connectivity / amp

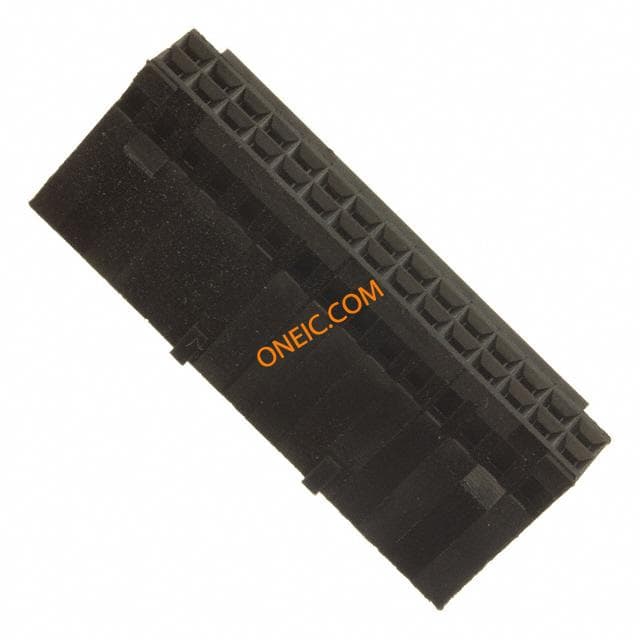

Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 30POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 30 POS Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 30 MODIV HSG COMP DR .100 POL
