1-102387-0
| Manufacturer | |
| Description | Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 POL DUAL Housing FH 50way 2row Rec 2.54mm AmpModu Headers & Wire Housings CNTR PLRZD HG 50 DBL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;ModIV;Dual;50;250VAC;3A;750VNo Crimp housing Pitch2.54 mm Poles 50 straight / with polarization / Double row AMPMODU MOD IV, 1-102387-0, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 50 路 直 母 电缆安装 PCB 壳体 50 MODIV HSG COMP DR .100 POL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | ULListed,CSACertified,RoHSCompliant,ELVCompliant |
| Approval Agency | CSA,UL | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250 VAC | Number of Poles | 50 |
| Voltage - Supply | 250 VAC | Contact Resistance | 12 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 压接 |
| Voltage - Breakdown | 750V | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000Megohms | Voltage - Supply (Min) | 250VAC |
| Connector - Voltage Input | Crimp | Voltage - Protection Rating (VPR) | 750 V |
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 2.54 mm | Width | 7.23mm |
| Height | 7.23 mm | Length | 68.07mm |
| Lock Type | 不带 | Packaging | Bulk |
| Body Color | 黑色 | Wire Gauge | 22-30 AWG |
| Orientation | 直 | Row Spacing | 0.100" (2.54mm) |
| Termination | 12Milliohms | Contact Form | Female Socket |
| Contact Type | Female Socket | Lead Spacing | 0.100" (2.54mm) |
| Polarization | Yes | Housing Color | Black |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Receptacle | Mounting Style | Cable |
| Number of Rows | 2 | Connector Style | straight |
| Insert Material | 铍铜 | Housing Material | Thermoplastic |
| Length - Overall | 68.07 mm | Package Quantity | 1 |
| Primary Material | InterconnectSystem | Connector - Cable | No |
| Pin Hole Diameter | 0.1" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Color - Connectors | black |
| Number of Contacts | 50 | Contact Termination | Crimp |
| Number of Positions | 50 | 1st Connector Gender | Female |
| Compatible Shell Size | 公端 | Mounting Hole Diameter | 带有 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mod IV |
| Features | Polarizing Key | Main Purpose | Polarizing Key |
| Manufacturer | AMPMODU/MODIVSeries | Product Type | Receptacles / Sockets - Housings |
| Connection Method | Wire-Board | Other Specifications | 否 |
| Output Configuration | Free Hanging (In-Line) | Matrix (Columns x Rows) | 0.100x0.100in. |
| For Use With/Related Products | Centerline Double-Row Connector | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
104128-9
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 50POS Headers & Wire Housings 50P HEADER W/LATCHES Connector Ejector Header 50 Positions 2.54mm Solder ST Thru-Hole 050 LOPRO HDR SP 30DP LATCH
1-104351-8
te connectivity / amp
Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 50POS DUAL 15AU Headers & Wire Housings 50 MODII HDR DRST B/ 500 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 50Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST B/A W/HD
1-103310-0
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 50POS GOLD Headers & Wire Housings 050 HEADER RA 15DP 245 Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 050 LOPRO HDR RA 15DP
1-5103310-0
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 50POS GOLD Headers & Wire Housings 100X100 HDR 2X025P R/A LOW PROFILE Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedConnector Style = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM Header,ThroughHole;Shrouded;RightAngle;CopperAlloy;Thermoplastic;50 A/L LOW PRO HDR 50P RA BLACK
1-104354-8
te connectivity / amp
Conn Unshrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings OBSOLETE CONN HDR BRKWAY 50POS R/A DUAL

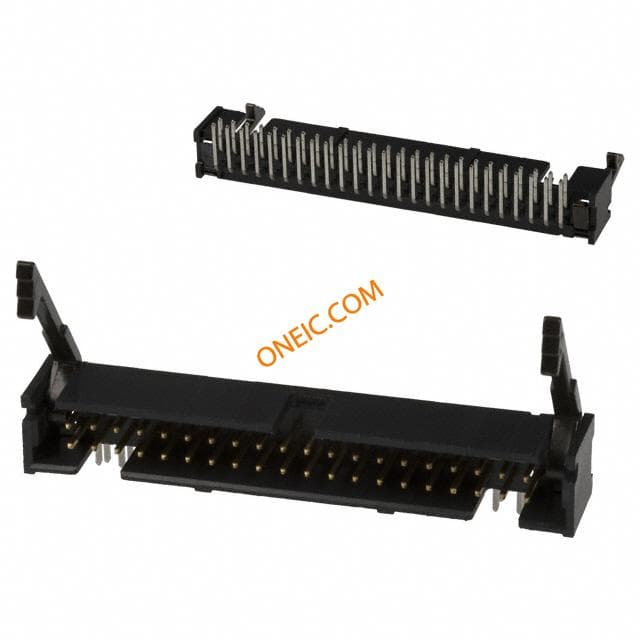

104130-9
