52409
| Manufacturer | |
| Description | Spring Spade Terminal 16-22AWG 23.7mm 6.35mm Tin Loose Piece Terminals PIDG LS SPAD 22-16 6 Ring and Spade Tongue Terminals CONN SPADE 16-22 AWG #6 PIDG Spade terminal, PIDG,red,AWG 22-16, M3.5 Spring Spade Terminal 16-22AWG 23.7mm 6.35mm Tin Loose Piece Product Highlights:Terminal Shape = Spring Spade, LongReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, SPADE/FORK, #6, CRIMP, RED ForkCrimpTerminal;22to16AWG;300VAC;PIDG;0.125in.(Max.);Tin;Red TE Connectivity PIDG 系列 红色 绝缘 压接铲形连接器 , M3.5 螺栓 TERMINAL,PIDG SPR SPD 22-16 6 |
| Category |
Business
| Product | Fork Terminals | Other Names | A09040 |
| Product Category | Terminals | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | Standards | RoHSCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | No |
Electrical
| Voltage Rating | 300 VAC | Voltage - Supply | 300 |
Mechanical
| Color | Red | Shape | SPADE-031 |
| Width | 6.35mm | Finish | Tin |
| Weight | 0.00091 | Material | Phosphor Bronze |
| Packaging | Bulk | Cable Type | Regular Wire |
| Heavy Duty | No | Insulation | Insulated |
| Screw Size | 6 | Wire Gauge | 16-22 AWG |
| Body Finish | PIDG | Termination | Crimp |
| Contact Shape | Spring Spade, Long | Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 3.5 mm | Terminal Type | Spring, Snap |
| Angle of Throw | Straight | Connector Type | :Fork / Spade Tongue |
| Contact Finish | Tin | Connector Style | Straight |
| Width - Overall | 0.25" | Contact Material | Phosphor Bronze |
| Diameter - Shank | 0.138in. | Insulation Color | :Red |
| Length - Overall | 0.933" (23.70mm) | Package Quantity | Loose Piece |
| Primary Material | Fork | Insulation Height | Insulation Support |
| Color - Connectors | Red | Material Thickness | 0.033in. |
| Contact Tail Length | 0.84 [0.033] | Insulation Diameter | 3.18 [.125] Max. |
| Insulation Material | Nylon | Width - Outer Edges | 0.250" (6.35mm) |
| Length - Termination | 0.414" (10.52mm) | Material - Insulation | Polyamide (PA), Nylon |
| Tongue Inside Opening | 0.140" (3.56mm) | Supplier Device Package | PIDG |
| Wire Gauge or Range - AWG | 509 â 3,260 | Wire Gauge or Range - mm2 | 0.30-1.40² [22-16] |
| Length - Ring Center to Termination | 0.238" (6.05mm) | ||
Product Info
| Type | Spring Spade Terminal | Gender | Female |
| Series | 524 | Features | Serrated Termination |
| Manufacturer | AMP | ||
Documents & Media
Similar Parts
217202-1
te connectivity / amp
Terminals Tool Die Set Pneumatic Crimping Head Crimpers 626 T HD CRIMPER Hand Tools 626 T HD CRIMPER T-HEAD CRIMPER NORM CLOSED 626 T HD CRIMPER,NORM CLOSED
47386
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers DAHT PIDG CRIMPER 22-16 AWG Hand Tools DAHT PIDG CRIMPER 22-16 AWG HAND TOOL PIDG 16-26AWG Connector Accessories PIDG Terminal and Splice Hand Tool (16-22)AWG CRIMP TOOL CERTI-CRIMP PIDG 22-16 DAHT
59239-4
te connectivity / amp

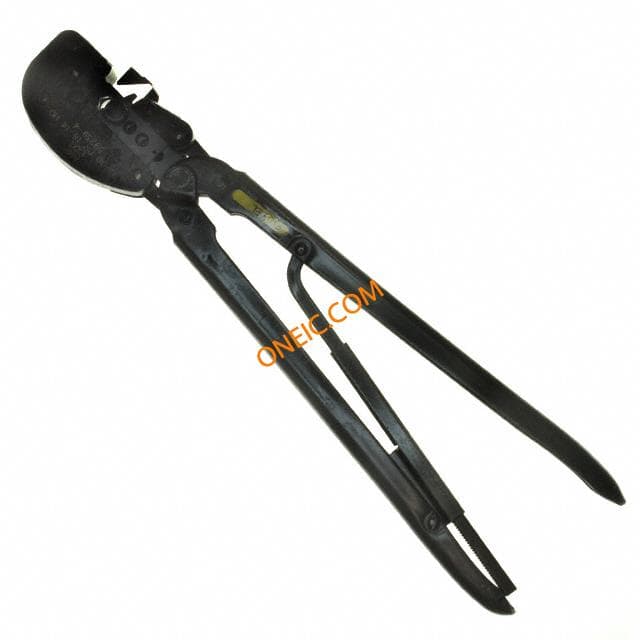

General Hand Tool Used In The Aircraft And Military Industries Crimpers HHHT CRIMP TOOL 12-10 AWG HAND CRIMPER PIDG 10-12 Hand crimp tool, PIDG,PLASTI-GRIP,yellow Connector Accessories Hand Crimp Tool HAND CRIMP TOOL, RATCHET, PIDG TERMINALS & SPLICES Crimper;HeavyHeadRatchet;PIDG,PLASTI-GRIP;12-10AWG;306106-2,306107-2Die Crimping tool, 59239-4, TE Connectivity TE Connectivity CERTI-CRIMP 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 , 适用于16 → 10 AWG 线规格 HHHT PIDG 12-10
58423-1
te connectivity / amp
DIE, RBY IS9252 Punches & Dies DIE SET INSUL. 22-10 DIESET SPLICE TERMINALS PRO-CRIMPER III PIDG PLASTI-GRIP die set Pro-Crimper Iii Hand Tool DIE, PIDG/PLASTIGRIP AMP;DIESETONLY;INSULATEDTERMINALS;22-10AWG Crimping dies, 58423-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 10 AWG 线规格
69151-1
te connectivity / amp

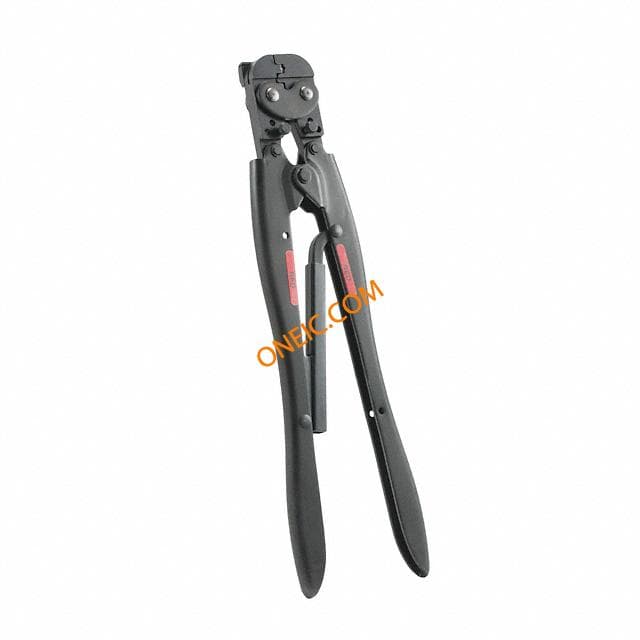

DAHT PIDG S EXP 22-16 Crimpers DAHT PIDG S EXP 22-16 TOOL HAND PIDG S EXP 16-22AWG DAHT Pidg S Exp 22-16 TE Connectivity CERTI-CRIMP 系列 PIDG Butt Splices 压接工具 , 适用于22 → 16 AWG 线规格
