| Manufacturer | |
| Description | Ring Tongue Terminal 16-18AWG 21.44mm 7.92mm Nickel Loose Piece Terminals TFE-RING 18-16 ORG #8 Ring and Spade Tongue Terminals TERMINAL,PIDG TFL R 18-16 8 Ring terminal,PIDG, STRATO-THERM, orange Ring Tongue Terminal 16-18AWG 21.44mm 7.92mm Nickel Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDG, STRATO-THERMBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B Ringterminal,PIDG,STRATO-THERM,orange TE Connectivity PIDG, STRATO-THERM 系列, 橙色 镀镍触芯 环形压接端子 , M4 螺栓, 4.34mm内环直径, 21.44mm总长 TERMINAL,PIDG PTFE R 18-16 8 |
| Category |
Business
| Product | Ring Terminals | Product Category | Terminals |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | No |
Electrical
| Voltage - Max | 300 | Voltage Rating | 300 VAC |
| Voltage - Supply | 300 | ||
Mechanical
| Color | Orange | Shape | RING-052 |
| Finish | Nickel | Length | .855 |
| Weight | 10 | Material | Copper |
| Packaging | Bulk | Thickness | 0.031" (0.79mm) |
| Cable Type | Regular Wire | Heavy Duty | No |
| Insulation | Insulated | Screw Size | 8, M4 |
| Wire Gauge | 16-18 AWG | Termination | Crimp |
| Contact Shape | Ring Tongue | Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 4 mm | Terminal Type | Circular |
| Cable Diameter | 1.4mm² | Cable Material | Yes |
| Contact Finish | Nickel | Terminal Style | Straight |
| Connector Style | Straight | Contact Material | Copper |
| Length - Overall | 0.855" (21.72mm) | Package Quantity | Loose Piece |
| Diameter - Barrel | Standard | Insulation Height | Insulation Support |
| Termination Style | 环形端子 | Color - Connectors | Orange |
| Insulation Diameter | 3.43 [.135] Max. | Insulation Material | Teflon |
| Number of Positions | 1 | Width - Outer Edges | 0.312" (7.92mm) |
| Diameter - Barrel ID | .145 | Material - Insulation | Teflon® |
| Tongue Inside Opening | 0.84 [0.033] | Thread/Screw/Hole Size | M4 |
| Supplier Device Package | PIDG, STRATO-THERM | Support Panel Thickness | Insulation Support |
| Wire Gauge or Range - AWG | 1,600 â 2,800 | Wire Gauge or Range - mm2 | 0.80-1.40² [18-16] |
| Outside Pipe Diameter (Max) | 7.92mm | Diameter - Outside, Non-Expanded | 3.43 mm [ .135 in ] |
Product Info
| Type | Ring Tongue Terminal | Gender | Female |
| Series | 508 | Features | High Temperature, Serrated Termination |
| Manufacturer | AMP | Other Specifications | 4.34mm |
Environmental
| Temperature Rating | 288 [550] | Operating Temperature | 288 C |
Documents & Media
Similar Parts
69733
te connectivity / amp
DIE PIDG STRATO 69710 18-16 Punches & Dies DIE PIDG 18-16 DIE PIDG STRATO 69710 18-16AWG
576781
te connectivity / amp

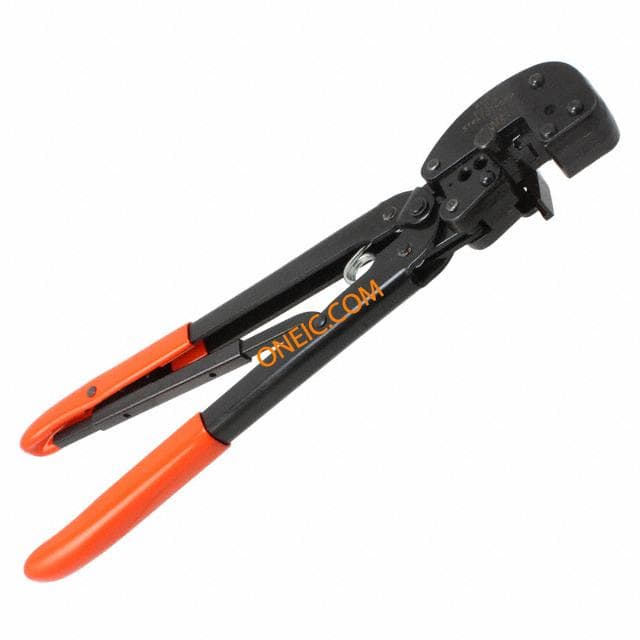

General Hand Tool Used In The Aircraft And Military Industries Crimpers HEAVY HD HT STRATO #16 TOOL HAND HVY HD STRATO 16AWG Crimping tool, 576781, TE Connectivity TE Connectivity CERTI-CRIMP 系列 PIDG STRATO-THERM Terminals 压接工具 , 适用于16 AWG 线规格 HEAVY HD HT, STRATO #16
