36919
| Manufacturer | |
| Description | Ring Tongue Terminal 1-(1/0)AWG 49.68mm 22.23mm Tin Loose Piece Terminals TERMINAL SOLIS RING Ring and Spade Tongue Terminals CONN RING 1/0 AWG #1/2 SOLIS Ring terminal, SOLISTRAND, M12, 1/0 AWG Ring Tongue Terminal 1-(1/0)AWG 49.68mm 22.23mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,RINGTOUNGE,SOLISTRAND,1/2,1-1/0AWG,STRAIGHT,CLOSEDBARREL TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M12 螺栓 TERMINAL SOLIS RING 1/0 1/2 |
| Category |
Business
| Product | Ring Terminals | Part # Aliases | MS20659-135 |
| Product Category | Terminals | Standard Package | Bulk |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | Safety Category | II 级 |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | Yes |
Electrical
| Core Type | Closed Barrel | ||
Mechanical
| Color | Not Required | Depth | 22.23 mm |
| Shape | RING-049 | Finish | Tin |
| Material | Copper | Max Load | 否 |
| Packaging | Bulk | Thickness | 1.78 [0.070] |
| Cable Type | Regular Wire | Heavy Duty | No |
| Insulation | Not Insulated | Screw Size | 2-Jan, M12 |
| Wire Gauge | 1-(1/0) AWG | Body Finish | SOLISTRAND |
| Termination | Crimp | Weight (g): | 22.467 |
| Body Material | Copper | Contact Shape | Ring Tongue |
| Mounting Type | Free Hanging (In-Line) | Stud/Tab Size | 12.7 mm |
| Terminal Type | Circular | Wire Diameter | 11.28 mm [ .444 in ] |
| Angle of Throw | Straight | Cable Diameter | 60.6mm² |
| Contact Finish | Tin | Plating - Body | Tin |
| Bundle Diameter | 11.28 mm | Connector Style | Straight |
| Contact Material | Copper | Length - Overall | 1.956" (49.68mm) |
| Package Quantity | Loose Piece | Primary Material | Ring |
| Cable Termination | 标准 | Insulation Height | Non-Insulation Support |
| Termination Style | Crimp | Material Thickness | 1.78 mm [ .07 in ] |
| Insulation Material | 否 | Number of Positions | 1 |
| Width - Outer Edges | 0.875" (22.23mm) | Thread/Screw/Hole Size | M12 |
| Supplier Device Package | SOLISTRAND | Termination Post Length | 11.28 mm [ .444 in ] |
| Contact Finish Thickness | 2.54 µm [ 100 µin ] | Diameter - Small Outside | 13.08 mm [ .515 in ] |
| Wire Gauge or Range - AWG | 83,700 â 119,500 | Wire Gauge or Range - mm2 | 41.00-60.00; [1-1/0] |
Product Info
| Type | Ring Tongue Terminal | Class | 2 |
| Gender | Female | Series | 369 |
| Features | Brazed Seam | Sealable | 否 |
| Check Slot | 否 | Manufacturer | AMP |
| Equipment Part Numbers | MS20659-135 | ||
Environmental
| Operating Temperature | 170 | ||
Documents & Media
Similar Parts
601075
te connectivity / amp

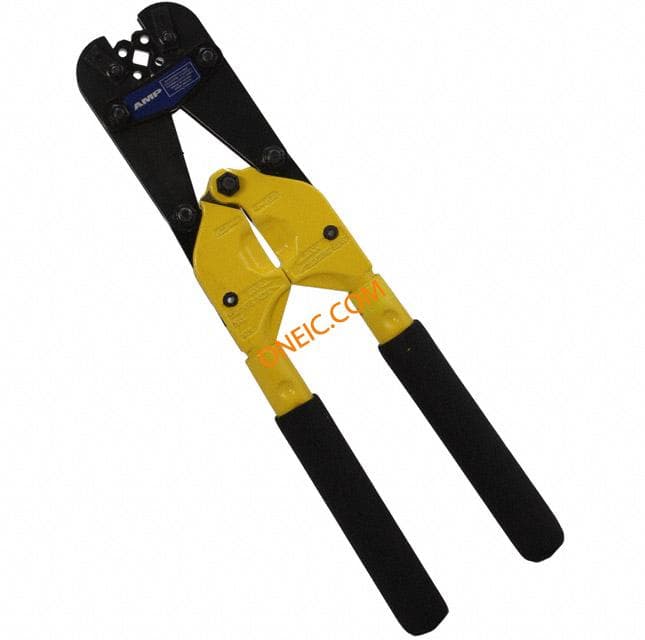

BANTAM ROTA-CRIMP TOOL Crimpers BANTAM ROTA-CRIMP TOOL TOOL HAND CRIMP ROTA-CRIMP Rota crimp tool-AMP solistrand terminal Bantam Rota-Crimp Tool Rota-Crimp Hand Tools HAND TOOL, BANTAM ROTARY CRIMP Rotacrimptool-AMPsolistrandterminal CRIMPTOOL TE Connectivity Bantam ROTA-CRIMP 系列 SOLISTRAND Crimp Terminals and Splices 压接工具 , 适用于6.7 → 60.5 mm² 线规格
48183
te connectivity / amp
PNEU HD, SOLIS 69015 1/0 Hand Tools PNEU HD SOLIS 69015 1/0 PNEU HEAD 1/0AWG STRATO-THERM Pneumatic Head For 69015
600372
te connectivity / amp
HEAD, BOX CRIMP Crimpers HEAD BOX CRIMP TOOL HEAD CRIMP SOLIS 1/0AWG
600850
te connectivity / amp
Receptacle Assembly, AMP SC To Bayonet Crimp Tool Crimpers ROTO-CRIMP TOOL ROTA CRIMP HAND CRIMPING TOOL Crimper;Ratchet;8-4/0AWG;SOLISTRANDSplices/Terminals;ROTA-CRIMP ROTO-CRIMP TOOL (ASI)
45436
te connectivity / amp

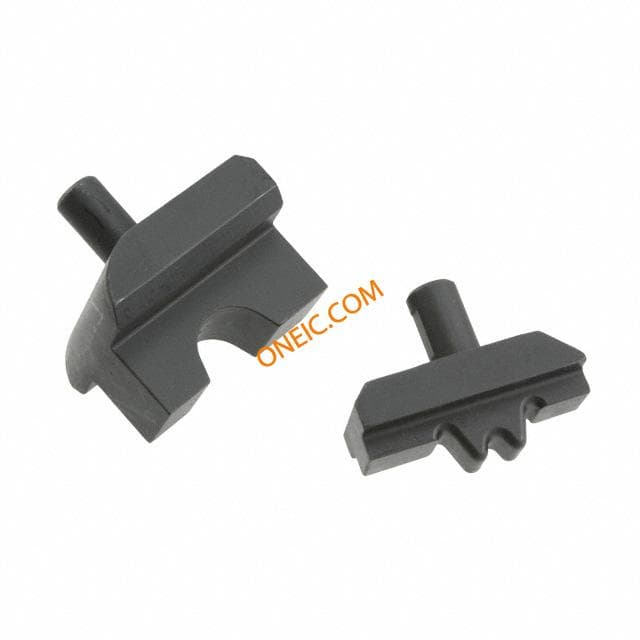

Conn Housing ST Punches & Dies DIE SOLIS 69099 1/0 TOOL DIE SOLIS 69099 1/0AWG DIE SOLIS 69099 1/0
