328996
| Manufacturer | |
| Description | Ring Tongue Terminal 14-16AWG 17.86mm 6.35mm Tin Loose Piece Terminals PIDG RING 16-14 4 Ring and Spade Tongue Terminals CONN RING 14-16 AWG #4 BLUE PIDG Ring terminal PIDG 16-14AWG Blue M2.5 Ring Tongue Terminal 14-16AWG 17.86mm 6.35mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,PIDGR16-14 TE Connectivity PIDG 系列, 蓝色 绝缘 镀锡触芯 环形压接端子 , M2.5 螺栓, 17.86mm总长 TERMINAL,PIDG R 16-14 4 |
| Category |
Business
| Product | Ring Terminals | Other Names | A1091 |
| Product Category | Terminals | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | No |
Electrical
| Voltage - Max | 300 | Voltage Rating | 300 VAC |
| Voltage - Supply | 300 | Connector Impedance | Sheared |
Mechanical
| Color | Blue | Shape | RING-041 |
| Finish | Tin | Length | .703 |
| Weight | .856 | Material | Copper |
| Packaging | Bulk | Thickness | 0.031" (0.79mm) |
| Cable Type | Regular Wire | Heavy Duty | No |
| Insulation | Insulated | Screw Size | 4 |
| Wire Gauge | 14-16 AWG | Termination | Crimp |
| Contact Shape | Ring Tongue | Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 2.84 mm | Terminal Type | Circular |
| Angle of Throw | Straight | Cable Diameter | 2.6mm² |
| Cable Material | Solid or Stranded | Contact Finish | Tin |
| Terminal Style | Straight | Connector Style | Straight |
| Width - Overall | 0.25" | Contact Material | Copper |
| Insulation Color | 蓝色 | Length - Overall | 0.703" (17.86mm) |
| Package Quantity | Loose Piece | Primary Material | Ring |
| Diameter - Barrel | Long | Insulation Height | Insulation Support |
| Termination Style | 环形端子 | Color - Connectors | Blue |
| Material Thickness | .31 | Contact Tail Length | 0.84 [0.033] |
| Insulation Diameter | 4.32 [.170] Max. | Insulation Material | Nylon |
| Number of Positions | 1 | Width - Outer Edges | 0.250" (6.35mm) |
| Material - Insulation | Polyamide (PA), Nylon | Tongue Inside Opening | .787 mm [ .031 in ] |
| Thread/Screw/Hole Size | M2.5 | Supplier Device Package | PIDG |
| Support Panel Thickness | Insulation Support | Contact Finish Thickness | 100 |
| Wire Gauge or Range - AWG | 2,050 â 5,180 | Wire Gauge or Range - mm2 | 1.25-2.00² [16-14] |
| Diameter - Outside, Non-Expanded | 4.32 mm [ .17 in ] | ||
Product Info
| Note | Available On-Tape for Automatic Termination. | Type | Ring Tongue Terminal |
| Gender | Female | Series | 328 |
| Features | Serrated Termination | Sealable | 否 |
| Check Slot | 否 | Manufacturer | AMP |
Environmental
| Operating Temperature | 170 | ||
Documents & Media
Similar Parts
59824-1
te connectivity / amp
Die Set For Connector/Terminal Tool Crimpers TETRA CRIMP TOOL TETRA-CRIMP HT ASSY TETRA-CRIMP crimp tool, PIDG, 22-10 AWG CRIMP TOOL, PIDG FASTON RECEPTACLES Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIPSplice/Terminal;904139-1,662903-2Die TE Connectivity Tetra-Crimp 系列 手工压接工具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals
59827-1
te connectivity / amp
TETRA-CRIMP DIE 16-14 Punches & Dies TETRA-CRIMP DIE 16-1 TOOL TETRA-CRIMP DIE 16-14AWG
58423-1
te connectivity / amp
DIE, RBY IS9252 Punches & Dies DIE SET INSUL. 22-10 DIESET SPLICE TERMINALS PRO-CRIMPER III PIDG PLASTI-GRIP die set Pro-Crimper Iii Hand Tool DIE, PIDG/PLASTIGRIP AMP;DIESETONLY;INSULATEDTERMINALS;22-10AWG Crimping dies, 58423-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 10 AWG 线规格
58433-3
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers TOOL W/DIE INS TERM TOOL CRIMP INSUL TERM W/DIE SET PRO-CRIMPER III hand crimping tool Connector Accessories Terminal Crimp Hand Tool CRIMP TOOL, PIDG AND PLASTI-GRIP TERMINALS Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIP,PIDGFASTONTerminals;58423-1Die TE Connectivity Pro-Crimper III 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 PRO CR ASSY, RBY IS9252
47387
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers 16-14AWG PIDG PLIER DAHT Hand Tools 16-14AWG PIDG PLIER DAHT TOOL HAND CRIMP PIDG 14-16 AWG CRIMP TOOL, PIDG, 16-14/20-16 AWG P.I.D.G. DAHT 16-14
314269-1
te connectivity / amp
Terminals Tool Die Set Pneumatic Crimping Head Hand Tools 16-14 PIDG IS9586 PNEU HD PNEU HEAD 16-14AWG PIDG IS9586 Pneumatic crimping head, PIDG, 16-14 AWG PNEUHD16-14PIDGIS9586
1-47387-0
te connectivity / amp
DA BAT TL HD 16-14 PIDG Hand Tools DA BAT TL HD 16-14 TOOL HEAD CRIMP 16-14AWG PIDG
91963-2
te connectivity / amp
S.D.E.PREM.DIE ASSY 16-14 PIDG Punches & Dies S.D.E.PREM.DIE ASSY 16-14 PIDG
679305-1
te connectivity / amp
Connector Accessories Crimping Head Hand Tools PLATFORM & TETRA CRMP HD ASSY TOOL HEAD TETRA CRIMP ADPT ASSY
47807-1
te connectivity / amp

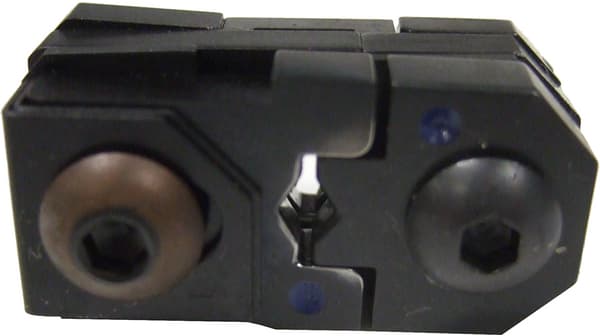

General Hand Tool Used In The Aircraft And Military Industries Punches & Dies DIE PIDG 69100 16-14 DIE PIDG 69100 16-14AWG Crimping dies, 47807-1, TE Connectivity DIE PIDG 69100 16-14
