324082
| Manufacturer | |
| Description | Ring Tongue Terminal 8AWG 36.2mm 12.14mm Tin Loose Piece Terminals RING TONGUE Ring and Spade Tongue Terminals CONN RING 8 AWG #1/4 TERMINYL Ring terminal Terminyl 8AWG M6 Ring Tongue Terminal 8AWG 36.2mm 12.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = TERMINYLBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 1/4IN, CRIMP, RED Terminal,RingTongue;RING-047;Copper;8AWG;1/4(M6);TERMINYL;0.250in. TE Connectivity TERMINYL 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M6 螺栓, 6.73mm内环直径, 36.2mm总长 TERMINAL,T-N R 8 1/4 |
| Category |
Business
| Product | Ring Terminals | Part # Aliases | MS25036-116 |
| Product Category | Terminals | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 00000000 |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | No |
Mechanical
| Color | Red | Depth | 12.14 mm |
| Shape | RING-047 | Finish | Tin |
| Weight | 0.331 | Material | Copper |
| Packaging | Bulk | Thickness | 0.040" (1.02mm) |
| Cable Type | Regular Wire | Heavy Duty | No |
| Insulation | Insulated | Wire Gauge | 8 AWG |
| Termination | Crimp | Body Material | Copper |
| Contact Shape | Ring Tongue | Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6.35 mm | Terminal Type | Circular |
| Connector Type | :Ring Tongue | Contact Finish | Tin |
| Plating - Body | Tin | Connector Style | Straight |
| Contact Material | Copper | Insulation Color | :Red |
| Length - Overall | 1.425" (36.20mm) | Package Quantity | Loose Piece |
| Insulation Height | Insulation Support | Color - Connectors | Red |
| Contact Tail Length | 1.09 [0.043] | Insulation Diameter | 6.50 [.256] Max. |
| Insulation Material | Nylon | Width - Outer Edges | 0.478" (12.14mm) |
| Material - Insulation | Polyamide (PA), Nylon | Supplier Device Package | TERMINYL |
| Wire Gauge or Range - AWG | 13,100 â 20,800 | Wire Gauge or Range - mm2 | 8.00² [8] |
Product Info
| Type | Ring Tongue Terminal | Class | 2 |
| Gender | Female | Series | 324 |
| Features | Serrated Termination | Manufacturer | AMP |
| Equipment Part Numbers | MS25036-116 | ||
Documents & Media
Similar Parts
8-35247-2
te connectivity / amp
Ring Tongue Terminal 8AWG 29.67mm 15.09mm Tin Loose Piece Terminals TERM R 8 1/4 TERM R 8 1/4 Ring and Spade Tongue Terminals CONN RING 8 AWG #1/4 SOLIS Ring and Spade Tongue Terminals Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,SOLIS R 8 1/4
33461
TE Connectivity AMP Connectors
Ring Tongue Terminal 8AWG 23.7mm 11.91mm Tin Loose Piece Terminals RING TONGUE Ring and Spade Tongue Terminals CONN RING 8 AWG #1/4 SOLIS Ring terminal, SOLISTRAND, M6, 8 AWG Ring Tongue Terminal 8AWG 23.7mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 1/4IN, CRIMP Terminal;RING-049;Copper;8AWG;1/4in.(M6);SOLISTRAND;0.265in.;Tin Ring terminal; M6; 8mm2; crimped; for cable; non-insulated; tinned Ring cable lug, blank 6.4 mm 6.7...10.5 mm², 33461, TE Connectivity TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M6 螺栓 TERMINAL,SOLIS R 8 1/4
1490597-1
te connectivity / amp
DIE ASSEMBLY,TERMINL #8 Punches & Dies DIE ASSEMBLY TERMINL #8 DIE SET 8AWG Crimping Dies For Solistrand Terminals And Splices
47820
te connectivity / amp

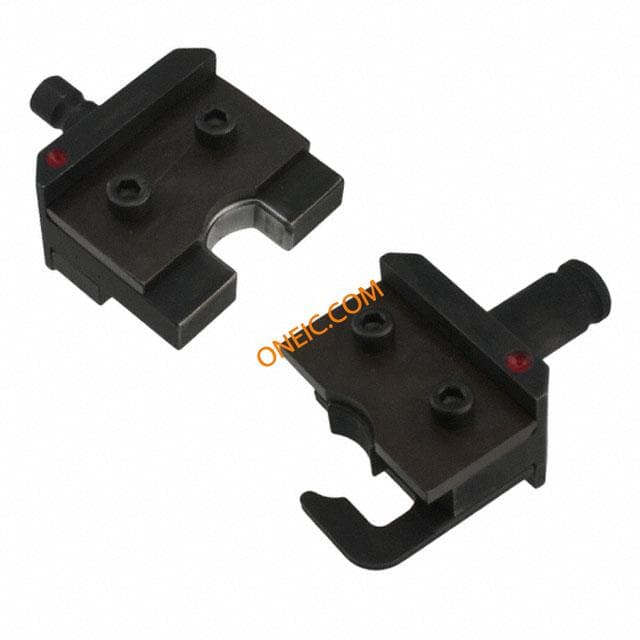

DIE TERMINYL 69051 #8 Punches & Dies DIE TERMINYL 69051 #8 DIE TERMINYL 69051 8AWG Crimping Die Consists Of A Stationary Die And A Moving Die DIETERMINYL69051#8 TE Connectivity 系列 压接工具模具 , 8 AWG 线规格, AMPOWER, TERMINYL and PLASTI-GRIP Terminals
