320554
| Manufacturer | |
| Description | PIDG Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Terminals PIDG RING 22-16 8 BULK Ring and Spade Tongue Terminals CONN RING 16-22 AWG #8 RED PIDG Ring terminal, PIDG, red, AWG 22-16, M4 PIDG Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR,
EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #8, CRIMP, RED TERMINAL,RINGTONGUE,PIDG,22-16AWG(MIL8),STRAIGHT,CLOSEDBARREL PIDG 22-16 AWG Straight Closed Barrel Ring Tongue Terminal TE Connectivity PIDG 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M4 螺栓, 4.34mm内环直径, 20.24mm总长 PIDG R 22-16 COMM 22-18 MIL 8 |
| Category |
Business
| Product | Ring Terminals | Product Category | Terminals |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85444920 |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | No |
Electrical
| Voltage Rating | 300 VAC | Voltage - Supply | 300 |
Mechanical
| Color | Red | Depth | 7.14 mm |
| Shape | RING-041 | Finish | Tin |
| Weight | 0.002 | Material | Copper |
| Packaging | Bulk | Thickness | 0.031" (0.79mm) |
| Cable Type | Regular Wire | Heavy Duty | No |
| Insulation | Insulated | Screw Size | 8 |
| Wire Gauge | 16-22 AWG | Termination | Crimp |
| Body Material | Copper | Contact Shape | Ring Tongue |
| Mounting Type | Free Hanging (In-Line) | Stud/Tab Size | 4 mm |
| Terminal Type | Circular | Angle of Throw | Straight |
| Connector Type | :Ring Tongue | Contact Finish | Tin |
| Plating - Body | Tin | Connector Style | Straight |
| Width - Overall | 0.281" | Contact Material | Copper |
| Insulation Color | :Red | Length - Overall | 0.797" (20.24mm) |
| Package Quantity | Loose Piece | Primary Material | Ring |
| Insulation Height | Insulation Support | Termination Style | Crimp |
| Color - Connectors | Red | Contact Tail Length | 0.79 [0.031] |
| Insulation Diameter | 3.18 [.125] Max. | Insulation Material | Nylon |
| Width - Outer Edges | 0.281" (7.14mm) | Material - Insulation | Polyamide (PA), Nylon |
| Supplier Device Package | PIDG | Wire Gauge or Range - AWG | 509 â 3,260 |
| Wire Gauge or Range - mm2 | 0.30-1.40² [22-16] | ||
Product Info
| Type | PIDG Ring Tongue Terminal | Gender | Female |
| Series | 320 | Features | Serrated Termination |
| CAD Drawing | 3D CAD Model | Manufacturer | AMP |
Documents & Media
Similar Parts
217202-1
te connectivity / amp
Terminals Tool Die Set Pneumatic Crimping Head Crimpers 626 T HD CRIMPER Hand Tools 626 T HD CRIMPER T-HEAD CRIMPER NORM CLOSED 626 T HD CRIMPER,NORM CLOSED
47386
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Crimpers DAHT PIDG CRIMPER 22-16 AWG Hand Tools DAHT PIDG CRIMPER 22-16 AWG HAND TOOL PIDG 16-26AWG Connector Accessories PIDG Terminal and Splice Hand Tool (16-22)AWG CRIMP TOOL CERTI-CRIMP PIDG 22-16 DAHT
59826-1
te connectivity / amp
TETRA-CRIMP DIE 22-18 Crimpers TETRA-CRIMP DIE 22-1 TOOL TETRA-CRIMP DIE 22-18AWG Application Tooling Lead Free Solder Processes
59824-1
te connectivity / amp
Die Set For Connector/Terminal Tool Crimpers TETRA CRIMP TOOL TETRA-CRIMP HT ASSY TETRA-CRIMP crimp tool, PIDG, 22-10 AWG CRIMP TOOL, PIDG FASTON RECEPTACLES Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIPSplice/Terminal;904139-1,662903-2Die TE Connectivity Tetra-Crimp 系列 手工压接工具 , 22 → 10 AWG 线规格, PIDG Splices/Terminals, Plasti-Grip Terminals
58423-1
te connectivity / amp
DIE, RBY IS9252 Punches & Dies DIE SET INSUL. 22-10 DIESET SPLICE TERMINALS PRO-CRIMPER III PIDG PLASTI-GRIP die set Pro-Crimper Iii Hand Tool DIE, PIDG/PLASTIGRIP AMP;DIESETONLY;INSULATEDTERMINALS;22-10AWG Crimping dies, 58423-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具模具 , 22 → 10 AWG 线规格
8-320554-1
te connectivity / amp
Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Terminals PIDG R 22-16 COMM 22-18 MIL 8 Ring and Spade Tongue Terminals CONN RING 16-22AWG #8 RED PIDG Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #8, CRIMP, RED PIDG R 22-16 COMM 22-18 MIL 8
69151-1
te connectivity / amp
DAHT PIDG S EXP 22-16 Crimpers DAHT PIDG S EXP 22-16 TOOL HAND PIDG S EXP 16-22AWG DAHT Pidg S Exp 22-16 TE Connectivity CERTI-CRIMP 系列 PIDG Butt Splices 压接工具 , 适用于22 → 16 AWG 线规格
59250
te connectivity / amp
Connector Removal Tool Crimpers T-HD HT PIDG 22-14 AWG CRIMP TOOL, PIDG, STRATO-THERM, PLASTI-GRIP TERMINALS T-HD HT, PIDG 22-14
47386-5
te connectivity / amp
General Hand Tool Used In The Aircraft And Military Industries Hand Tools HAND TOOL PIDG 22-16 HAND TOOL PIDG 16-26AWG
58433-3
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers TOOL W/DIE INS TERM TOOL CRIMP INSUL TERM W/DIE SET PRO-CRIMPER III hand crimping tool Connector Accessories Terminal Crimp Hand Tool CRIMP TOOL, PIDG AND PLASTI-GRIP TERMINALS Crimper;Ratchet;22-10AWG;PIDG,PLASTI-GRIP,PIDGFASTONTerminals;58423-1Die TE Connectivity Pro-Crimper III 系列 PIDG Splices/Terminals, Plasti-Grip Terminals 压接工具 PRO CR ASSY, RBY IS9252
314270-3
te connectivity / amp
Penumatic Crimoing Head Red Hand Tools 22-16 PIDG IS9586 PNEU HD PNEU HEAD 22-16AWG PIDG IS9586 Pneumatic crimping head, PIDG, 22-16 AWG Connector Accessories Terminal Head Red PNEUHD22-16PIDGIS9586
91964-2
te connectivity / amp
S.D.E.PREM.DIE ASSY 22-16 PIDG Punches & Dies S.D.E.PREM.DIE ASSY 22-16 PIDG
46282
TE Connectivity / AMP
Crimpers PNEU HD PIDG 69010 22-16 Hand Tools PNEU HD PIDG 69010 22-16 PNEU HEAD PIDG 69010 22-16AWG

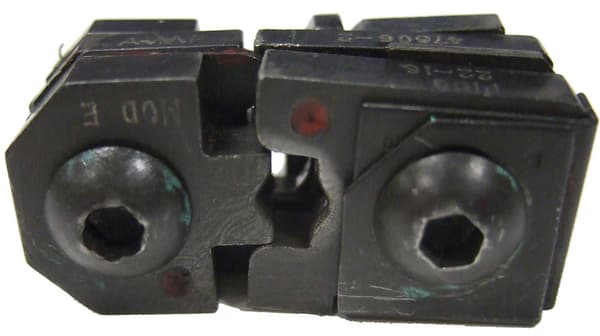

47806-2
