MSPM101CS104
| Manufacturer | |
| Description | Pushbutton Switches SWITCH PB SPST NO RED LUB SWITCH PUSH SPST-NO 0.1A 50V Switch,Pushbutton,PanelMount,1.0VAOpt Switch Push Button N.O. SPST Round Plunger 0.1A 50VDC 1VA Momentary Contact Wire Lug Panel Mount Loose Piece Switch Push Button N.O. SPST Round Plunger 0.1A 50VDC 1VA Momentary Contact Wire Lug Panel Mount Loose Piece Product Highlights:Switch - MechanicalNot TactileSingle Pole - Single Throw Configuration (Pole-Throw)Contact Rating = 1.0 VA optimum [100mA max., 50 VDC max.]Process Sealed Switch,Pushbutton;PanelMount;1.0VAOptimum;1000V(RMS)(Min.);WireLug MSPM101CS104 |
| Category |
Business
| Other Names | 1825539-4 | Part # Aliases | 1825539-4 |
| Product Category | Pushbutton Switches | Standard Package | 100 |
Compliance
| RoHS | Compliant | Part Status | 1825539-4 |
| ESD Protection | Without | ||
Electrical
| Circuit | SPST-NO | Operation | Momentary |
| Power - Rated | 1 VA | Voltage Rating | 50V |
| Number of Poles | 1 | Switch Function | Off-Mom |
| Number of Elements | Single | Voltage - Rated DC | 50 |
| Dielectric Strength | 1000VAC | Current Rating (Max) | 100mA (DC) |
| Switch Function/Rating | Momentary | Contact Rating (Current) | 100 mA |
| Capacitance Ratio Condition | Red | ||
Mechanical
| Width | 4.064 mm [ .16 in ] | Height | No |
| Sealed | Yes | Packaging | Bulk |
| Termination | SolderLugs | Thread Size | 1/4-40 UNS-2A |
| Contact Form | SPST | Actuator Type | Plunger for Cap |
| Mounting Type | Panel Mount, Rear | Terminal Type | Wire Lug |
| Actuator Color | Red | Bushing Thread | 1/4-40 |
| Contact Finish | Gold | Mounting Style | Panel |
| Actuation Force | 113.4 – 198.5 g [ 4 – 7 oz ] | Actuator Length | 4.06 mm [ .16 in ] |
| Insert Material | 铜合金 | Housing Material | Steel |
| Actuator Material | Polyamide | Termination Style | Solder Lug |
| Actuator Style/Size | Extended | Number of Positions | 1 |
| Color - Actuator/Cap | Red | Bushing, Grommet Type | Threaded |
| Mounting Hole Diameter | 0.25In. | Contact Layout, Typical | SPST-NO |
| Panel Cutout Dimensions | Circular - 6.35mm Dia | Material - Housing & Prism | Steel |
Product Info
| Type | Standard | Series | MSPM |
| Features | Audible Click | Function | NO, Momentary |
| Switch Type | 按钮 | Illumination | No |
| Product Type | 开关 | Configuration | Single Pole - Single Throw |
| Electrical Life | 50,000 Cycles | Number of Gangs | No |
| Other Specifications | 可听见 | ||
Environmental
| Ingress Protection | No | Temperature Rating | Standard |
| Operating Temperature | -10°C ~ 80°C | ||
Documents & Media
Similar Parts
G12C
TE Connectivity / Alcoswitch
Switch Accessories BUTTON GUARD CHROME GUARD PB 1/4-40 CHROME BRASS Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactilePackaging Method = Loose PieceNot IlluminatedAccessory Type = Guard SWITCH GUARD Guard;Guard;ChromedBrass;Plain;1/4to40;C12Cap,C22Cap G12C=BUTTON GUARD CHROME
G12A
TE Connectivity / Alcoswitch
Switch Accessories CLR ALUM BTN GRD PLN GUARD PB 1/4-40 CLEAR ALUMINUM Guard,Guard,Clear,Plain,1/4to40,C12,C22 Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactilePackaging Method = Loose PieceNot IlluminatedAccessory Type = Guard SWITCH GUARD Guard;Guard;Clear;Plain;1/4to40;C12Cap,C22Cap G12A=BUTTON GUARD ALUM
C23004
TE Connectivity / Alcoswitch

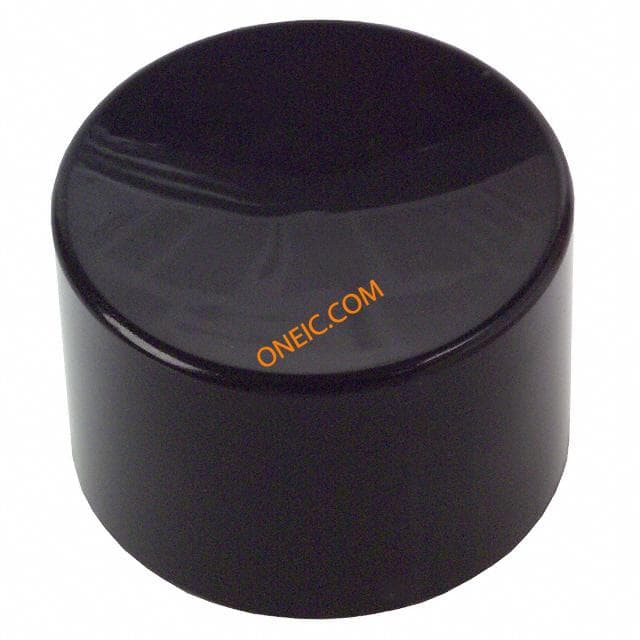

Switch Accessories RND SNAP FIT PUSH BT BLACK CAP CAP PUSHBUTTON ROUND BLACK CapforPushbuttonSwitch,Black Switch Access Push Button Switch Boot Seal SWITCH CAP CapforPushbuttonSwitch,Black,FitsMPS/MSPM/MPE/MPA6Series
