MSPM101B004
| Manufacturer | |
| Description | Pushbutton Switches SPST NC BLK PIN TERM SWITCH PUSH SPST-NC 0.1A 50V MSPM101B004 |
| Category |
Business
| Part # Aliases | 1825538-1 | Product Category | Pushbutton Switches |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | ESD Protection | Without |
Electrical
| Circuit | SPST-NC | Power - Rated | 1 VA |
| Voltage Rating | 50V | Switch Function | On-Mom |
| Number of Elements | Single | Voltage - Rated DC | 50 |
| Current Rating (Max) | 100mA (DC) | Capacitance Ratio Condition | Black |
Mechanical
| Height | No | Sealed | Yes |
| Diameter | 9.96 mm [ .392 in ] | Packaging | Bulk |
| Thread Size | 1/4-40 UNS-2A | Contact Form | SPST |
| Actuator Type | Round, Button | Mounting Type | Panel Mount, Rear |
| Bushing Thread | 1/4-40 | Contact Finish | Gold |
| Mounting Style | Through Hole | Actuation Force | 113.4 – 198.5 g [ 4 – 7 oz ] |
| Actuator Length | 8.02 mm [ .316 in ] | Insert Material | 铜合金 |
| Housing Material | Steel | Actuator Material | Polyamide |
| Termination Style | PC Pin | Actuator Style/Size | Extended |
| Color - Actuator/Cap | Black | Bushing, Grommet Type | Threaded |
| Panel Cutout Dimensions | Circular - 6.35mm Dia | Material - Housing & Prism | Steel |
Product Info
| Note | 提供黑色帽。 | Type | Standard |
| Series | MSPM | Function | NC, Momentary |
| Switch Type | 按钮 | Illumination | No |
| Product Type | 开关 | Configuration | Single Pole - Single Throw |
| Electrical Life | 50,000 Cycles | Number of Gangs | No |
| Other Specifications | 柔软 | ||
Environmental
| Ingress Protection | No | Temperature Rating | Standard |
| Operating Temperature | -10°C ~ 80°C | ||
Documents & Media
Similar Parts
1825068-2
te connectivity / amp
Switch Access Push Button Switch Boot Seal Toggle, Pushbutton and Rocker Switches Switch Access Push Button Switch Boot Seal Search Keywords:Switches, Knobs, PCB, CAP PUSHBUTTON ROUND RED Green Series, Red Pushbutton Cap C22204 CAP RED
G12C
TE Connectivity / Alcoswitch
Switch Accessories BUTTON GUARD CHROME GUARD PB 1/4-40 CHROME BRASS Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactilePackaging Method = Loose PieceNot IlluminatedAccessory Type = Guard SWITCH GUARD Guard;Guard;ChromedBrass;Plain;1/4to40;C12Cap,C22Cap G12C=BUTTON GUARD CHROME
1825610-1
te connectivity / amp
BP1440004=BOOT, PUSHBUTTON Toggle, Pushbutton and Rocker Switches BP1440004=Boot, Pushbutton BP1440004=Boot, Pushbutton Search Keywords:Switches, Knobs, PCB, BOOTSEAL MPA3/MPS/MSPM TP BLACK Accessory Black 1/4-40 Thread Size Pushbutton Switch Boot Seal
1825069-2
te connectivity / amp

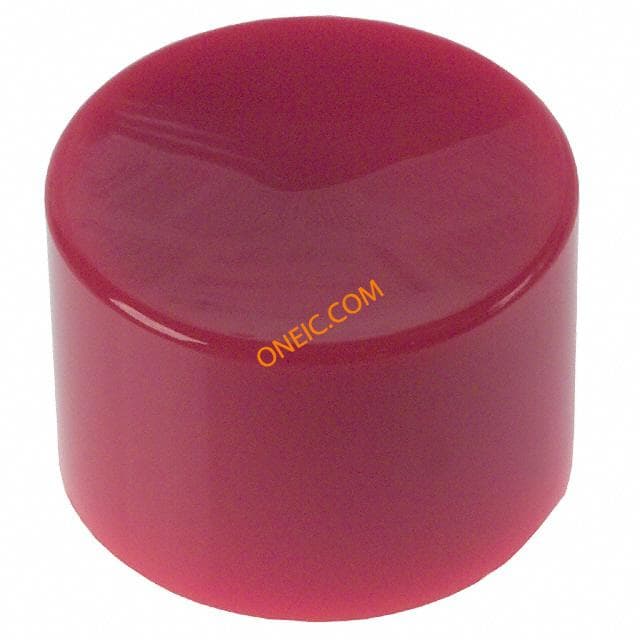

Switch Access Push Button Switch Round Cap C23204 CAP PUSHBUTTON ROUND RED Green Series, Red Pushbutton Cap
1825617-2
te connectivity / amp
Switch Access Push Button Switch Boot Seal Toggle, Pushbutton and Rocker Switches Switch Access Push Button Switch Boot Seal Search Keywords:Switches, Knobs, PCB, BTSEAL BLK 1/4-40 MSPM/P3/A3/TP BP201004=Boot,Pushbutton
1825069-1
te connectivity / amp
Switch Access Push Button Switch Boot Seal Toggle, Pushbutton and Rocker Switches Switch Access Push Button Switch Boot Seal Search Keywords:Switches, Knobs, PCB, CAP PUSHBUTTON ROUND BLACK C23004 CAP BLACK
G12A
TE Connectivity / Alcoswitch
Switch Accessories CLR ALUM BTN GRD PLN GUARD PB 1/4-40 CLEAR ALUMINUM Guard,Guard,Clear,Plain,1/4to40,C12,C22 Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactilePackaging Method = Loose PieceNot IlluminatedAccessory Type = Guard SWITCH GUARD Guard;Guard;Clear;Plain;1/4to40;C12Cap,C22Cap G12A=BUTTON GUARD ALUM
G13KB
TE Connectivity / Alcoswitch
Switch Accessories BUTTON GUARD BLACK KNURLED GUARD PB KNURLED BLACK ALUMINUM Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactilePackaging Method = Loose PieceNot IlluminatedAccessory Type = Guard SwitchGuard;Guard;BlackAluminum;Knurled;1/4-40UNC-2B;CapC13,C23 G13KB=BUTTON GUARD KNURL BLACK
G13C
TE Connectivity / Alcoswitch
Switch Accessories BUTTON GUARD CHROME GUARD PB 1/4-40 CHROME BRASS Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactilePackaging Method = Loose PieceNot IlluminatedAccessory Type = Guard G13C=BUTTON GUARD CHROME
G12B
TE Connectivity / Alcoswitch
Switch Accessories BLK ALUM BTN GRD PLN GUARD PB 1/4-40 BLACK ALUMINUM Guard,Guard,Black,Plain,1/4to40,C12,C22 Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactileLoose PieceNot IlluminatedAccessory Type = Guard SWITCH GUARD Guard;Guard;Black;Plain;1/4to40;C12Cap,C22Cap 拨动开关护罩, 使用于C12 盖、C22 盖 G12B=BUTTON GUARD BLACK
1825068-1
te connectivity / amp
C22004 CAP BLACK Toggle, Pushbutton and Rocker Switches Pushbutton Switch Boot Seal Black Pushbutton Switch Boot Seal Black Search Keywords:Switches, Knobs, PCB, CAP PUSHBUTTON ROUND BLACK Green Series, Black Pushbutton Cap
G12KA
TE Connectivity / Alcoswitch
Switch Accessories CLR AL BTN GRD KNRLD GUARD PB KNURL CLEAR ALUMINUM Guard,Guard,Clear,Knurled,1/4-40,C12,C22 Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactilePackaging Method = Loose PieceNot IlluminatedAccessory Type = Guard SWITCH GUARD Guard;Guard;Clear;Knurled;1/4to40;C12Cap,C22Cap G12KA=BUTTON GUARD KNURL ALUM
1825068-5
te connectivity / amp

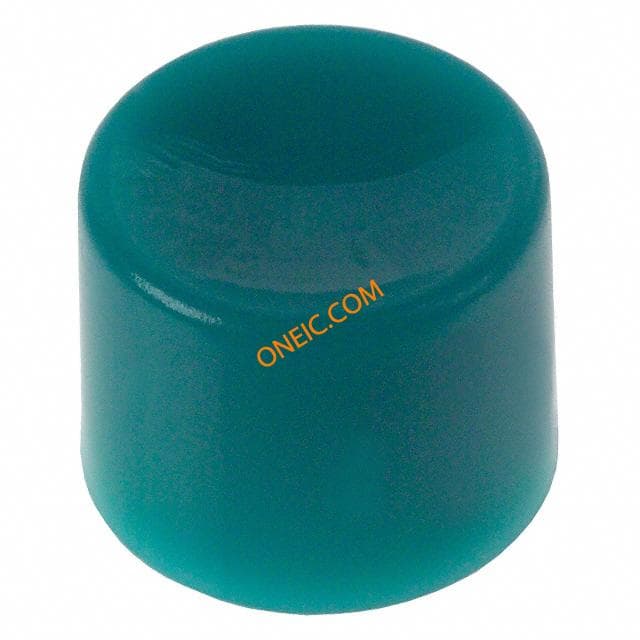

C22504 CAP GREEN C22504 CAP PUSHBUTTON ROUND GREEN
1825068-7
te connectivity / amp

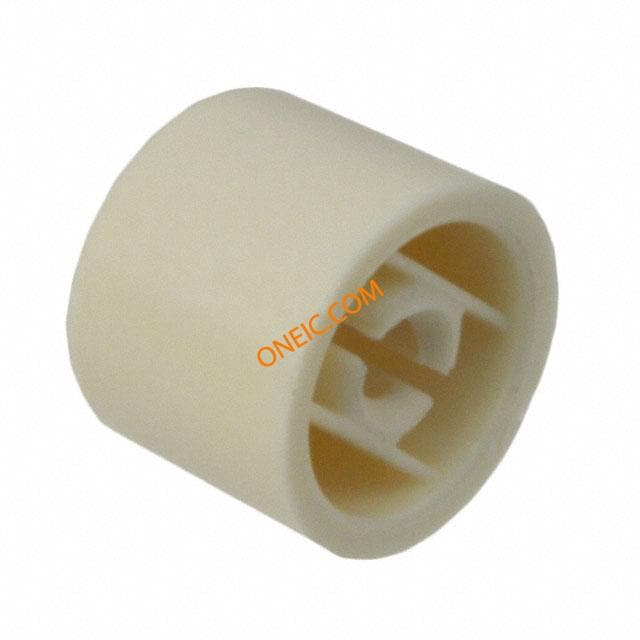

C22904 CAP WHITE .39 DIA. C22904 CAP PUSHBUTTON ROUND WHITE Switch Access Push Button Switch Round Cap
