ADP0404
| Manufacturer | |
| Description | DIP Switches / SIP Switches SPST 4P PIANO T/H DIP SWITCH SWITCH DIP PIANO 4POS 24V DIP Switch 4P PCB Piano, 0.1 A @ 0.5 V dc, 4-Way, -30 to +85°C Switch DIP OFF ON SPST 4 Piano 0.1A 24VDC 0.4VA PC Pins 2.54mm Thru-Hole Switch DIP OFF ON SPST 4 Piano 0.1A 24VDC 0.4VA PC Pins 2.54mm Thru-Hole Product Highlights:DIP SwitchPCB Mount Style = Through HoleSingle Pole - Single Throw Configuration (Pole-Throw)Actuator Style = Piano (Side Actuated)Not Sealed SWITCH, DIL, PIANO, 4WAY Switch,DIP,Piano,4Position,SPST,PCD,Thru-Hole |
| Category |
Business
| Part # Aliases | 1571999-6 | Product Category | DIP Switches / SIP Switches |
| Standard Package | 35 | Factory Pack Quantity | 35 |
Compliance
| RoHS | Compliant | Tariff No | 85365019 |
| Part Status | 1571999-6 | Material Flammability Rating | :UL94V-4 |
Electrical
| Circuit | SPST | Voltage Rating | 24 V |
| Contact Resistance | :50mohm | Dielectric Strength | :500V |
| Current Rating (Max) | 100 mA | Current - Max/Contact | :100mA |
| Insulation Resistance | :1000Mohm | Contact Rating (Current) | 0.1 A @ 0.5 V dc |
| Contact Rating @ Voltage | 0.1A @ 24VDC | ||
Mechanical
| Pitch | :2.54mm | Width | :7.5mm |
| Length | :5.25mm | Weight | 0.058 |
| Orientation | Side Actuated | Contact Form | SPST |
| Lead Spacing | :2.54mm | Pitch - Post | 2.54 mm |
| Actuator Type | Piano | Mounting Type | Through Hole |
| Terminal Type | :THT | Actuator Level | Raised |
| Contact Finish | Gold over Nickel | Package / Case | DIP |
| Contact Material | Gold Over Nickel Plated Copper Alloy | Pin Hole Diameter | :DIL |
| Termination Style | Through Hole | Actuator Style/Size | :Piano Key |
| Number of Positions | 4 | Switch Actuation Level | :Piano Key |
| Contact Layout, Typical | 4P | 1st Connector Mounting Type | :Through Hole |
Product Info
| Type | DIP | Series | ADP/PA |
| Washable | Yes | Switch Type | DIP |
Environmental
| Switching Cycles | :1000 | Operating Temperature | +85°C |
Documents & Media
Similar Parts

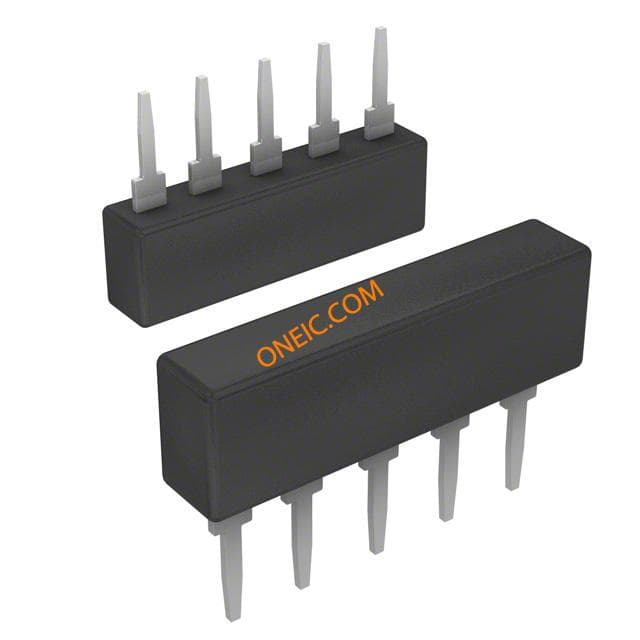

4605X-101-102LF
