ZWS100AF36/J

Manufacturer	TDK-Lambda Corporation
Description	AC/DC Power Supply Single-OUT 36V 2.8A 100.8W 13-Pin AC/DC CONVERTER 36V 2.8A 100W Switching Power Supplies 100W 36V 2.8A
Category	Power SolutionsAC DC ConvertersAC-DC Converters - Single Output

对参数有疑问？问 AI 助手

Business

Product	Switching Supplies	Part # Aliases	ZWS100AF36/J
Standard Package	Bulk

Compliance

RoHS

Lead free / RoHS Compliant

Approval Agency

CE, CSA, EN, UL

Electrical

Frequency	47 to 63 Hz	Efficiency	82 %
Power - Max	100.8 W	Output Power	100 W
Power (Watts)	100W	Voltage Rating	85 to 265 V
Line Regulation	144mV	Load Regulation	200mV
Current - Output	2.8 A	Number of Outputs	1
Power Supply Type	Switching (Open Frame)	Power (Watts) - Max	101W
Voltage - Isolation	3kV (3000V)	Current Rating (Max)	1.4(Typ) A
Voltage - Input (Min)	36V	Current - Output / Channel	2.8 A

Mechanical

Width	3.38 in	Height	0.5 in
Length	3.26 in	Mounting Type	Chassis Mount
Panel Mount Type	Open Frame	Size / Dimension	8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm)

Product Info

Type	Regulated	Features	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Applications	Commercial

Environmental

Operating Temperature

-10 to 70 °C

Documents & Media

PDF Document

ZWS-AF Series

PDF Document

zwsaf.pdf

Similar Parts

XHP-2

JST Sales America Inc

CONN HOUSING 2.5MM 2POS Crimp housing,XH,2.5mm pitch,2w Conn Housing PL 2 POS 2.5mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:2; w/o terminals; 2.5mm; for cable Crimp housing 2.5 mm Poles 2 XH, XHP-2, JST JST XHP 系列 1 行 2.5mm 节距 2 路直母电缆安装 PCB 连接器外壳

$0.0614

Details

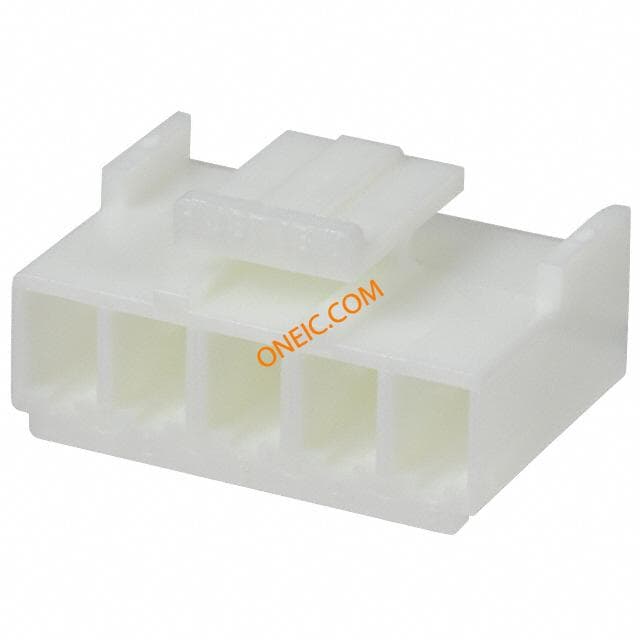

VHR-5N
