ZWS100AF36/A
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 36V 2.8A 100.8W 13-Pin AC/DC CONVERTER 36V 2.8A 100W Switching Power Supplies 100W 36V 2.8A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Part # Aliases | ZWS100AF36/A |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency | CE, CSA, EN, UL |
Electrical
| Frequency | 47 to 63 Hz | Efficiency | 82 % |
| Power - Max | 100.8 W | Output Power | 100 W |
| Power (Watts) | 100W | Voltage Rating | 85 to 265 V |
| Line Regulation | 144mV | Load Regulation | 200mV |
| Current - Output | 2.8 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 101W |
| Voltage - Isolation | 3kV (3000V) | Current Rating (Max) | 1.4(Typ) A |
| Voltage - Input (Min) | 36V | Current - Output / Channel | 2.8 A |
Mechanical
| Width | 1.5 in | Height | 0.33 in |
| Length | 1.1 in | Mounting Type | Chassis Mount |
| Panel Mount Type | Open Frame | Size / Dimension | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) |
Product Info
| Type | Regulated | Features | Adjustable Output, PFC, Universal Input |
| Applications | Commercial | ||
Environmental
| Operating Temperature | -10 to 70 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
0009501061
Molex
Conn Housing F 6 POS 3.96mm Crimp ST Cable Mount Bag CONN RCPT HOUSING 6POS 3.96MM RECEPTACLE, 6WAY Plug; wire-board; female; PIN:6; w/o terminals; 3.96mm; for cable
$1.6912
Details
XHP-2
JST Sales America Inc
CONN HOUSING 2.5MM 2POS Crimp housing,XH,2.5mm pitch,2w Conn Housing PL 2 POS 2.5mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:2; w/o terminals; 2.5mm; for cable Crimp housing 2.5 mm Poles 2 XH, XHP-2, JST JST XHP 系列 1 行 2.5mm 节距 2 路 直 母 电缆安装 PCB 连接器外壳
$0.0614
Details

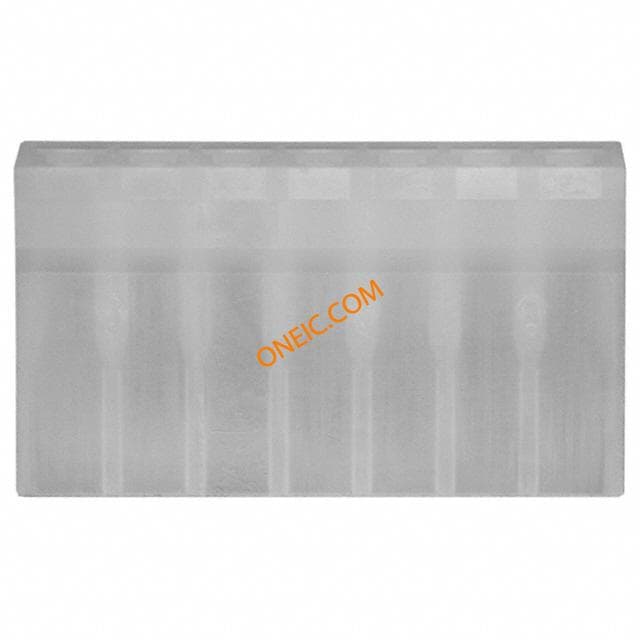

09-50-1071
