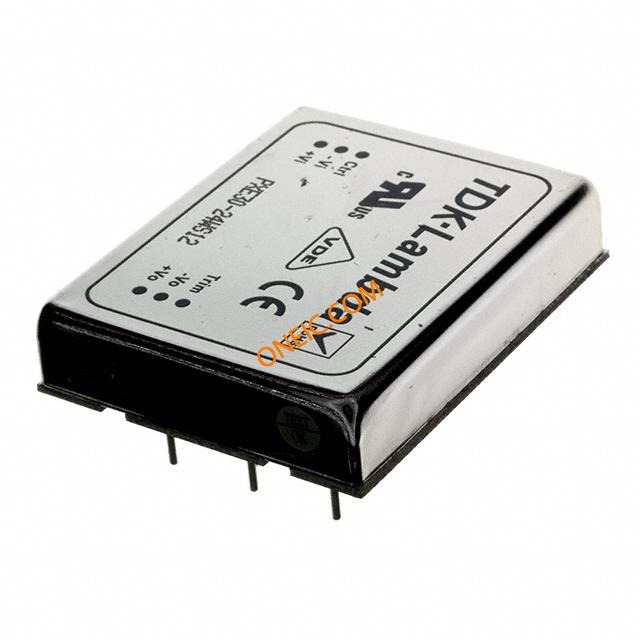

PXE3024WS12
| Manufacturer | |
| Description | Module DC-DC 1-OUT 12V 2.5A 30W 6-Pin DC-DC CONVERTERS 12V 30W 2.5A DC/DC Converters 30W 12V 2.5A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Isolation | Isolated | Efficiency | 87% |
| Output Type | DC/DC Converter | Power - Max | 30W |
| Output Power | 30 W | Voltage Rating | 12 V |
| Current - Output | 2.5 A | Number of Outputs | 1 |
| Power (Watts) - Max | 30W | Switching Regulator | Yes |
| Voltage - Isolation | 1.6kV (1600V) | Voltage - Input (Min) | 12V |
| Current - Output / Channel | 2.5 A | ||
Mechanical
| Width | 1.6 in | Height | 0.4 in |
| Length | 2 in | Weight | 1.693150 oz |
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Style | PCB | Package / Case | 8-DIP Module (6 Leads) |
| Length - Overall | 50.8 | Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) |
| Number of Positions | 6 | Shell Size - Insert | 10.2 |
Product Info
| Type | Step Down | Series | PXE |
| Features | Remote On/Off, OCP, OVP, SCP | Printed Circuit Board | 6 |
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
