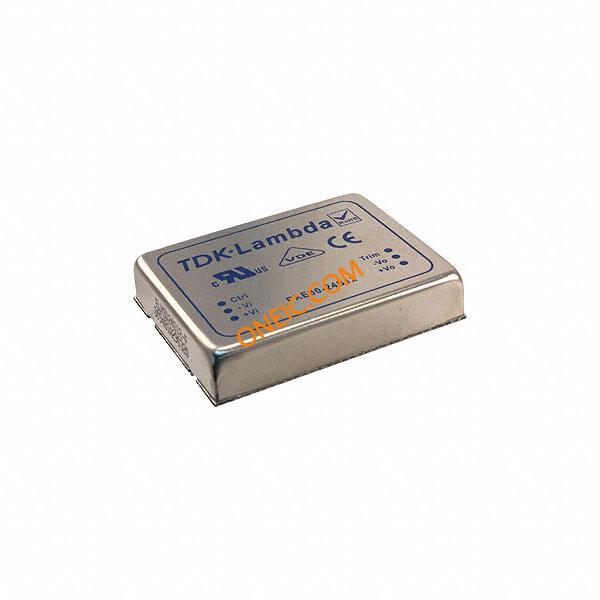

PXE3024S12
| Manufacturer | |
| Description | Module DC-DC 1-OUT 12V 2.5A 30W 6-Pin DC-DC CONVERTERS 12V 30W 2.5A DC/DC Converters 30W 12V 2.5A DC/DCCONVERTER,30WATT,12V@2.5AMPS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Output | 12VDC@2.5A | Isolation | Isolated |
| Operation | Switching | Efficiency | 89% |
| Output Type | DC/DC Converter | Power - Max | 30W |
| Output Power | 30 W | Power - Output | 30W |
| Voltage Rating | 12 V | Current - Output | 2.5 A |
| Number of Outputs | 1 | Power (Watts) - Max | 30W |
| Switching Regulator | Yes | Voltage - Isolation | 1.6kV (1600V) |
| Voltage - Input (Min) | 12V | Current - Output / Channel | 2.5 A |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Depth | 40.6 mm | Width | 1.6 in |
| Height | 0.4 in | Length | 2 in |
| Weight | 1.693150 oz | Packaging | Bulk |
| Mounting Type | Through Hole | Mounting Style | PCB |
| Package / Case | 8-DIP Module (6 Leads) | Length - Overall | 50.8 mm |
| Primary Material | DC-DC | Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) |
| Number of Positions | 6 | Shell Size - Insert | 10.2 |
Product Info
| Type | Step Down | Series | PXE |
| DELETED | Compliant | Features | Remote On/Off, OCP, OVP, SCP |
| Manufacturer | PXESeries | Configuration | Enclosed |
| Printed Circuit Board | 6 | ||
Environmental
| Operating Temperature | -40°C ~ 100°C | Operating Temperature - Junction | 100C |
