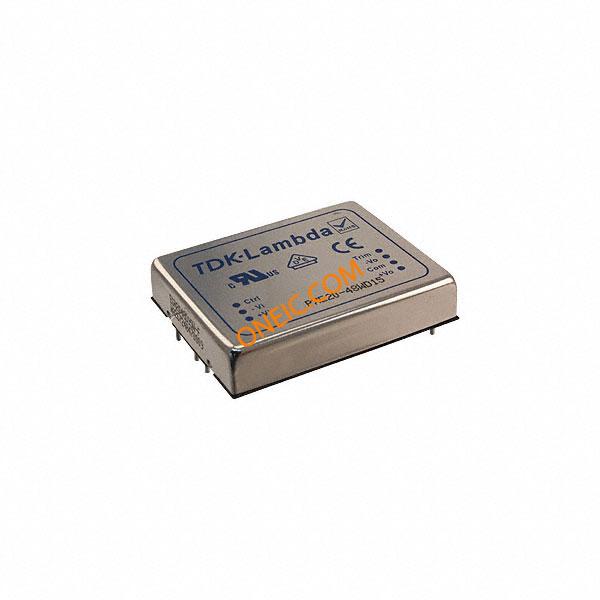

PXE2048WD15
| Manufacturer | |
| Description | Module DC-DC 2-OUT 15V/-15V 0.666A/-0.666A 20W 7-Pin DC-DC CONVRT +/-15V 20W +/-.6 DC/DC Converters 20W 18-75Vin +/-15Vout +/-0.666A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Efficiency | 84% | Power - Max | 20W |
| Output Power | 20 W | Voltage Rating | 15|-15 V |
| Current - Output | 0.666|-0.666 A | Number of Outputs | 2 |
| Power (Watts) - Max | 20W | Switching Regulator | Yes |
| Voltage - Isolation | 1.6kV (1600V) | Voltage - Input (Min) | 15V |
| Current - Output / Channel | 0.666 A | ||
Mechanical
| Width | 1.6 in | Height | 0.4 in |
| Length | 2 in | Weight | 1.693150 oz |
| Packaging | Bulk | Mounting Type | Through Hole |
| Package / Case | 8-DIP Module (7 Leads) | Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) |
Product Info
| Type | Step Down | Features | With Remote On/Off |
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
