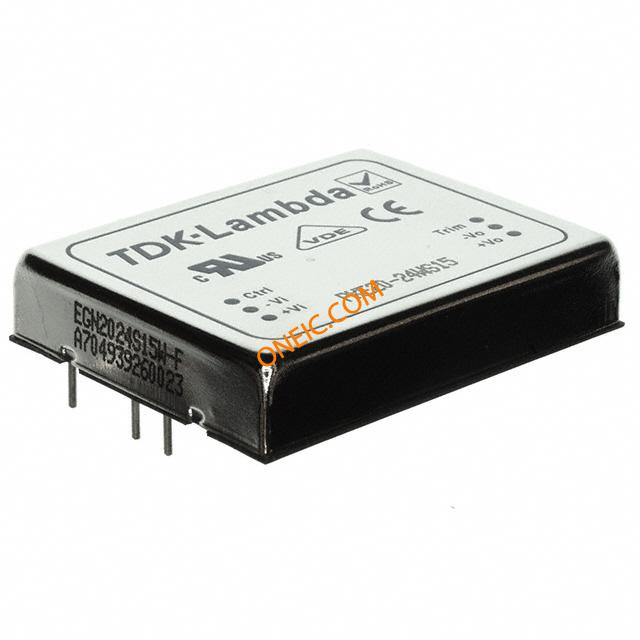

PXE2024WS15
| Manufacturer | |
| Description | Module DC-DC 1-OUT 15V 1.33A 20W 6-Pin DC-DC CONVERTERS 15V 20W 1.33A DC/DC Converters 20W 15V 1.33A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Efficiency | 81% | Output Type | DC/DC Converter |
| Power - Max | 20W | Output Power | 20 W |
| Voltage Rating | 15 V | Current - Output | 1.33 A |
| Number of Outputs | 1 | Power (Watts) - Max | 20W |
| Switching Regulator | Yes | Voltage - Isolation | 1.6kV (1600V) |
| Voltage - Input (Min) | 15V | Current - Output / Channel | 1.33 A |
Mechanical
| Width | 1.6 in | Height | 0.4 in |
| Length | 2 in | Weight | 1.693150 oz |
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Style | PCB | Package / Case | 8-DIP Module (6 Leads) |
| Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) | ||
Product Info
| Type | Step Down | Series | PXE |
| Features | With Remote On/Off | ||
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
