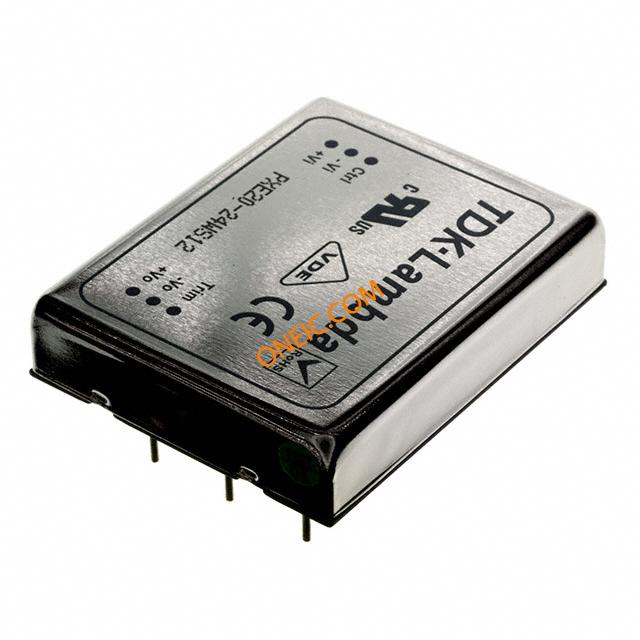

PXE2024WS12
| Manufacturer | |
| Description | Module DC-DC 1-OUT 12V 1.67A 20W 6-Pin DC/DC Converters 20W 12V 1.67A DC-DC CONVERTERS 12V 20W 1.67A DC/DCCONVERTER,20WATT,12V@1.67AMPS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Output | 12VDC@1.67A | Isolation | Isolated |
| Operation | Switching | Efficiency | 81% |
| Output Type | DC/DC Converter | Power - Max | 20W |
| Output Power | 20 W | Power - Output | 20W |
| Voltage Rating | 12 V | Current - Output | 1.67 A |
| Number of Outputs | 1 | Power (Watts) - Max | 20W |
| Switching Regulator | Yes | Voltage - Isolation | 1.6 kV |
| Voltage - Input (Min) | 9 V to 36 V | Current - Output / Channel | 1.67 A |
Mechanical
| Width | 1.6 in | Height | 0.4 in |
| Length | 2 in | Weight | 1.693150 oz |
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Style | PCB | Package / Case | 8-DIP Module (6 Leads) |
| Length - Overall | 50.8 | Primary Material | DC-DC |
| Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) | Number of Positions | 6 |
| Shell Size - Insert | 10.2 | ||
Product Info
| Type | Step Down | Series | PXE |
| Features | With Remote On/Off | Manufacturer | PXESeries |
| Configuration | Enclosed | Printed Circuit Board | 6 |
Environmental
| Mechanical Life | New At Mouser | Operating Temperature | - 40 C to + 100 C |
