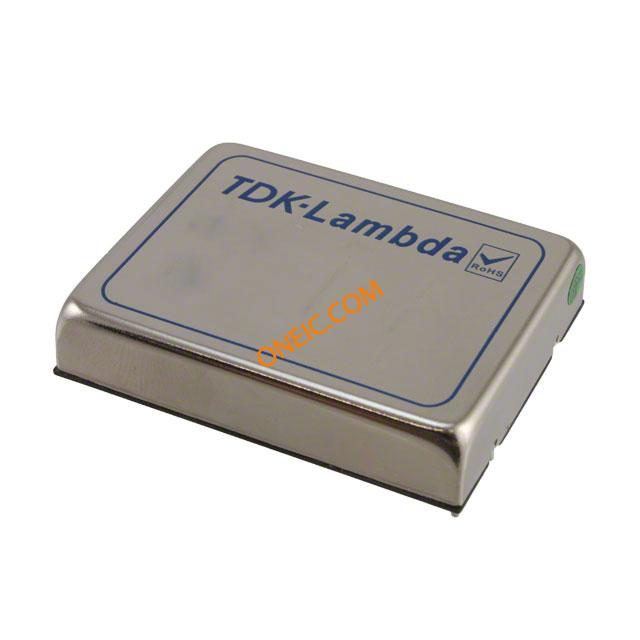

PXE2024WD05
| Manufacturer | |
| Description | Module DC-DC 2-OUT 5V/-5V 2A/-2A 20W 7-Pin DC-DC CONVRT +/-5V 20W+/-2.0A Isolated DC/DC Converters 20W 9-36Vin +/-5Vout +/-2A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Isolation | Isolated | Efficiency | 79% |
| Power - Max | 20W | Output Power | 20 W |
| Voltage Rating | 5|-5 V | Current - Output | 2|-2 A |
| Number of Outputs | 2 | Power (Watts) - Max | 20W |
| Switching Regulator | Yes | Voltage - Isolation | 1.6kV (1600V) |
| Voltage - Input (Min) | 5V | Current - Output / Channel | 2 A |
Mechanical
| Width | 1.6 in | Height | 0.4 in |
| Length | 2 in | Weight | 1.693150 oz |
| Packaging | Bulk | Mounting Type | Through Hole |
| Package / Case | 8-DIP Module (7 Leads) | Length - Overall | 50.8 |
| Size / Dimension | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) | Number of Positions | 7 |
| Shell Size - Insert | 10.2 | ||
Product Info
| Type | Step Down | Features | With Remote On/Off |
| Printed Circuit Board | 7 | ||
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
