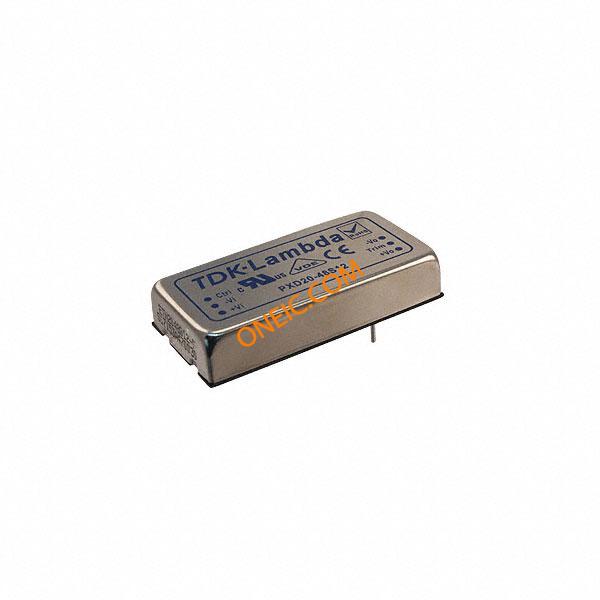

PXD2048S12
| Manufacturer | |
| Description | Module DC-DC 1-OUT 12V 1.67A 20W 6-Pin DC-DC CONVTR 12V 20W 1.67A DC/DC Converters 20W 12V 1.67A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Isolation | Isolated | Efficiency | 88% |
| Output Type | DC/DC Converter | Power - Max | 20W |
| Output Power | 20 W | Voltage Rating | 12 V |
| Current - Output | 1.67 A | Number of Outputs | 1 |
| Power (Watts) - Max | 20W | Voltage - Isolation | 1.6kV (1600V) |
| Voltage - Input (Min) | 12V | Current - Output / Channel | 1.67 A |
Mechanical
| Width | 1 in | Height | 0.4 in |
| Length | 2 in | Weight | 1 oz |
| Mounting Type | Through Hole | Mounting Style | PCB |
| Package / Case | 6-DIP Module | Length - Overall | 50.8 |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 8.6mm) | Number of Positions | 6 |
| Shell Size - Insert | 10.2 | ||
Product Info
| Type | Step Down | Series | PXD |
| Features | Remote On/Off, OCP, OVP, SCP | Printed Circuit Board | 6 |
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
