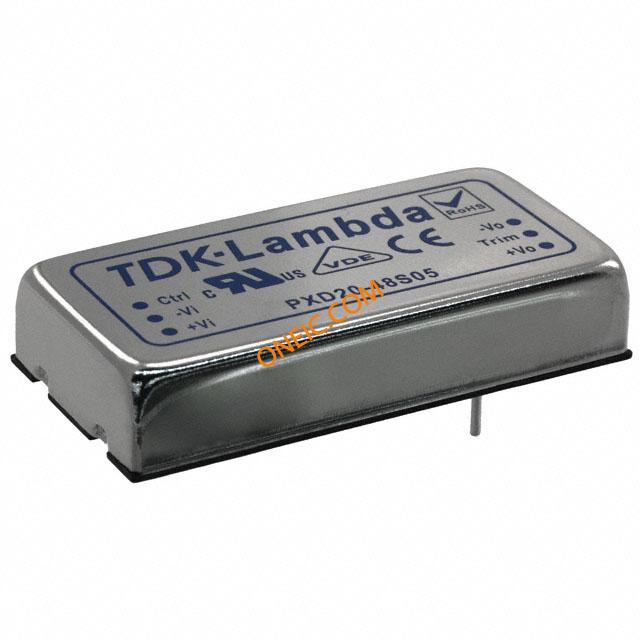

PXD2048S05
| Manufacturer | |
| Description | Module DC-DC 1-OUT 5V 4A 20W 6-Pin DC-DC CONVTR 5V 20W 4.0A DC/DC Converters 20W 5V 4A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Isolation | Isolated | Efficiency | 89% |
| Output Type | DC/DC Converter | Power - Max | 20W |
| Output Power | 20 W | Voltage Rating | 5 V |
| Current - Output | 4 A | Number of Outputs | 1 |
| Power (Watts) - Max | 20W | Voltage - Isolation | 1.6kV (1600V) |
| Voltage - Input (Min) | 5V | Current - Output / Channel | 4 A |
Mechanical
| Depth | 25.4 mm | Width | 1 in |
| Height | 0.4 in | Length | 2 in |
| Weight | 1 oz | Mounting Type | Through Hole |
| Mounting Style | PCB | Package / Case | 6-DIP Module |
| Length - Overall | 50.8 mm | Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 8.6mm) |
| Number of Positions | 6 | Shell Size - Insert | 10.2 |
Product Info
| Type | Step Down | Series | PXD |
| DELETED | Compliant | Features | Remote On/Off, OCP, OVP, SCP |
| Printed Circuit Board | 6 | ||
Environmental
| Operating Temperature | -40°C ~ 70°C | Operating Temperature - Junction | 100C |
