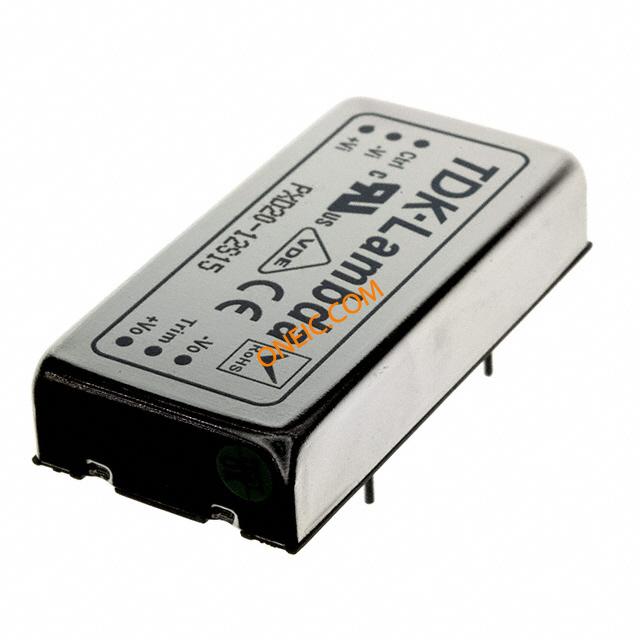

PXD2012S15
| Manufacturer | |
| Description | Module DC-DC 1-OUT 15V 1.33A 20W 6-Pin DC-DC CONVTR 15V 20W 1.33A Isolated DC/DC Converters 20W 15V 1.33A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Efficiency | 85% | Power - Max | 20W |
| Output Power | 20 W | Voltage Rating | 15 V |
| Current - Output | 1.33 A | Number of Outputs | 1 |
| Power (Watts) - Max | 20W | Voltage - Isolation | 1.6kV (1600V) |
| Voltage - Input (Min) | 15V | Current - Output / Channel | 1.33 A |
Mechanical
| Width | 1 in | Height | 0.4 in |
| Length | 2 in | Weight | 1 oz |
| Mounting Type | Through Hole | Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 8.6mm) | ||
Product Info
| Type | Step Up | Features | Remote On/Off, OCP, OVP, SCP |
Environmental
| Operating Temperature | -40°C ~ 70°C | ||
