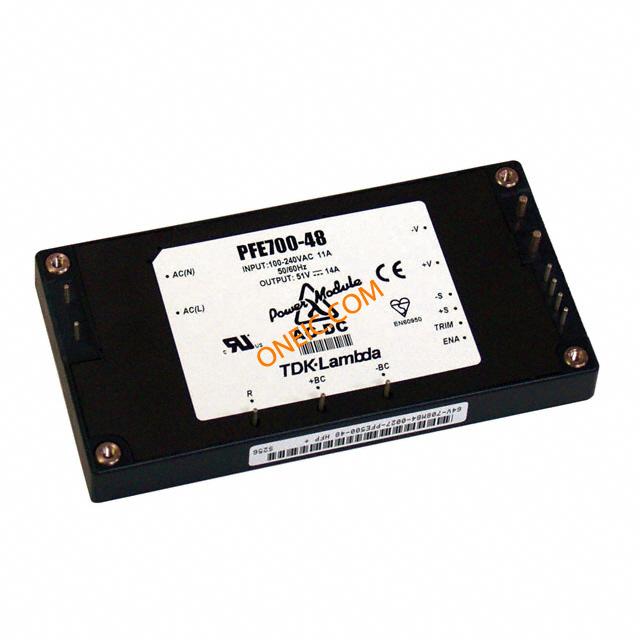

PFE700S-48
| Manufacturer | |
| Description | Linear and Switching Power Supplies 714W 51V 15A M3 tapped mounting AC/DC Power Supply Single-OUT 51V 14A 714W 8-Pin AC/DC CONVERTER 51V 14A 700W PowerSupply;AC-DC;51V@14A;85-265VIn;Enclosed;PanelMnt;Telecom;PFC;PFESeries |
| Category |
Business
| Product | Switching Supplies | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CE, CSA, EN, UL | ||
Electrical
| Output | 51VDC@14A | Frequency | 63 Hz |
| Operation | PFC | Efficiency | 89% |
| Power - Max | 714 | Output Power | 714 W |
| Power (Watts) | 700W | Power - Output | 714W |
| Voltage Rating | 265 VAC | Power - Cooling | 714 W |
| Current - Output | 51 VDC @ 14A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 714W |
| Voltage - Isolation | 3000VAC | Voltage - Input (Min) | 51V |
| Current - Output / Channel | 15 A | ||
Mechanical
| Width | 61 mm | Height | 12.7 mm |
| Length | 116.8 mm | Weight | 8.818490 oz |
| Mounting Type | Through Hole | Mounting Style | Panel |
| Adjustment Range | None | Length - Overall | 116.8 |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | Number of Positions | 8 |
| Shell Size - Insert | 12.7 | ||
Product Info
| Type | Standard Product | Style | Encapsulated |
| Series | PFE700 | Features | Parallelable |
| Application | Commercial | Applications | Commercial |
| Manufacturer | PFESeries | Configuration | Enclosed |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
