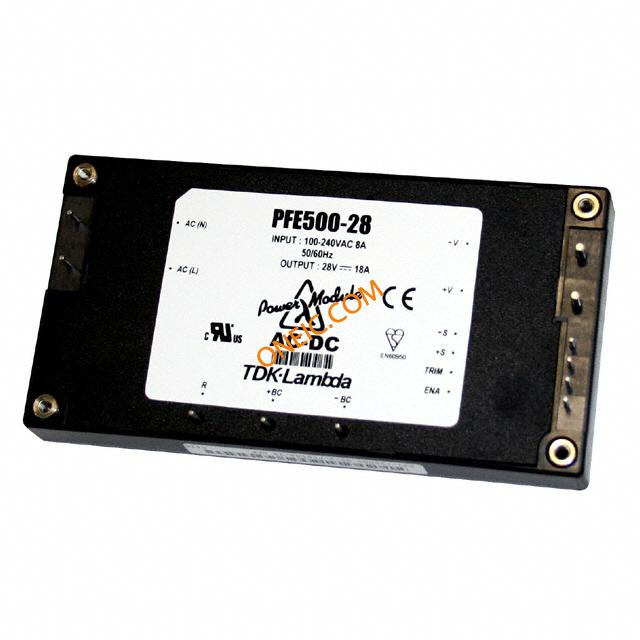

PFE500S-28
| Manufacturer | |
| Description | Linear and Switching Power Supplies 504W 28V 18A M3 tapped mounting AC/DC Power Supply Single-OUT 28V 18A 504W 8-Pin AC/DC CONVERTER 28V 18A 500W SMPSU,Encapsulated,PCB mount,28Vdc,504W PowerSupply;AC-DC;28V@18A;85-265VIn;Enclosed;PanelMnt;Telecom;PFC;PFESeries |
| Category |
Business
| Product | Switching Supplies | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CE, CSA, EN, UL | ||
Electrical
| Noise | ±1% | Output | 28VDC@18A |
| Frequency | 63 Hz | Operation | PFC |
| Efficiency | 86% | Power - Max | 504 |
| Output Power | 504 W | Power (Watts) | 500W |
| Power - Rated | 504W | Power - Output | 504W |
| Voltage Rating | 85 → 265V ac | Line Regulation | 56mV |
| Load Regulation | 56mV | Power - Cooling | 504 W |
| Current - Output | 28 VDC @ 18A | Output Isolation | 56mV |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 504W | Voltage - Isolation | 3000VAC |
| Voltage - Input (Min) | 28V | Current - Output / Channel | 18 A |
Mechanical
| Depth | 12.7mm | Width | 61mm |
| Height | 12.7 mm | Length | 116.8mm |
| Weight | 250g | Mounting Type | Through Hole |
| Mounting Style | Panel | Package Cooled | Encapsulated |
| Adjustment Range | 22.4-33.6V | Length - Overall | 116.8 |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | Number of Positions | 8 |
| Shell Size - Insert | 12.7 | ||
Product Info
| Type | Standard Product | Style | Encapsulated |
| Series | PFE500 | Features | Parallelable |
| Application | Commercial | Applications | Commercial |
| Manufacturer | PFESeries | Configuration | Enclosed |
| Printed Circuit Board | 8 | ||
Environmental
| Operate Time | 1914080h | Operating Temperature | -40°C ~ 100°C |
| Maximum Temperature Limit | +100°C | ||
