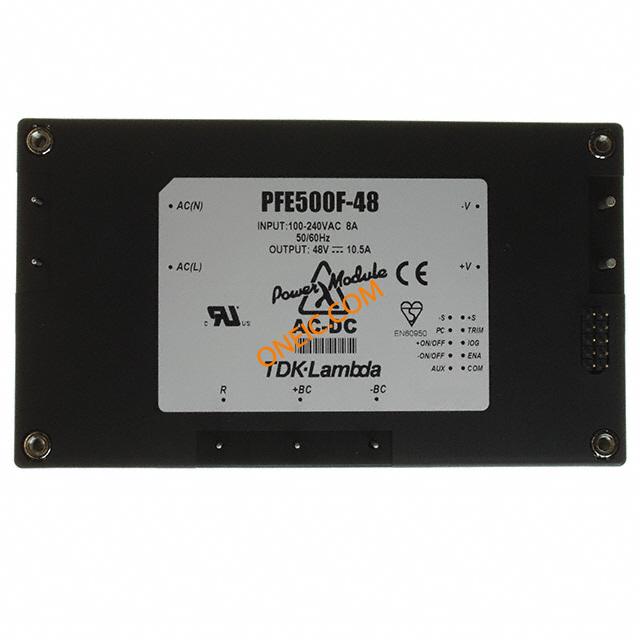

PFE500F48
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 48V 10.5A 504W 8-Pin AC/DC CONVERTER 48V 10.5A 500W Switching Power Supplies 504W 48V 10.5A |
| Category |
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CE, CSA, EN, UL | ||
Electrical
| Frequency | 47 to 63 Hz | Efficiency | 86(Typ) % |
| Power - Max | 504 W | Output Power | 504 W |
| Power (Watts) | 500W | Voltage Rating | 85 to 265 V |
| Line Regulation | 96mV | Load Regulation | 96mV |
| Power - Cooling | 504 W | Current - Output | 10.5 A |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 504W | Voltage - Isolation | 3000VAC |
| Current Rating (Max) | 6.8 A | Voltage - Input (Min) | 48V |
| Current - Output / Channel | 10.5 A | ||
Mechanical
| Width | 70 mm | Height | 12.7 mm |
| Length | 122 mm | Weight | 10.582189 oz |
| Mounting Type | Through Hole | Mounting Style | Panel |
| Length - Overall | 116.8 | Panel Mount Type | Enclosed |
| Size / Dimension | 4.80" L x 2.76" W x 0.50" H (122.0mm x 70.0mm x 12.7mm) | Number of Positions | 8 |
| Shell Size - Insert | 12.7 | ||
Product Info
| Type | Standard Product | Style | Encapsulated |
| Series | PFE300-1000 | Application | Commercial |
| Applications | Commercial | Printed Circuit Board | 8 |
Environmental
| Operating Temperature | -40 to 100 °C | ||
