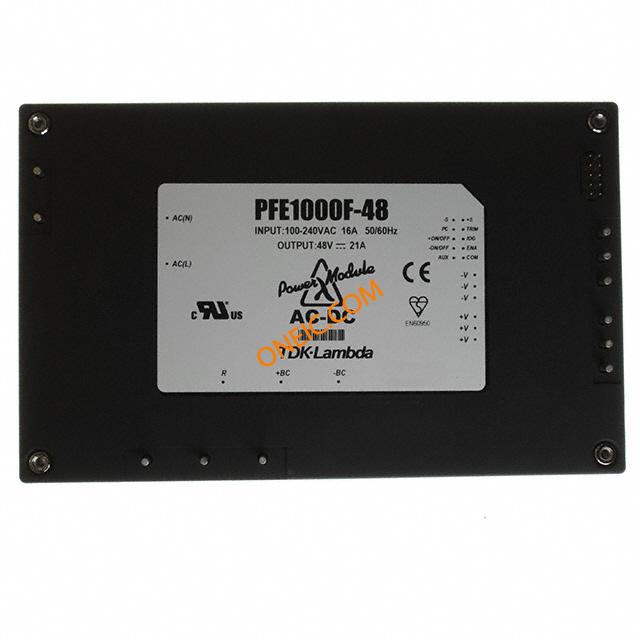

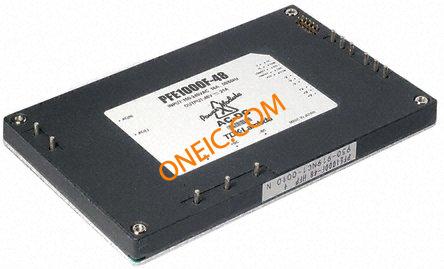

PFE1000F-48
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 48V 21A 1.008KW 8-Pin AC/DC CONVERTER 48V 21A 1000W Power Supply,Encapsulated,PCB,48V 1008W Linear and Switching Power Supplies 1008W 48V 21A M3 tapped mounting PSU, ENCAPSULATED, 48VDC, 1008W PowerSupply;AC-DC;48V@21A;85-265VIn;Enclosed;PanelMnt;Telecom;PFC;PFESeries |
| Category |
Business
| Product | Switching Supplies | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85044030 |
| Approval Agency | CE, CSA, EN, UL | ||
Electrical
| Noise | ±1% | Output | 48VDC@21A |
| Frequency | 47 to 63 Hz | Operation | PFC |
| Efficiency | 86(Typ) % | Output Type | :Adjustable, Fixed |
| Power - Max | 1008 W | Output Power | 1008 W |
| Power (Watts) | 1000W | Power - Rated | 1008W |
| Power - Output | 1008W | Voltage Rating | 85 to 265 V |
| Line Regulation | 96mV | Load Regulation | 96mV |
| Current - Output | 21 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 1008W |
| Voltage - Isolation | 3000VAC | Current Rating (Max) | 13.6 A |
| Voltage - Input (Min) | 48V | Voltage - Output (Max) | :57.6V |
| Current - Output / Channel | 21 A | Voltage - Output (Min/Fixed) | :38.4V |
Mechanical
| Depth | 13.4mm | Width | 100mm |
| Height | 0.4 in | Length | 160mm |
| Weight | 500g | Mounting Type | Through Hole |
| Mounting Style | PCB | Package Cooled | Encapsulated |
| Length - Overall | 116.8 | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 6.30" L x 3.94" W x 0.53" H (160.0mm x 100.0mm x 13.4mm) |
| Number of Positions | 8 | Shell Size - Insert | 12.7 |
Product Info
| Type | Standard Product | Style | Encapsulated |
| Series | PFE1000 | Features | Parallelable |
| Application | Commercial | Applications | Commercial |
| Manufacturer | PFESeries | Configuration | Enclosed |
| Printed Circuit Board | 8 | ||
Environmental
| Operate Time | 1645413h | Operating Temperature | -40 to 85 °C |
| Maximum Temperature Limit | +85°C | ||
